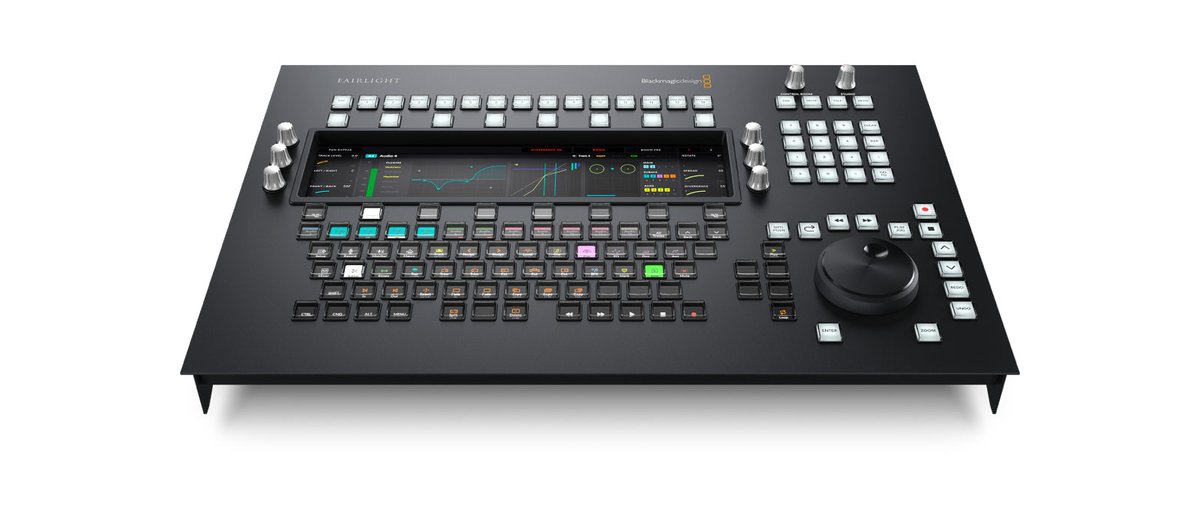

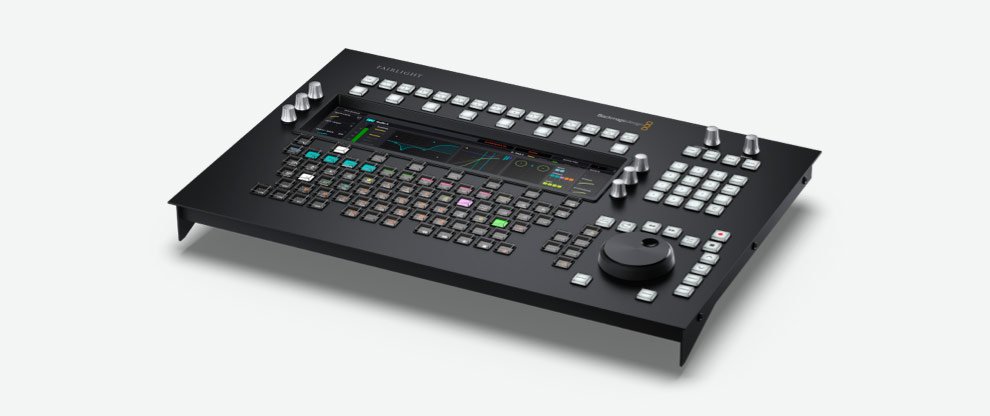

Blackmagic Fairlight Console Audio Editor

The Fairlight Console Audio Editor is the transport and editing bucket of a modular Fairlight console. It carries the jog and shuttle wheel plus the edit and navigation keys, so a dubbing mixer can move around a timeline and trim without reaching for a keyboard.

Like every Fairlight console bucket it drops into a chassis bay and talks to the DaVinci Resolve system over 10/100/1000 BaseT Ethernet, with a USB Type-C port for configuration and software updates. Power is internal, 100 to 240V AC via IEC, drawing 20W at most.

Ethernet	Ethernet supports 10/100/1000 BaseT.
Updates and Configuration	1 x USB Type-C for software configuration and software updates.
Power Supply	Internal 100 - 240V AC 50/60Hz with IEC C14 mains input.
Power Usage	20W max.
Operating Temperature	0 deg to 40 deg C (32 deg to 104 deg F)
Storage Temperature	-20 deg to 60 deg C (-4 deg to 140 deg F)
Relative Humidity	0% to 90% non-condensing
Part Number	BMD-DV/RESFA/EDTCS
