Blackmagic Fairlight Console Channel Fader

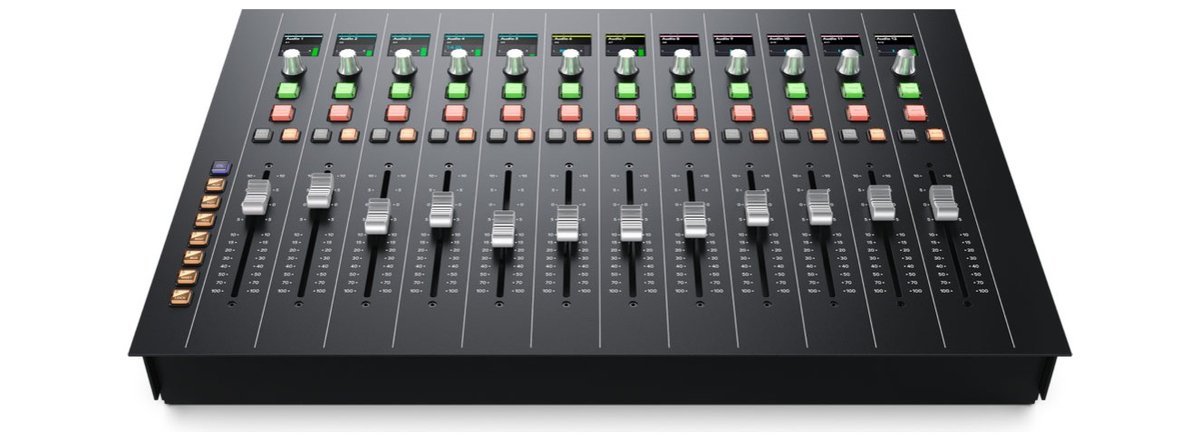

The Fairlight Console Channel Fader is a twelve fader bucket with motorised, touch sensitive faders and per channel metering. It is the part of the console you actually mix on, and the motors mean automation passes are reflected under your hand rather than only on screen.
Each channel strip carries its own display, select, solo and mute keys above the fader. The bucket fits a Fairlight console chassis bay, connects over 10/100/1000 BaseT Ethernet and takes a USB Type-C connection for the Fairlight Studio and Console setup utility. It runs from an internal 100 to 240V AC supply at 20W maximum.
| Ethernet | Ethernet supports 10/100/1000 BaseT. |
|---|---|
| Updates and Configuration | 1 x USB Type-C for software configuration and software updates. |
| Software | Internal software upgrade via updater application. |
| Settings Control | Fairlight Studio and Console setup utility software when connected by USB. |
| Power Supply | Internal 100 - 240V AC 50/60Hz with IEC C14 mains input. |
| Power Usage | 20W max. |
| Operating Temperature | 0 deg to 40 deg C (32 deg to 104 deg F) |
| Part Number | BMD-DV/RESFA/FADCS |
