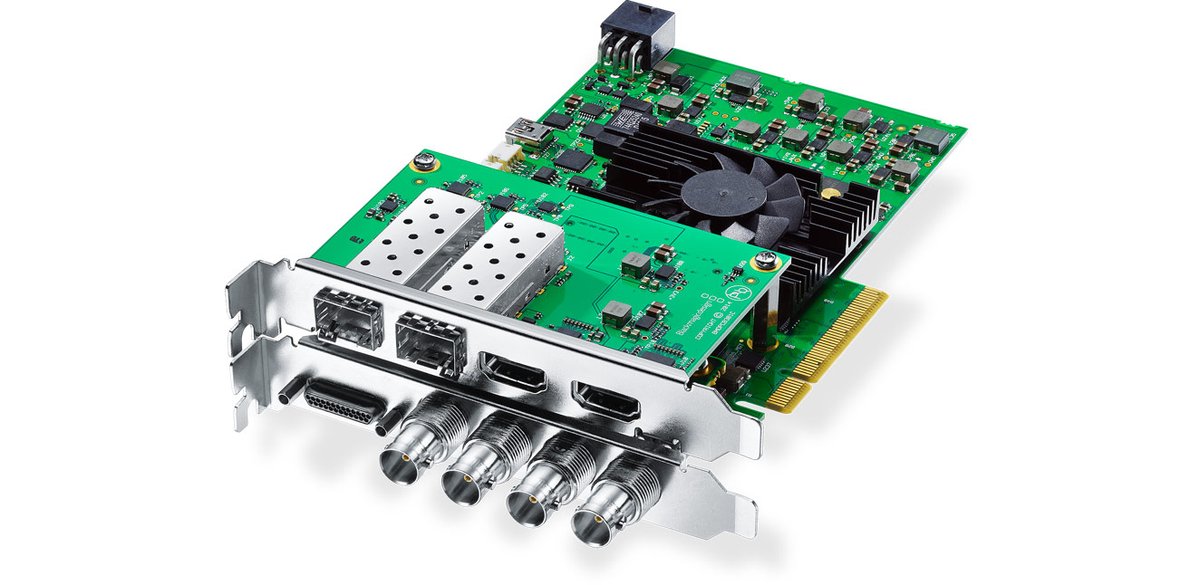

Blackmagic DeckLink 4K Extreme 12G Capture Card

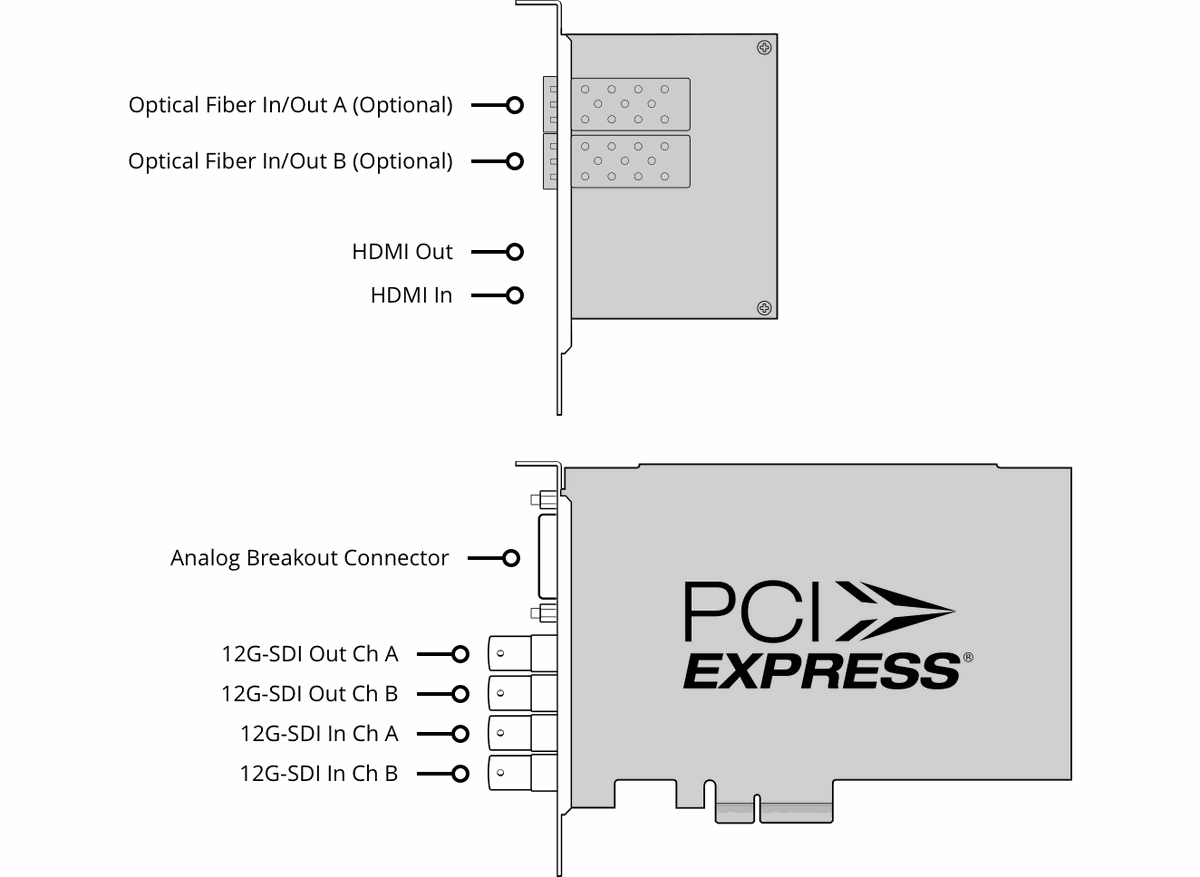

The DeckLink 4K Extreme 12G is a digital cinema capture and playback card that puts full-frame DCI 4K in and out of a workstation over 12G-SDI. Its two 12Gb/s SDI inputs and two 12Gb/s SDI outputs handle SD, HD, 2K and 4K, support single and dual link 4:2:2 and 4:4:4, and switch between 2D and 3D work. HDMI Type A connectors on both input and output add support up to 2160p60 for monitoring and consumer sources.

For legacy and broadcast interchange it also carries analog component video in and out on three BNCs, switchable to S-Video or composite, with both HD and SD support. The card installs in a PCI Express 8-lane generation 2 slot and is compatible with 8- and 16-lane slots using its HDMI or SDI mezzanine card. G&G stocks it as Blackmagic part number BMD-BDLKHDEXTR4K12G.

  • SDI Video Inputs2 x 12Gb/s SD/HD/2K/4K, single/dual link 4:2:2 or 4:4:4
  • HDMI I/OHDMI Type A in and out, up to 2160p60
  • Computer InterfacePCI Express 8-lane generation 2 (8- and 16-lane slots)
  • TypePCIe capture and playback card
TypePCIe capture and playback card
SDI Video Inputs2 x 12Gb/s SD/HD/2K/4K, single/dual link or 4:4:4, 2D/3D
Video Outputs2 x 12Gb/s SD/HD/2K/4K, single/dual link 4:2:2 or 4:4:4, 2D/3D
HDMI I/O Type A in and out, up to 2160p60
Analog VideoComponent YUV in/out on 3 BNC (switchable to S-Video or composite, HD/SD)
Computer InterfacePCI Express 8-lane generation 2 (8- and 16-lane slots)
Part NumberBMD-BDLKHDEXTR4K12G
Unboxing and Test of the DeckLink 4K Extreme 12G
4items in the box
  • DeckLink 4K Extreme 12G
  • HDMI mezzanine card
  • Breakout cable for analog and RS-422 control
  • External power cable
