Blackmagic Audio Monitor 12G G3

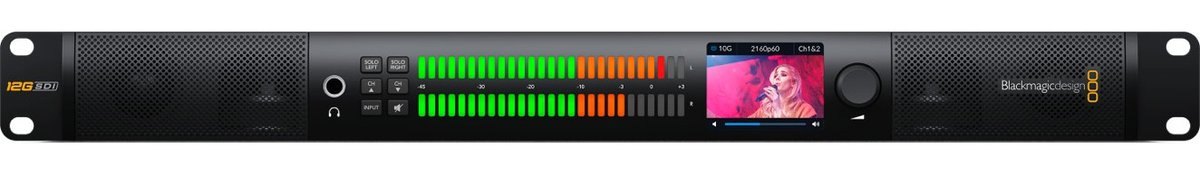

The Blackmagic Audio Monitor 12G G3 is a 1RU rack-mount audio monitoring solution for machine rooms and OB trucks. This generation adds a 10G Ethernet SMPTE-2110 input, so it can monitor IP broadcast systems directly without an external converter, alongside a 12G-SDI input that covers SD, HD and Ultra HD. A large audio meter with accurate ballistics lets engineers read levels at a glance across the room.

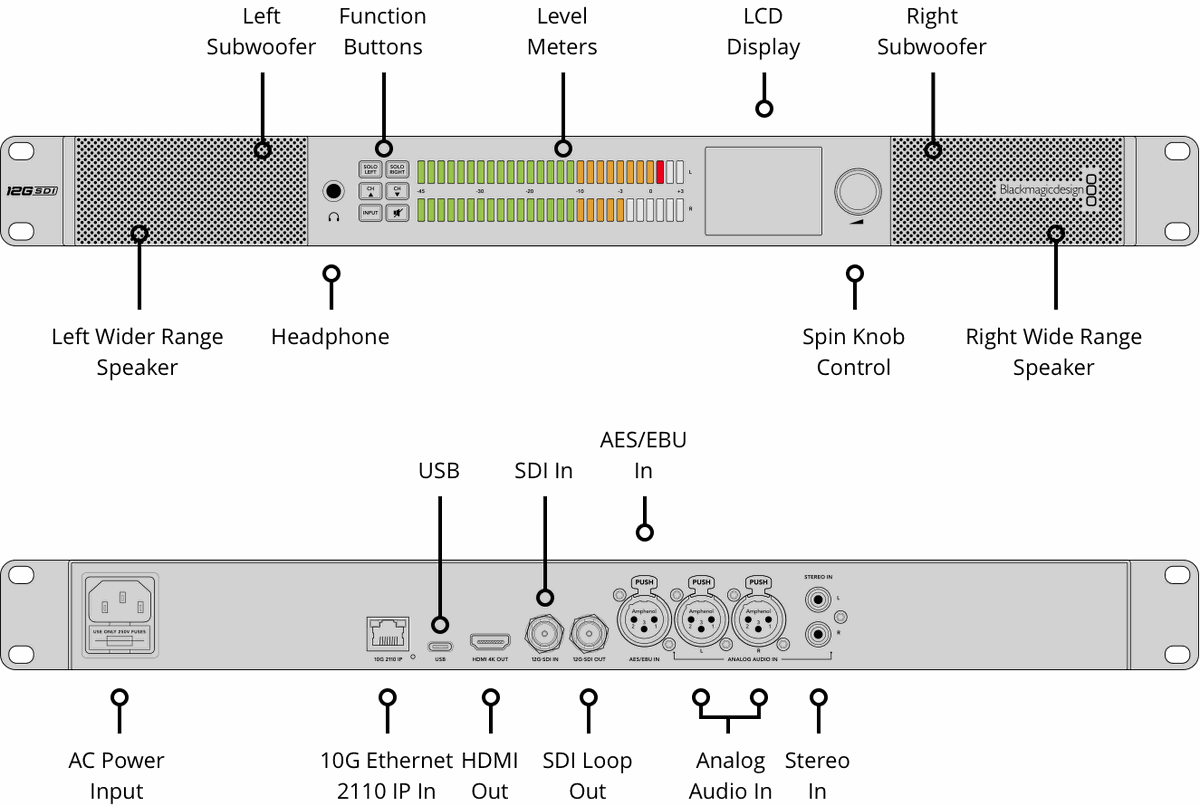

Inputs cover the full range of sources an engineer needs to check: balanced analog XLR, RCA HiFi and balanced AES/EBU audio, plus 16 channels of SDI embedded audio with a loop out. An HDMI output displays the SDI or IP video source, and a 6.5mm headphone socket handles local listening. It carries part number BMD-HDL-AUDMON1RU12GG3.
- Storage Temperature-20° to 45° C (-4° to 113° F)
- SDI Video Inputs1
- SDI Video Outputs1 loop out.
- Analog Audio Inputs2 x XLR. 2 x RCA HiFi.
- Analog Audio Outputs1 x 6.5mm headphone socket.
| Part Number | BMD-HDL-AUDMON1RU12GG3 |
|---|---|
| Video Inputs | 1 |
| SDI Video Outputs | 1 loop out. |
| SDI Rates | 270Mb, 1.5G, 3G, 6G, 12G. |
| 2.0 Video Outputs | 1 |
| Multi Rate Support | SDI and HDMI are switchable between standard definition, high definition and ultra high definition. |
| SDI Video Loop | 1 x reclocked SD-SDI, HD-SDI, 3G-SDI, 6G-SDI and . |
| Analog Audio Inputs | 2 x . 2 x RCA HiFi. |
| Analog Audio Outputs | 1 x 6.5mm headphone socket. |
| Digital Audio Inputs | 1 x XLR. |
| Built in Speaker | Stereo with 2-way crossover and independent stereo subwoofers. |
| AES/EBU Audio Inputs | 2 channels balanced 110Ω AES/EBU via XLR. |
| SDI Audio Inputs | 16 channels embedded in SD, HD and UltraHD 4K. |
| SDI Audio Outputs | 16 channels embedded audio loop out. |
| HDMI Audio Outputs | 8 Channels embedded in SD, HD and 4K. |
| Ethernet | 1 x 10Gb/s RJ-45 connector supporting 10/100/1000/10G BASE-T for SMPTE-2110 IP video in, configuration and firmware updates. |
| Computer Interface | USB-C for configuration and firmware updates. |
| Metering | 2 x 27 RGB segment LED VU, PPM or Loudness meters. |
| Modes | Push button interface allows for input selection, channel selection, independent left and right audio, mute and volume control with scroll wheel. |
| SD Video Standards | 525i59.94 NTSC, 625i50 PAL |
| HD Video Standards | 720p50, 720p59.94, 720p60; 1080i50, 1080i59.94, 1080i60; 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60; 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30 |
| 2K Video Standards | 2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p, 2K 23.98PsF, 2K 24PsF, 2K 25PsF |
| Ultra HD Video Standards | 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60 |
| 4K Video Standards | 4KDCIp23.98, 4KDCIp24, 4KDCIp25, 4KDCIp29.97, 4KDCIp30, 4KDCIp50, 4KDCIp59.94, 4KDCIp60 |
| SDI Compliance | SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M level A and B, SMPTE 2081-1, SMPTE 2081-10, SMPTE 2082-1, SMPTE 2082-10, SMPTE 2110-20, SMPTE 2110-21, SMPTE 2110-30, SMPTE 2110-40, SMPTE 2084, SMPTE 2108-1. |
| SDI Auto Switching | Automatically selects between SD, HD, 3G-SDI level A and B, 6G-SDI and 12G-SDI. |
| Audio Sampling | 96 KHz and 24 bit. |
| Video Sampling | and 4:4:4 |
| Audio Meter Ballistics | 54 RGB segment LEDs allowing selection of metering with VU, PPM EBU, PPM BBC or Loudness. Includes replaceable level scale. |
| SMPTE 2110-20 (Uncompressed Video) | IGMP v2 |
| SMPTE 2110-21 (Traffic Shaping) | Sender: Narrow; Receiver: Narrow, Wide Synchronous, Asynchronous |
| SMPTE 2110-30 (PCM) | Audio Conformance level: Level C |
| SMPTE 2110-40 (Ancillary Data) | Full access to entire SMPTE ancillary data stream. Includes RP 188/SMPTE 12M-2, closed captioning and HDR static metadata. |
| Precision Time Protocol | IEEE 1588-2008 (PTP v2) ST 2059-1; ST 2059-2 |
| NMOS IS-04 Discovery and Registration | v1.3.2; Peer-to-peer via mDNS/DNS-SD |
| NMOS IS-05 Connection Management | v1.1.2 |
| NMOS BCP-002-01 | Natural Grouping |
| NMOS BCP-004-01 | Receiver capabilities |
| Codec | Blackmagic IP10 codec used when converting 12G-SDI rates to 10G 2110 IP video. |
| Built-in Control Panel | 2.2 inch display for viewing video input, video standard and selected audio input. |
| Internal Software Upgrade | Via USB connection and Ethernet |
| Operating Systems | Mac 13.0 Ventura, Mac 14.0 Sonoma or later. Windows 10 and 11. |
| Display Element | 2.2 inch diagonal color LCD. |
| Display Resolution | 320 x 240. |
| Input Display | SDI video, format, audio type and audio channels. |
| Power Supply | 1 x Internal 100 - 240V AC. |
| Power Usage | 55 Watts |
| Physical Installation | 1 rack unit. |
| Operating Temperature | 0° to 40° C (32° to 104° F) |
| Storage Temperature | -20° to 45° C (-4° to 113° F) |
| Relative Humidity | 0% to 90% non-condensing |
| What's Included | Blackmagic Audio Monitor 12G G3; PPM and Loudness Scale Stickers; Welcome wallet with QR code for software download |
| Source | Full specifications on blackmagicdesign.com |
