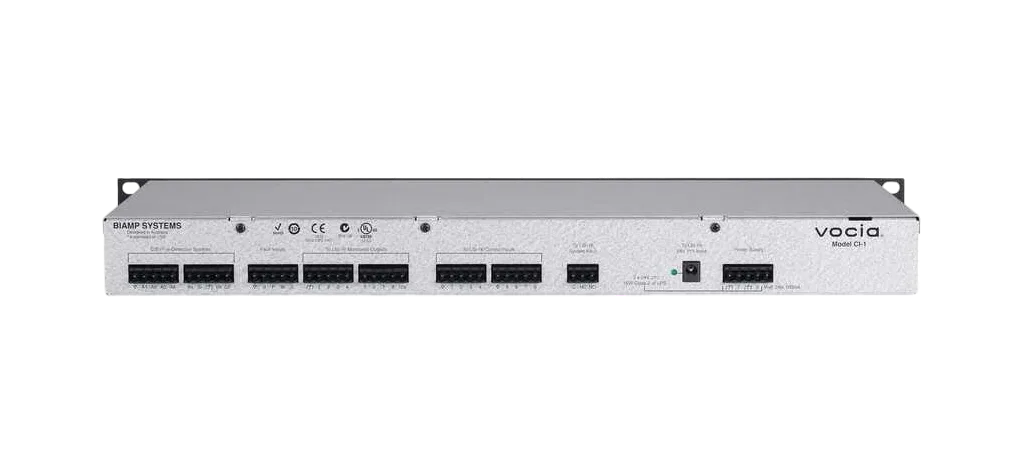

Biamp Vocia CI-1 Interface

The Biamp Vocia CI-1 is an interface built for emergency communication and life-safety systems.

Power handling is rated at Dual 24V DC, 15W each. Rated output power is OUTPUTS: Assertion: Low; Pull-up Load: max 2.2k ohms; Maximum External Supply: 35V; Maximum Continuous Current 350mA; Current Limit: 800mA.

Power	Dual 24V DC, 15W each
Power Output	OUTPUTS: Assertion: Low; Pull-up Load: max 2.2k ohms; Maximum External Supply: 35V; Maximum Continuous Current 350mA; Current Limit: 800mA
Ambient Operating Temperature Range	32-113 deg F (0 - 45 deg C)
Humidity	0 - 100% non-condensing
Altitude	0-10,000 Feet (0-3000 Meters) MSL
Weight	6.4 lbs (2.8 kg)
Dimensions (H x W x D)	1.75 inches (44.5 mm) x 19.0 inches (483 mm) x 10.0 inches (254 mm)
Power Input	ALARM INPUTS: Assertion: Transition from 0V to 12-24V; FAULT INPUTS: Assertion: Transition from +V to 0V; Maximum pull-up resistor: 2.2k ohms
