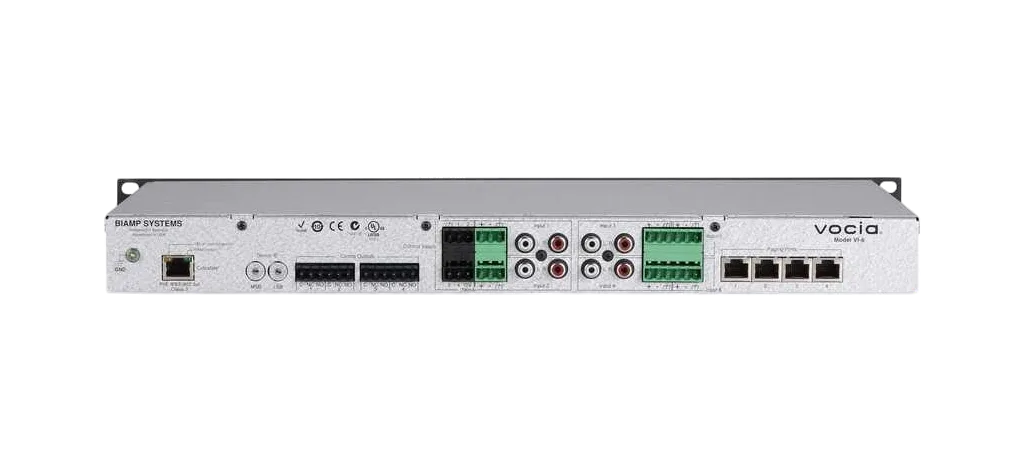

Biamp Vocia VI-6 Input / Output Device

The Biamp Vocia VI-6 is an input / output device built for paging and announcement systems. Frequency response is quoted at Line Inputs (20Hz to 20kHz): +/- 1dB; Mic/Line Inputs (35Hz to 20kHz): +/- 1dB. THD+N is THD + N (20Hz to 8kHz): Line Inputs: <0.02%; Mic/Line Inputs: <0.05%.

Power handling is rated at 802.3af (PoE) Class 3. Rated output power is Control Outputs: Type: Form C Voltage; free change over contact; Max Operating Voltage: 125VAC, 60VDC; Max Switching Capacity: 37VA. Nominal impedance is Line Inputs: >10k ohms; Mic/Line Inputs: >1k ohms. Network connections are RJ-45 with shielded Ethernet; (CAT5, CAT5e, CAT6 or CAT7).

Frequency Response	Line Inputs (20Hz to 20kHz): +/- 1dB; Mic/Line Inputs (35Hz to 20kHz): +/- 1dB
Power	802.3af (PoE) Class 3
Impedance	Line Inputs: >10k ohms; Mic/Line Inputs: >1k ohms
THD+N	THD + N (20Hz to 8kHz): Line Inputs: <0.02%; Mic/Line Inputs: <0.05%
Sampling Rate	48kHz
Crosstalk	>75dB
Dimensions (H x W x D)	1.75 inches (44.5 mm) x 19.0 inches (483 mm) x 10.0 inches (254 mm)
Network Connection(s)	RJ-45 with shielded Ethernet; (CAT5, CAT5e, CAT6 or CAT7)
