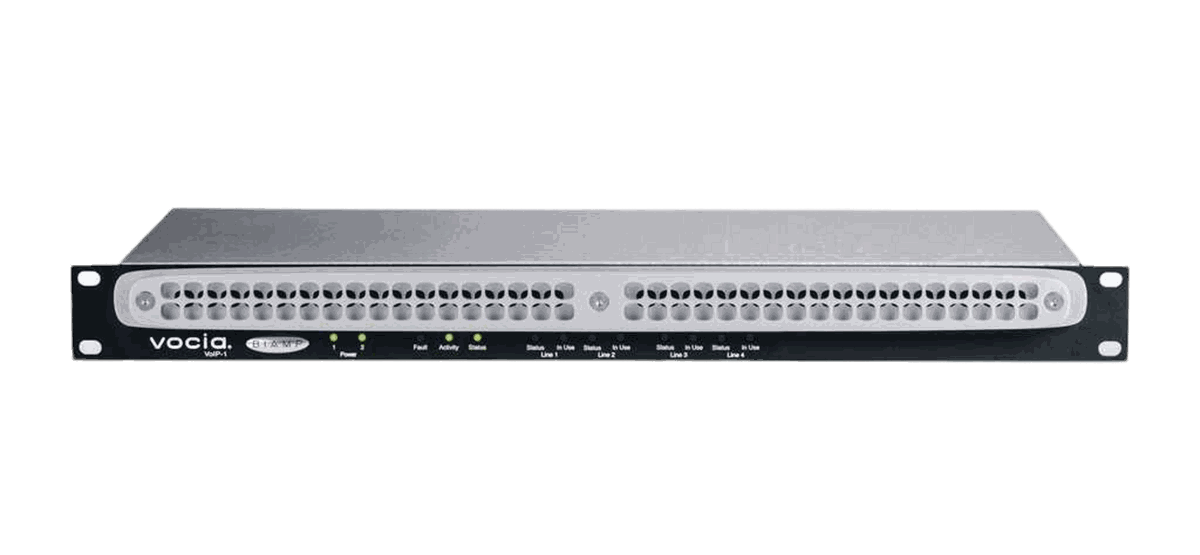

Biamp Vocia VOIP-1-2 Input / Output Device

The Biamp Vocia VOIP-1-2 is an input / output device built for paging and announcement systems.

Power handling is rated at 24V DC; <100mV Ripple (Max 30W). Network connections are Dual RJ-45 with shielded Ethernet (CAT5, CAT5e, CAT6, or CAT7); Network Features: IP Address Assignment: Static or DHCP; QoS: Tos (RFC 791); 802.1 p/q.

Power	24V DC; <100mV Ripple (Max 30W)
Sampling Rate	8kHz - 16kHz

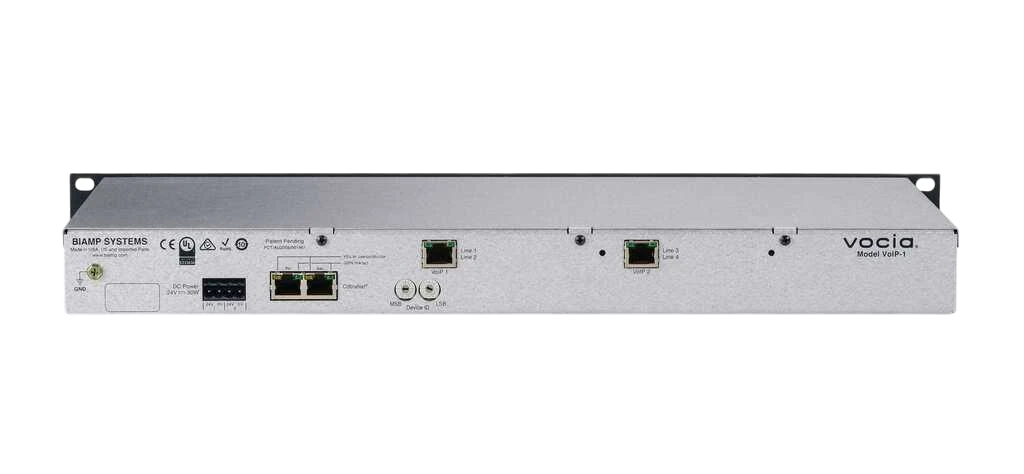

Network Connection(s)	Dual RJ-45 with shielded Ethernet (CAT5, CAT5e, CAT6, or CAT7); Network Features: IP Address Assignment: Static or DHCP; QoS: Tos (RFC 791); 802.1 p/q
Ambient Operating Temperature Range	18-108 deg F (-8 - 42 deg C)
Humidity	0 - 95% non-condensing
Altitude	0-10,000 Feet (0-3000 meters) MSL
Dimensions (H x W x D)	1.75 inches (44 mm) x 19 inches (483 mm) x 9 inches (228 mm)
Audio	Network Audio: 20-bits, 48kHz, 5-1/3ms (fixed)
