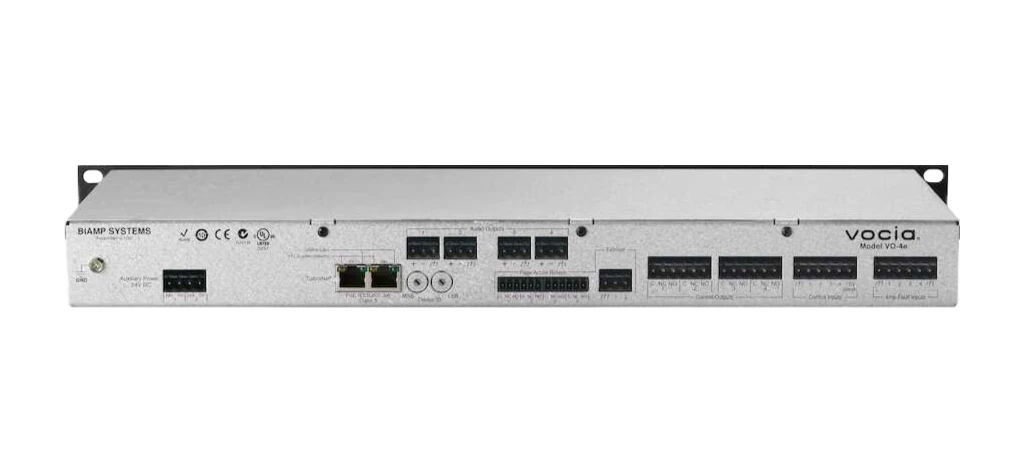

Biamp Vocia VO-4e Input / Output Device

The Biamp Vocia VO-4e is an input / output device built for paging and announcement systems. Frequency response is quoted at +/- 1dB. Maximum output is +22dBu; Maximum Output Load: 2k ohms. THD+N is (20Hz-10kHz): <0.05%.

Power handling is rated at PoE: 802.3af Class 3; 802.3at Type 1 Class 3; Aux Voltage Nominal: 24V DC; <100mV Ripple (Max 15W). Rated output power is -10dBu, 0dBu, +4dBu (selectable). Network connections are Dual RJ45 with shielded Ethernet (CAT5, CAT5e, CAT6, or CAT 7).

Frequency Response	+/- 1dB
Power	PoE: 802.3af Class 3; 802.3at Type 1 Class 3; Aux Voltage Nominal: 24V DC; <100mV Ripple (Max 15W)
Maximum Output	Maximum Output Level: +22dBu; Maximum Output Load: 2k ohms
THD+N	(20Hz-10kHz): <0.05%
Dynamic Range	>100dB
Network Connection(s)	Dual RJ45 with shielded Ethernet (CAT5, CAT5e, CAT6, or CAT 7)
Dimensions (H x W x D)	1.75 inches (44.5 mm) x 19 inches (483 mm) x 10 inches (254 mm)
Power Output	Nominal Output Level: -10dBu, 0dBu, +4dBu (selectable)
