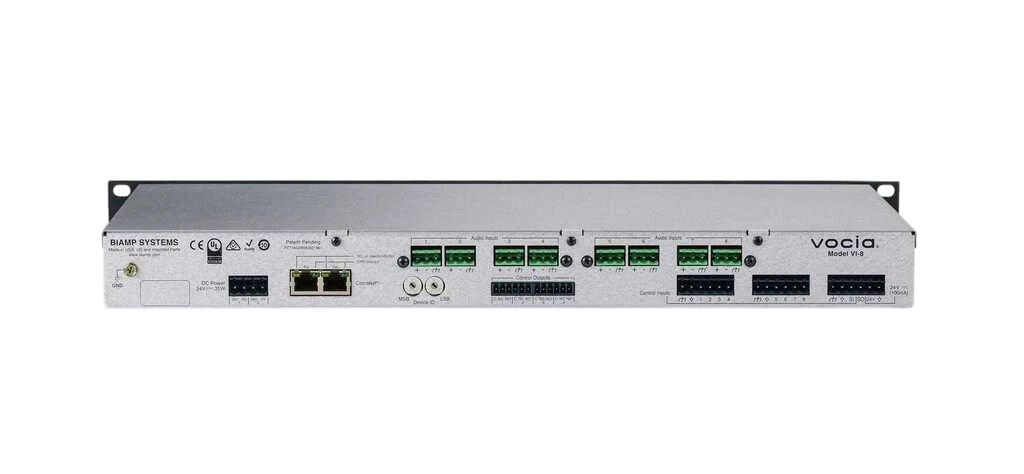

Biamp Vocia VI-8 Input / Output Device

The Biamp Vocia VI-8 is an input / output device built for paging and announcement systems. Frequency response is quoted at (20Hz~20kHz): +0, -1dB. THD+N is (20Hz~20kHz): <0.05%. Dynamic range is >100dB.

Power handling is rated at DC Input: 24V DC; <100mV Ripple (Max 35W); DC Reference Output: 24V; 100mA limited. Nominal impedance is Input: 8k ohms. Audio: 20-bits, 48kHz, 5-1/3ms (fixed).

Frequency Response	(20Hz~20kHz): +0, -1dB
Power	DC Input: 24V DC; <100mV Ripple (Max 35W); DC Reference Output: 24V; 100mA limited
Impedance	Input: 8k ohms
Maximum Input	Level: 24dBu
Audio	Network Audio: 20-bits, 48kHz, 5-1/3ms (fixed)
THD+N	(20Hz~20kHz): <0.05%
Dimensions (H x W x D)	1.75 inches (44 mm) x 19 inches (483 mm) x 10 inches (254 mm)
Dynamic Range	>100dB
