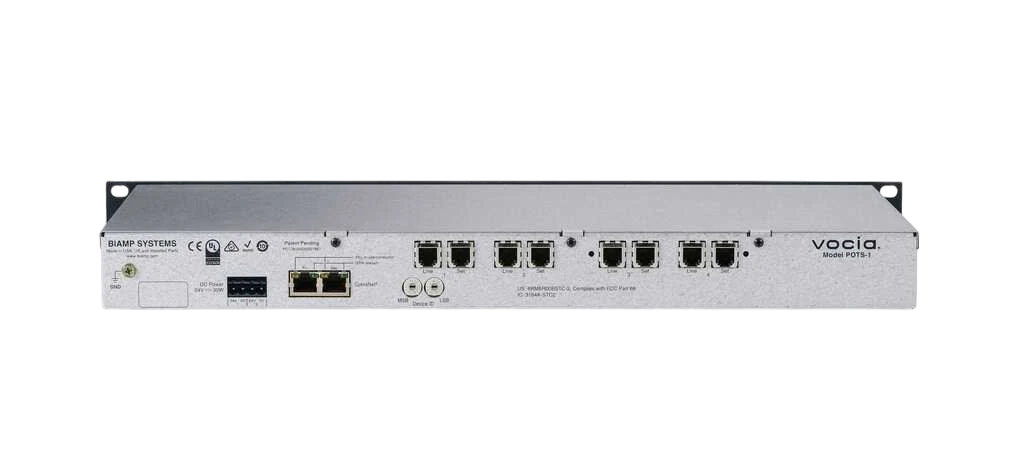

Biamp Vocia POTS-1-2 Input / Output Device

The Biamp Vocia POTS-1-2 is an input / output device built for paging and announcement systems. Frequency response is quoted at 250Hz-3.4kHz. THD+N is (250Hz - 2kHz): < 0.3%.

Power handling is rated at 24V DC; <100mV Ripple (Max 30W). Network connections are Dual RJ-45 with shielded Ethernet; (CAT5, CAT5e, CAT6, or CAT7).

Frequency Response	250Hz-3.4kHz
Power	24V DC; <100mV Ripple (Max 30W)
THD+N	(250Hz - 2kHz): < 0.3%
Network Connection(s)	Dual RJ-45 with shielded Ethernet; (CAT5, CAT5e, CAT6, or CAT7)
Ambient Operating Temperature Range	18-108 deg F (-8 - 42 deg C)
Humidity	0 - 95% non-condensing
Dimensions (H x W x D)	1.75 inches (44 mm) x 19 inches (483 mm) x 9 inches (228 mm)
Altitude	0-10,000 Feet (0-3000 meters) MSL
