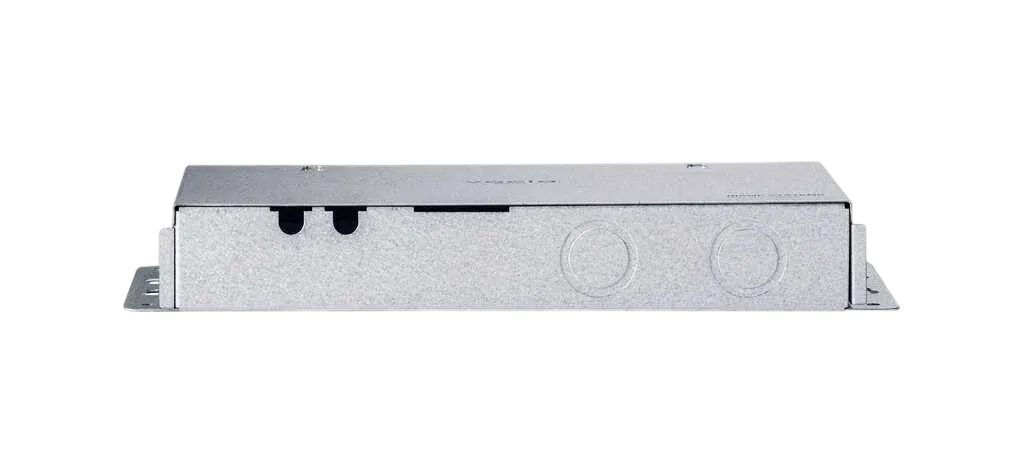

Biamp Vocia PSKIT-1 Input / Output Device

The Biamp Vocia PSKIT-1 is an input / output device built for paging and announcement systems. Frequency response is quoted at (100Hz ~ 20kHz): +0, -1dB. THD+N is <0.05%.

Power handling is rated at PoE: 802.3at Type 1 Class 2; DC Power: 24V DC 6W. Network connections are RJ45 with shielded Ethernet; (CAT5, CAT5e, CAT6, or CAT7). Control connection is General Purpose Inputs: Quantity: 12; Type: Contact Closure / TTL; TTL Logic Low: 0 - 0.8V; TTL Logic High: 2-5V; General Purpose Outputs: Quantity: 3. Mounting provision: Surface Mounted Component Housing.

Frequency Response	(100Hz ~ 20kHz): +0, -1dB
Power	PoE: 802.3at Type 1 Class 2; DC Power: 24V DC 6W
THD+N	<0.05%
Sampling Rate	48kHz
Network Connection(s)	RJ45 with shielded Ethernet; (CAT5, CAT5e, CAT6, or CAT7)
Control	General Purpose Inputs: Quantity: 12; Type: Contact Closure / TTL; TTL Logic Low: 0 - 0.8V; TTL Logic High: 2-5V; General Purpose Outputs: Quantity: 3
Dimensions (H x W x D)	1.6 inches (41 mm) x 5.2 inches (133 mm) x 11.5 inches (293 mm)
Mounting	Surface Mounted Component Housing
