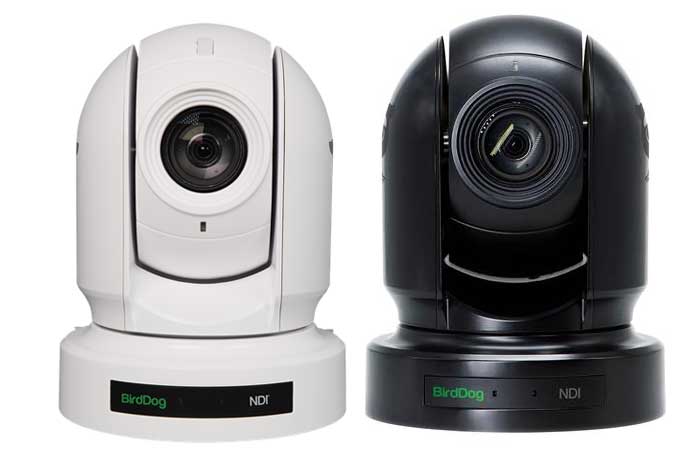

BDP200B PTZ camera utilizes BirdDog's custom NDI silicon chip and leverages an impressive Sony CMOS backlit sensor and full Sony Image Module.
Designed for serious production the image quality of P200 is best in class. Built on a true Sony Image module with Sony CMOS backlit sensor, P200 has super fast focus, incredibly sharp images, and amazingly fast zoom. P200 has frame rates up to 1080p60, 30x optical zoom, and outputs SDI, HDMI, and NDI simultaneously. 3.5mm audio connectors allow P200 to work with BirdDog Comms, the world's first NDI audio intercom platform. Comms is a Windows 10 application that can run on any Windows 10 compatible computer, laptop, or surface for a touch screen experience.
P200 has been designed for the most demanding on image quality. The superior optics make P200 perfect for Sports, Broadcast, Live Event Production, IMAG, Education, and any other application where quality matters. P200 can also be used as a traditional PTZ camera with SDI, RS422, RS485, and RS232 control allowing you to move into the world of NDI when you are ready.
CAMERA
- Image Sensor 1 / 2.8 inch CMOS 2.13MP
- Lens 4.3-129mm
- Optical Zoom 30x
- Digital Zoom 12x
- Horizontal Angle of View 63.7o(W) – 2.3o(T)
- Aperture F1.6(W) – F4.7 (T)
- Min. Illumination Color: 0.01 lux (F1.6,AGC on,1/30s, High sensitive mode), 0.1 lux(F1.6,AGC on,1/30s, Normal sensitive mode)
- Shutter Speed 1/1 – 1/10000s
- Focus Auto, Push, Manual
- White Balance Auto,Indoor,Outdoor,Manual,OPW ,ATW
- Exposure Auto,Manual,Shutter/Iris Priority
- Backlight Compensation YES
MECHANICAL
- Pan Movement Horizontal:±350 degrees continuous pan (Zoom Adaptive Speed Range: 0.05°〜100°/S )
- Tilt Movement Vertical:+90 degrees to -30 degrees (Zoom Adaptive Speed Range: 0.05°〜50°/S)
- Preset Positions 128 (Speed adjustable: Up to 150o/s)
- Preset Speed 0-5 Level adjustable
- Environmental Indoor
VIDEO INTERFACE
- Video Output NDI/HDMI/SDI
- Video Formats
1080P 60, 59.94, 50, 29.97, 25
1080i 60, 59.94, 50
720p 60, 59.94, 50, 29.97, 25
- Audio I/O
3.5mm Audio In (Stereo)
3.5mm Audio Out (Stereo)
CONTROL INTERFACE
- IP PTZ Control NDI Control (auto configuring)
- Serial PTZ Control 1x RJ45: RS232/RS422
- Serial Control Protocol VISCA / Pelco D
POWER & DIMENSIONS
- Operating Temperature -10 - +50 (oC)
- Operating Humidity =< 80%
- Power Input 12vDCm, PoE+ (IEEE 802.3at)
- Dimensions 160 x 178 x 220mm
- Weight 2.0kg
NETWORK
- Video Compression Full NDI – i-frame high quality low latency NDI for production
- Network Protocol NDI – Discovery, configuration and control
- Web Control interface Full control via Web/Mobile UI including Scene presets
