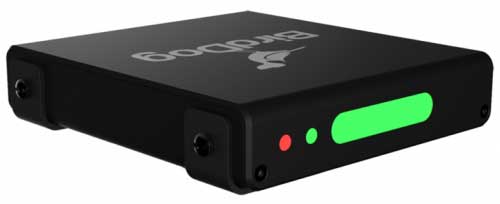

BirdDog BDMINIHDMI
Mini HDMI to NDI Encoder/Decoder

The BirdDog Mini HDMI to NDI Encoder is a tiny NDI interface for HDMI video sources. Connect your camera or other video source, and have it instantly be available on your NDI-enabled network. Despite its size, the BirdDog Mini supports 1080p resolutions up to 59.94 fps. PoE is accepted, so the Mini can be powered via network connection; no power supply needed. Tally information is displayed and passed through to compatible equipment.

The small size of the Mini will make it at home in studios and video production facilities utilizing NDI technology.

Tally Support - A built-in bi-color tally display can show video source on-air info. Tally information is also passed through to supported monitoring equipment.

Flexible Power Options - Power the Mini via DC input from your camera battery's D-tap, or use the included AC power adapter. Power can also be supplied over Ethernet using a PoE-enabled switcher or injector.

Comms - The Mini natively supports BirdDog Comms technology. (Includes COMMS LITE)

Technical Specifications

Video Formats
• (HD) 1080p 23.98, 25, 29.97, 50, 59.94
• (HD) 1080i 25, 29.97
• (HD) 720p 50, 59.94
• (SD) 525i, 625i

Video Input
• 1 x HDMI Standard Type A connector
• HDMI v1.4a, RGB or YCbCr

Video Output
• 1 x HDMI Standard Type A connector
• HDMI v1.4a, RGB or YCbCr

Audio Digital
• 2-Channel, 24-bit HDMI embedded audio, 48 kHz sample rate, synchronous

Audio Analog
• 2-Channel, 24-bit HDMI embedded audio, 48 kHz sample rate, synchronous

Video Codec Support
• Realtime, ultra-low latency, full-bitrate NDI (i-frame)

Display
• Bicolor Tally (Red/Green)
• Multicolour status information
• Full status information on HDMI output (Selectable)

Network Interface
• 10/100/1000 Ethernet (RJ-45) with PoE (Power over Ethernet)
• Embedded web configuration panel for control and firmware updates

User Interface Controls
• Network settings
• Video settings
• Tally settings
• Audio and Comms settings

Size (w x d x h)
• 98 x 110 x 22mm

Weight
• 200g

Power
• 100-240V, 50/60 Hz Universal Input, +5-18V DC7W Max
• Power over Ethernet (PoE) 802.3af/at

Click here to view the BDMINIHDMI user manual.
