BirdDog BDP100 PTZ Cameras

BirdDog BDP100 PTZ Cameras

BirdDog BDP100B

  • PTZ Camera (BLACK)
  • Optical 10X zoom
  • NDI, SDI, and HDMI simultaneous outputs
  • 1080p, 1080i, 720p
  • Can connect via USB to use as a webcam
  • 128 preset positions

$1699.00

FREE UPS SHIPPING

BirdDog BDP100W

  • PTZ Camera (WHITE)
  • Optical 10X zoom
  • NDI, SDI, and HDMI simultaneous outputs
  • 1080p, 1080i, 720p
  • Can connect via USB to use as a webcam
  • 128 preset positions

$1699.00

FREE UPS SHIPPING

BirdDog BDP100B

  • PTZ Camera (BLACK)
  • Optical 10X zoom
  • NDI, SDI, and HDMI simultaneous outputs
  • 1080p, 1080i, 720p
  • Can connect via USB to use as a webcam
  • 128 preset positions
$1699.00
FREE UPS SHIPPING

BirdDog BDP100W

  • PTZ Camera (WHITE)
  • Optical 10X zoom
  • NDI, SDI, and HDMI simultaneous outputs
  • 1080p, 1080i, 720p
  • Can connect via USB to use as a webcam
  • 128 preset positions
$1699.00
FREE UPS SHIPPING

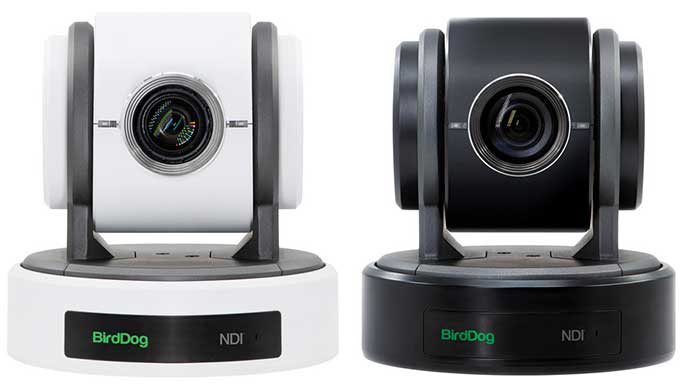

The BDP100 cameras, available in black or white, are BirdDog's entry-level full NDI indoor PTZ camera based on their custom NDI silicon chip. The P100 captures up to 1080p60 resolution and offers 10x optical zoom, ideal for small to mid-size meeting rooms and environments. The camera features simultaneous 3G-SDI and NDI outputs, allowing you to integrate into an NDI workflow and/or use legacy SDI equipment.

NDI is accessible via an Ethernet port provided on an included breakout cable. The breakout cable connects to an extension port on the rear of the camera and also offers a composite output, 3.5mm audio input/output jacks, and RS-232/422/485 control ports. The audio connectors allow the P100 to work with the BirdDog Comms NDI audio intercom platform. The BirdDog Comms Lite version of the software for Windows is included and it supports up to four BirdDog devices, and you can upgrade to the complete Comms Pro version at any later time. The camera is also compatible with the optional BirdDog Central software, which helps you decode NDI back to SDI (or HDMI). Also, the optional BirdDog PTZ Keyboard can be used over NDI or over RS-422/RS-232 in SDI mode.

As opposed to other types of NDI, such as NDI|HX, which is a compressed variant that reaches 12 Mb/s, the P100 features the visually lossless full NDI variable bit-rate iFrame codec that reaches up to 140 Mb/s at 1080p60.

P100 can connect via USB to use as a webcam. Perfect for boardrooms, huddle rooms or anywhere you need better picture quality than your inbuilt webcam. P100 works seamlessly with Zoom, Teams, Hangouts, Chime, Messenger, and even works with Skype.

CAMERA
  • Image Sensor 1 / 2.86 inch CMOS 2.2MP
  • Lens 4.47-47mm
  • Optical Zoom 10x
  • Horizontal Angle of View 60.9° (W) – 6.43° (T)
  • Aperture F1.6 (W) – F3.0 (T)
  • Min. Illumination Color: 0.5 lux
  • Shutter Speed 1/1 – 1/30000s
  • Focus Auto, Push, Manual
  • White Balance Auto, Indoor, Outdoor, Manual, OPW, ATW
  • Exposure Auto,Manual,Shutter/Iris Priority
  • Backlight Compensation YES

MECHANICAL
  • Pan Movement Horizontal:±350 degrees continuous pan (Zoom Adaptive Speed Range: 0.05°〜100°/S )
  • Tilt Movement Vertical:+90 degrees to -30 degrees (Zoom Adaptive Speed Range: 0.05°〜72°/S)
  • Preset Positions 128 (Speed adjustable: Up to 150o/s)
  • Preset Speed 0-5 Level adjustable
  • Environmental Indoor
  • Operating Temperature -10 – +50 (°C)
  • Operating Humidity ≤80%
VIDEO INTERFACE
  • Video Output NDI/HDMI/SDI
  • Video Formats
    1080P 60, 59.94, 50, 29.97, 25
    1080i 60, 59.94, 50
    720p 60, 59.94, 50, 29.97, 25
  • Audio I/O
    3.5mm Audio In (Stereo)
    3.5mm Audio Out (Stereo)

CONTROL INTERFACE
  • IP PTZ Control NDI Control (auto configuring)
  • Serial PTZ Control 1x RJ45: RS232/RS422
  • Serial Control Protocol VISCA / Pelco D

POWER & DIMENSIONS
  • Power Input 12vDC, PoE+ (IEEE 802.3at)
  • Dimensions 145 x 145 x 154mm
  • Weight 1.0kg

NETWORK
  • Video Compression Full NDI – i-frame high quality low latency NDI for production
  • Network Protocol NDI – Discovery, configuration and control
  • Web Control interface Full control via Web/Mobile UI including Scene presets
CAMERA
  • Image Sensor 1 / 2.86 inch CMOS 2.2MP
  • Lens 4.47-47mm
  • Optical Zoom 10x
  • Horizontal Angle of View 60.9° (W) – 6.43° (T)
  • Aperture F1.6 (W) – F3.0 (T)
  • Min. Illumination Color: 0.5 lux
  • Shutter Speed 1/1 – 1/30000s
  • Focus Auto, Push, Manual
  • White Balance Auto, Indoor, Outdoor, Manual, OPW, ATW
  • Exposure Auto,Manual,Shutter/Iris Priority
  • Backlight Compensation YES

MECHANICAL
  • Pan Movement Horizontal:±350 degrees continuous pan (Zoom Adaptive Speed Range: 0.05°〜100°/S )
  • Tilt Movement Vertical:+90 degrees to -30 degrees (Zoom Adaptive Speed Range: 0.05°〜72°/S)
  • Preset Positions 128 (Speed adjustable: Up to 150o/s)
  • Preset Speed 0-5 Level adjustable
  • Environmental Indoor
  • Operating Temperature -10 – +50 (°C)
  • Operating Humidity ≤80%
VIDEO INTERFACE
  • Video Output NDI/HDMI/SDI
  • Video Formats
    1080P 60, 59.94, 50, 29.97, 25
    1080i 60, 59.94, 50
    720p 60, 59.94, 50, 29.97, 25
  • Audio I/O
    3.5mm Audio In (Stereo)
    3.5mm Audio Out (Stereo)

CONTROL INTERFACE
  • IP PTZ Control NDI Control (auto configuring)
  • Serial PTZ Control 1x RJ45: RS232/RS422
  • Serial Control Protocol VISCA / Pelco D

POWER & DIMENSIONS
  • Power Input 12vDC, PoE+ (IEEE 802.3at)
  • Dimensions 145 x 145 x 154mm
  • Weight 1.0kg

NETWORK
  • Video Compression Full NDI – i-frame high quality low latency NDI for production
  • Network Protocol NDI – Discovery, configuration and control
  • Web Control interface Full control via Web/Mobile UI including Scene presets

Click here to view the BDP100 user manual.
