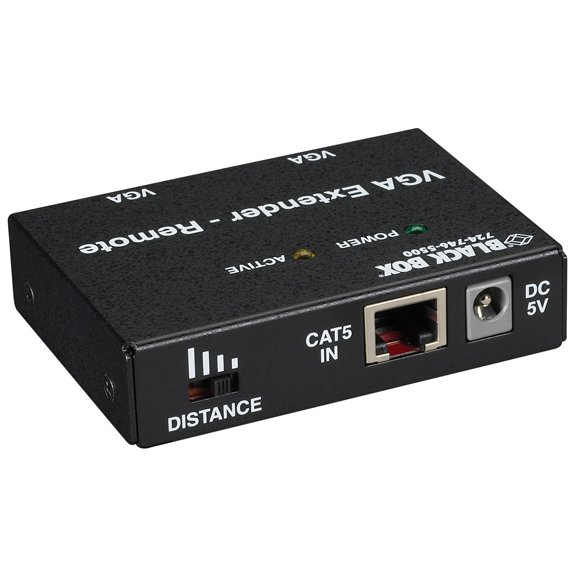

Black Box AC555A-REM-R2 VGA Receiver - 2-Port

Black Box lists the AC555A-REM-R2 as a VGA Receiver: 2-Port. Resolution: 1024 x 768. Connectors are (1) RJ45.

Power: External: Input: 120 VAC, 60 Hz. It measures 0.6-in. H x 3.3-in. W x 2.3-in. D (1.5 x 8.4 x 5.8-cm) and weighs 0.4-lb. (0.182-kg). Front-panel indication: (1) Power, (1) Active.

Resolution1024 x 768
Distance (Maximum)500 ft. (152.4 m)
Connectors(1) RJ45; (1) 5 VDC in; (2) HD15 (Female) out
Indicators(1) Power, (1) Active
PowerExternal: Input: 120 VAC, 60 Hz; Output: 5 VDC, 600 mA
Dimensions0.6-in. H x 3.3-in. W x 2.3-in. D (1.5 x 8.4 x 5.8-cm)
Weight0.4-lb. (0.182-kg)
Country of OriginTaiwan
