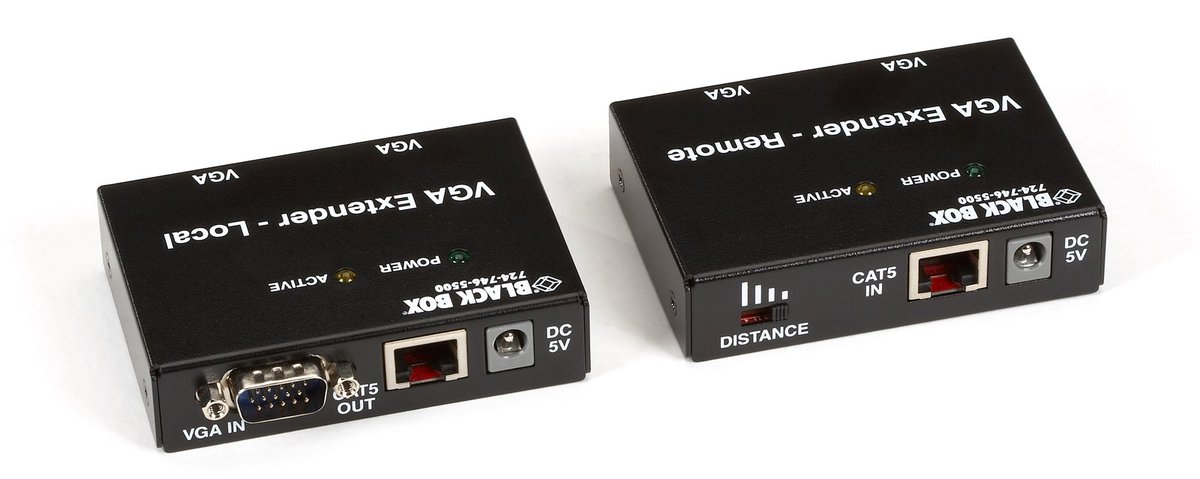

Black Box AC555A-R2 VGA Extender Kit - 2-Port Local, 2-Port Remote

Black Box builds the AC555A-R2 for the runs a direct cable will not make: 2-Port Local, 2-Port Remote. Distance: 500 ft. (152.4 m) maximum. Connectors are Local Unit: (1) HD15 (Male) in.

Power: External: Input: 120 VAC, 60 Hz. Front-panel indication: On each local and remote unit: (1) Power, (1) Active. In the box: Local Unit, Remote Unit, (4) Rubber Feet, 6-ft. (1.8-m) VGA Male to VGA Female Cable, (2) 6-ft. (1.8-m) Power Cords, (2) Power Supplies.

Distance500 ft. (152.4 m) maximum
ConnectorsLocal Unit: (1) HD15 (Male) in; (1) RJ45; (1) 5 VDC in; (2) HD15 (Female) out Remote Unit: (1) RJ45; (1) 5 VDC in; (2) HD15 (Female) out
IndicatorsOn each local and remote unit: (1) Power, (1) Active
PowerExternal: Input: 120 VAC, 60 Hz; Output: 5 VDC, 600 mA
Country of OriginTaiwan
Resolution (Maximum)1024 x 768
User ControlsEqualizer selector switch
Dimensions - Receiver0.6-in. H x 3.3-in. W x 2.3-in. D (1.5 x 8.4 x 5.8-cm)

Resources and support

Compatibility helpCall (201) 791-1400 to confirm signal format, connections, and workflow fit. Black Box product familyContinue browsing the full Black Box range we carry.
