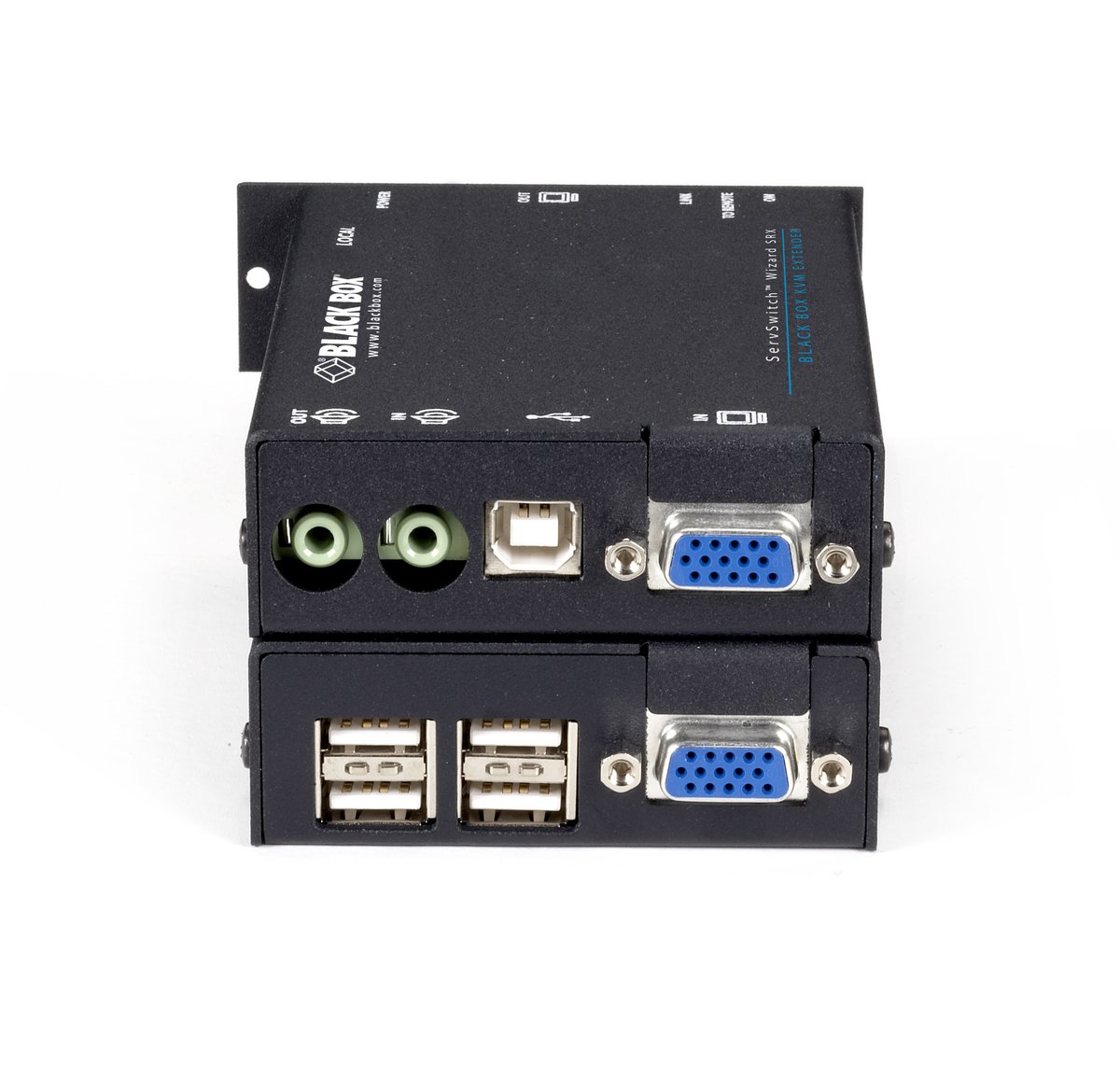

Black Box ACU5051A ServSwitch Wizard SRX KVM Extender - VGA, USB 2.0, Audio, Dual-Access, CATx

One CATx run carries VGA video to 1920 x 1440, transparent USB 1.1 or 2.0 and stereo audio up to 164 feet (50 m). Image quality is adjustable at the remote unit, and a four-port USB hub is built into that end so a full desktop of peripherals lands where the user is sitting rather than where the machine is.

Modern graphics cards need DDC information even on an analogue output, and without it they fall back to poor video or none at all; the SRX reads the EDID from the attached display and keeps it in the local unit's non-volatile memory. VGA and stereo audio feed through locally, so a keyboard and mouse in the PC's spare USB ports give you a second working position - two users can monitor and diagnose the same machine from either end. Automatic cut-out fuses protect against surges, and the compact chassis mounts side by side in the ACU5000A rack chassis, sixteen single-video units in 2U.
