Audix AP42VX5 Dual-Channel Handheld Condenser Wireless System

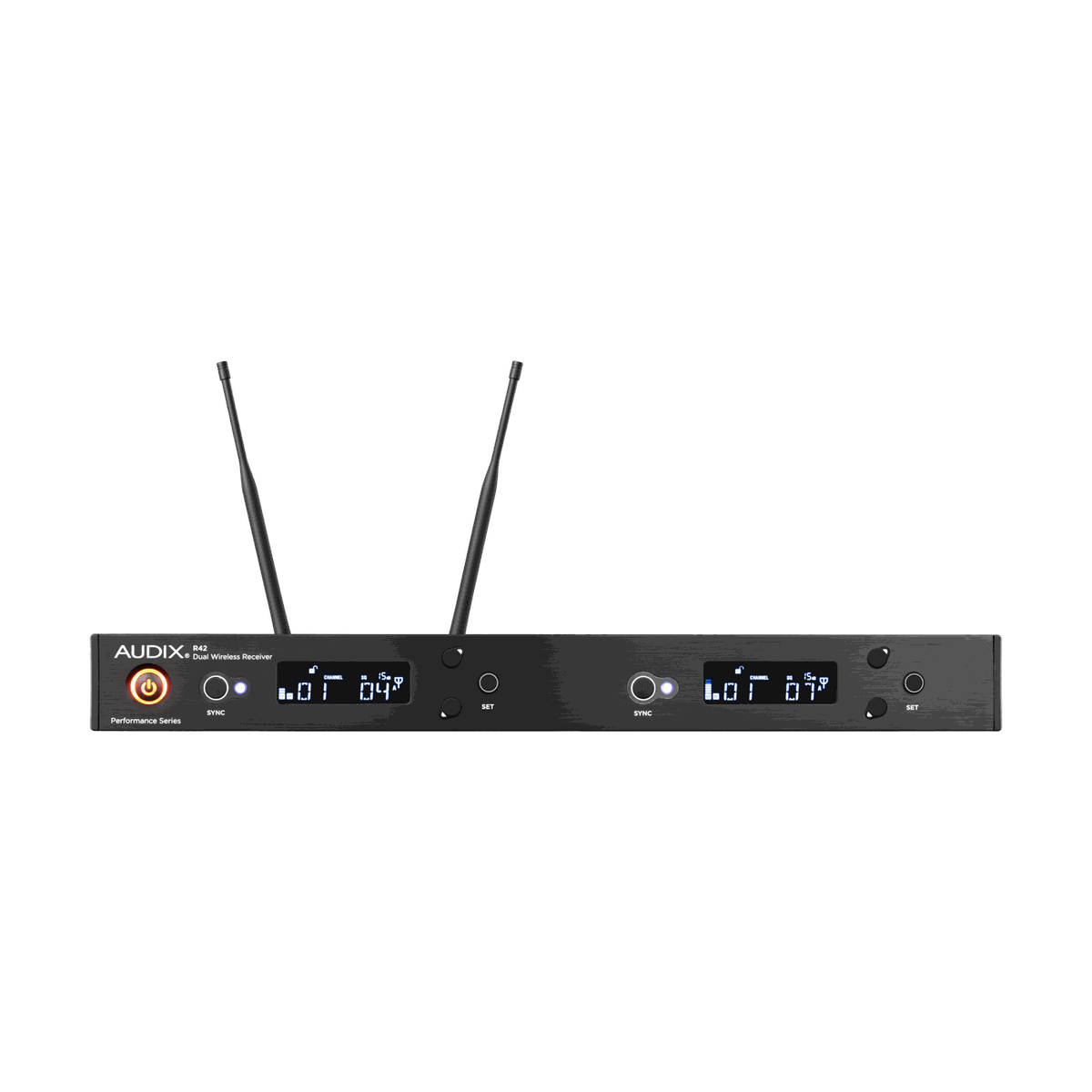

The Audix AP42VX5 is a Performance Series analog UHF wireless system built around the Audix VX5 handheld condenser. The AP42 puts two independent channels in one rack space. The R42 is a dual-channel antenna-diversity receiver covering a 32 MHz window with 106 pre-coordinated frequencies, and up to 8 systems can operate together. Auto scan and infrared sync set each channel up in seconds.

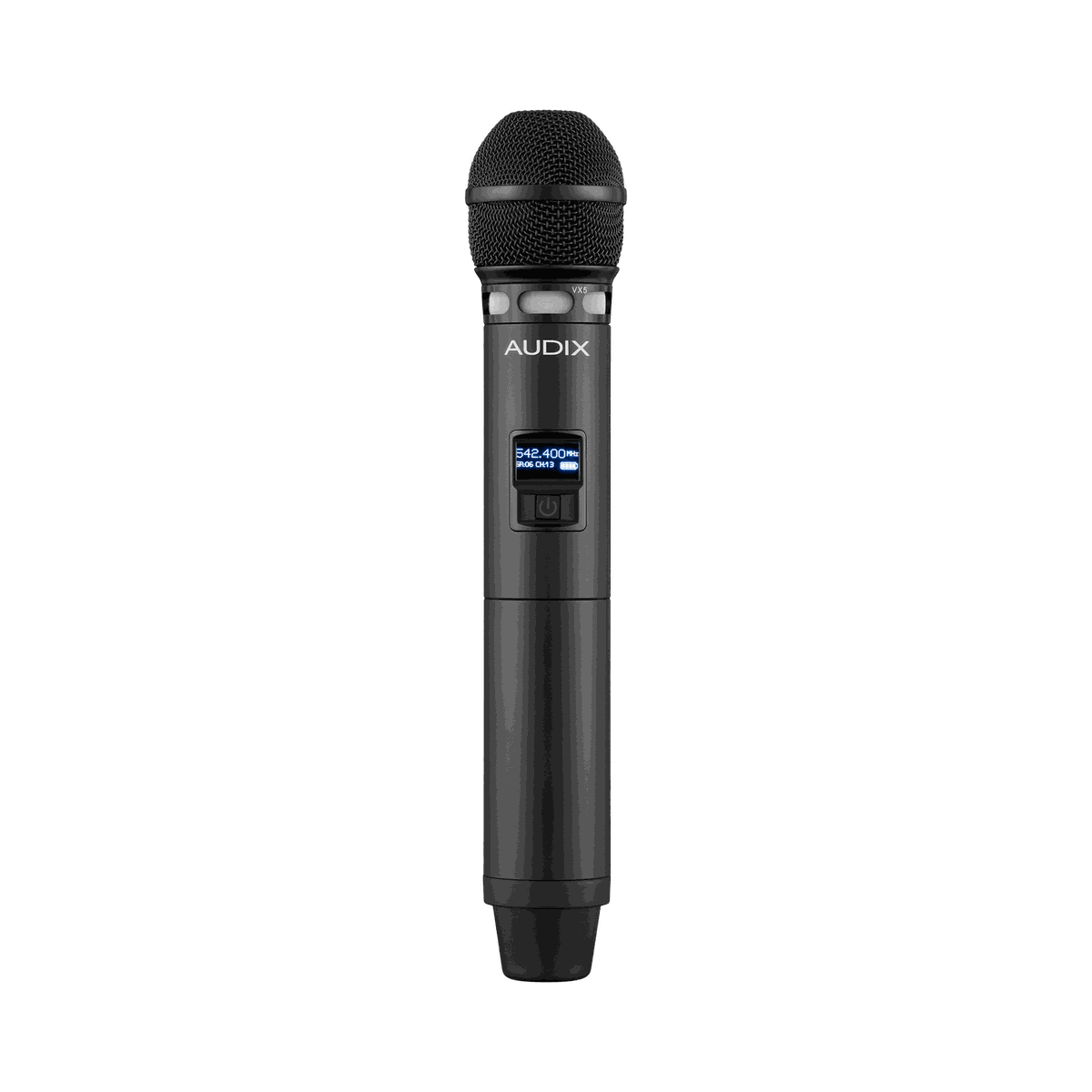

The VX5 is a vocal condenser built to bring studio-quality detail onto a stage. Its response is smooth and detailed rather than hyped, it stays resistant to feedback, and it handles very high SPL without distortion.
| Receiver | R42 dual-channel, single tuner antenna diversity |
|---|---|
| Frequency Range | A: 522 MHz - 554 MHz / B: 554 MHz - 586 MHz |
| Switchable Frequencies | 106 pre-coordinated frequencies |
| Simultaneous Systems | Up to 8 |
| Audio Frequency Response | 45 Hz - 18 kHz |
| Signal-to-Noise Ratio | 105 dB at 30 kHz deviation (A-weighted) |
| Output Connectors | XLR balanced and 1/4 in unbalanced |
| Transmitter | H60 handheld, 53 mm diameter x 265 mm, 10 mW / 30 mW RF |
| Transmitter Battery | 2 x AA, approximately 14 hours |
