Audix AP62C210 Dual-Channel True Diversity Combo Wireless System

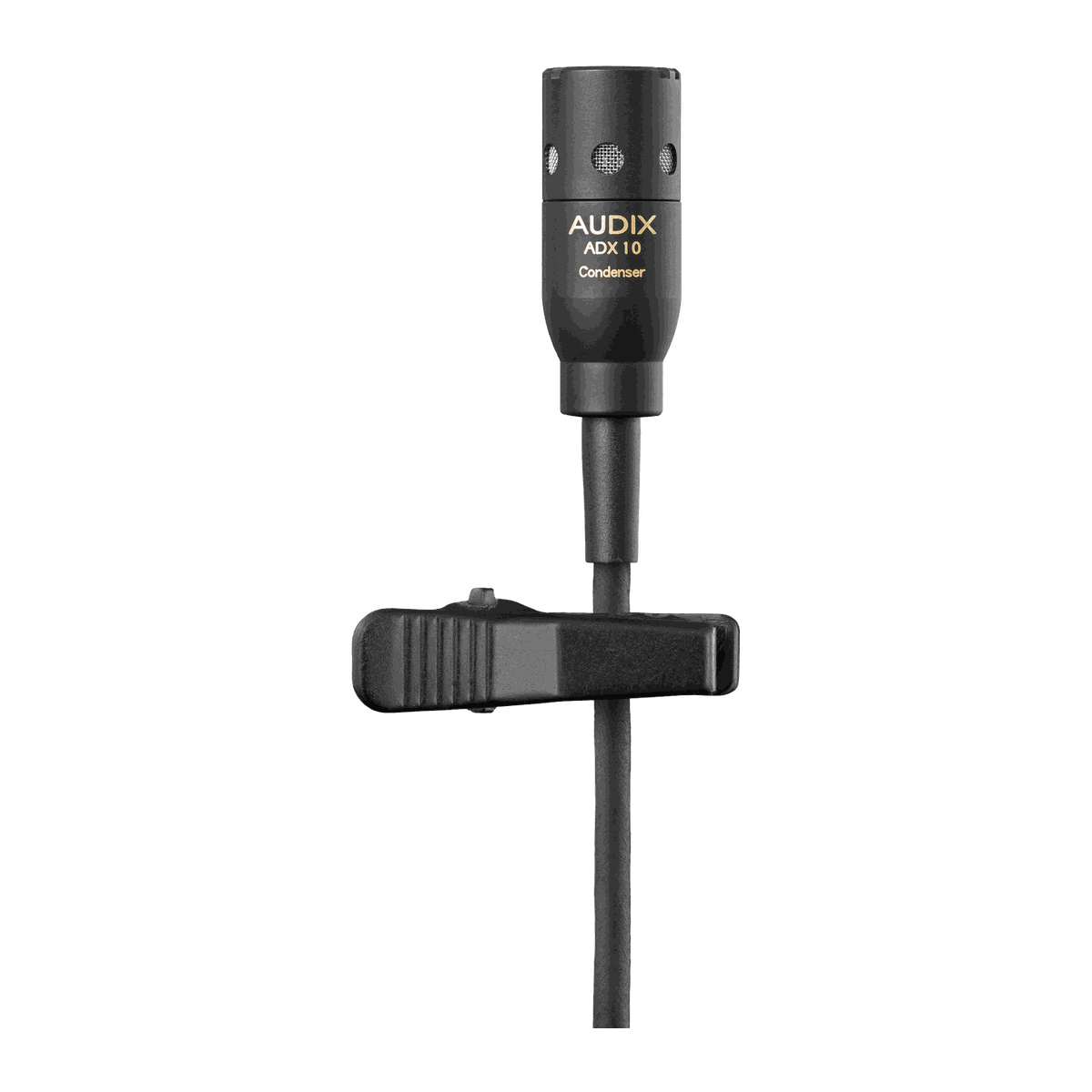

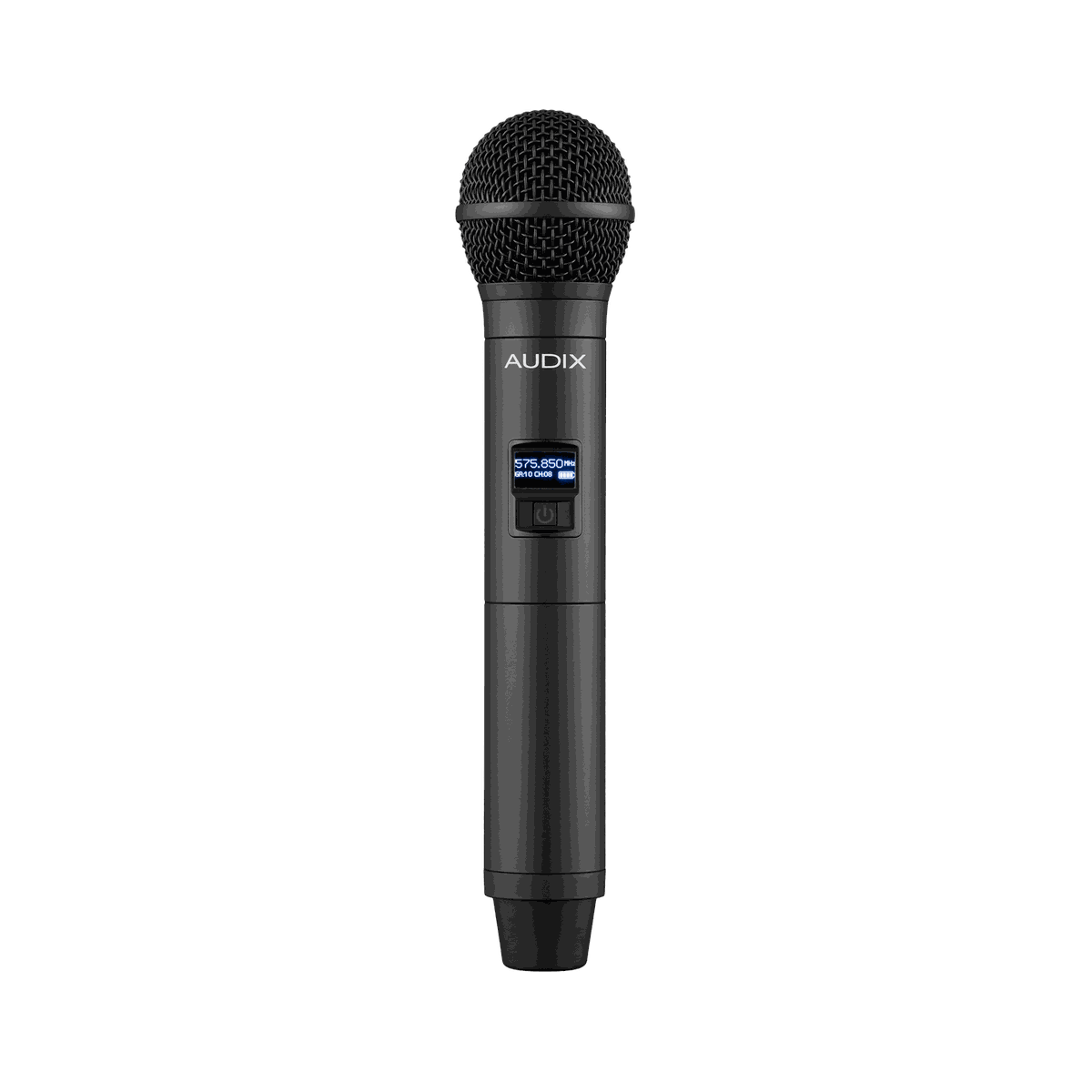

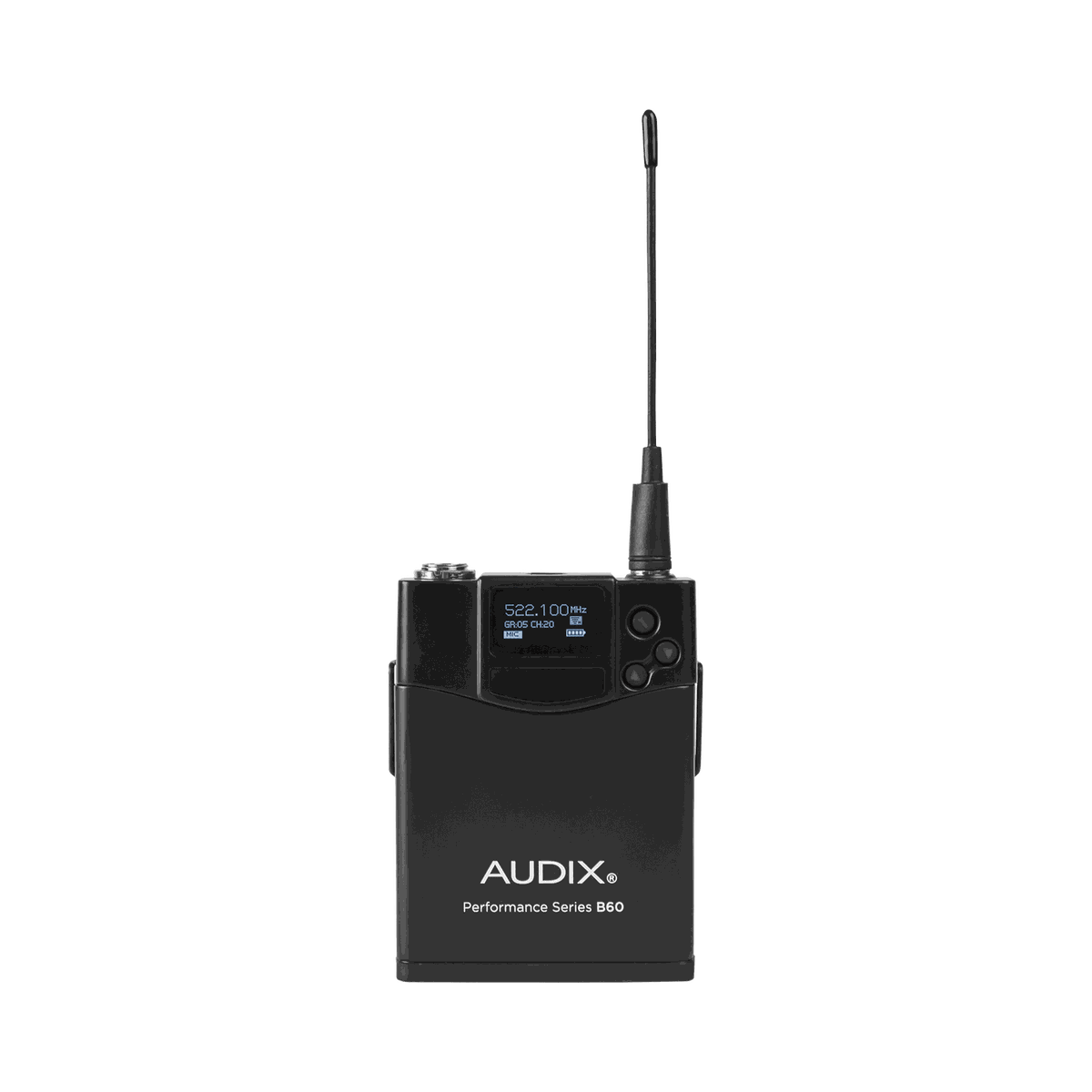

The Audix AP62C210 is a Performance Series analog UHF wireless system built around an OM2 handheld transmitter and a B60 bodypack with an ADX10 lavalier, on two channels. The AP62 is two true-diversity channels in a single rack space. Each channel has its own pair of tuners across the full 64 MHz band with 207 pre-coordinated frequencies, and up to 12 systems can run together. A rack kit with BNC cables for front-mounting the antennas is included.

Both transmitters run at once on the dual-channel receiver. That is the arrangement for a presentation or meeting where the lead speaker keeps a lavalier and a handheld travels around the stage or the audience for questions.

ReceiverR62 dual-channel, dual tuner true diversity
Frequency Range522 MHz - 586 MHz
Switchable Frequencies207 pre-coordinated, 2,560 tunable at 25 kHz spacing
Simultaneous SystemsUp to 12
Audio Frequency Response45 Hz - 18 kHz
Signal-to-Noise Ratio112 dB at 30 kHz deviation (A-weighted)
Output ConnectorsXLR balanced and 1/4 in unbalanced
TransmittersH60 handheld and B60 bodypack, 10 mW / 30 mW RF
Transmitter Battery2 x AA each, approximately 14 hours
Overview of the 60 Series Audix Performance Wireless Microphone Systems
