Audix AP61SAX True Diversity Wireless System for Sax and Brass

The Audix AP61SAX is a Performance Series analog UHF wireless system built around the ADX20i clip-on cardioid condenser. The AP61 is the true-diversity tier. Two independent tuners cover the full 64 MHz of 522 to 586 MHz with 207 pre-coordinated frequencies and 2,560 tunable steps, so up to 24 systems can coexist. A rack kit with BNC cables for front-mounting the antennas is in the box.

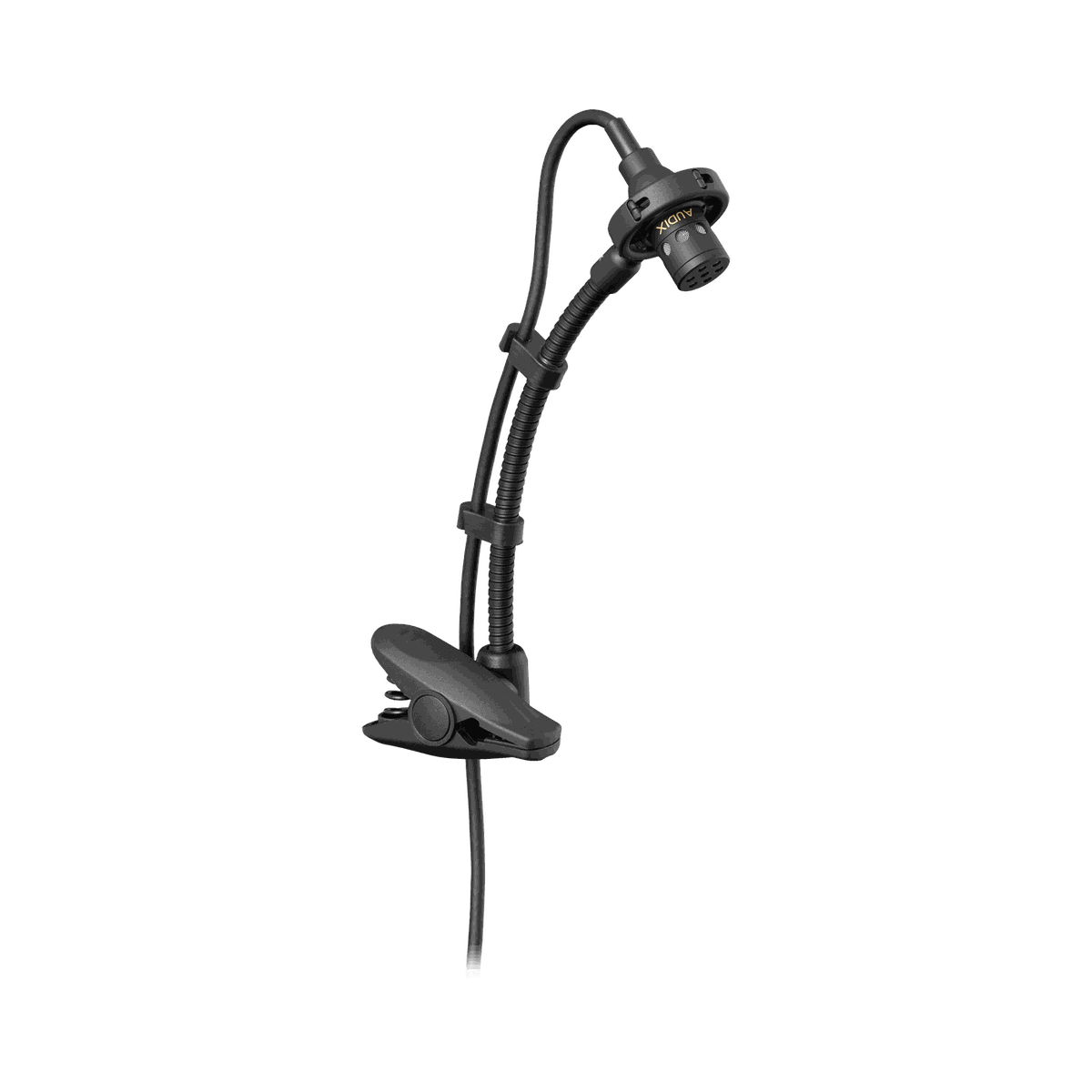

The ADX20i mounts on the bell of a horn with a spring-tension, shock-mounted clip and a flexible gooseneck for precise placement. It handles high SPL and reproduces brass and reed instruments naturally at very close working distances.

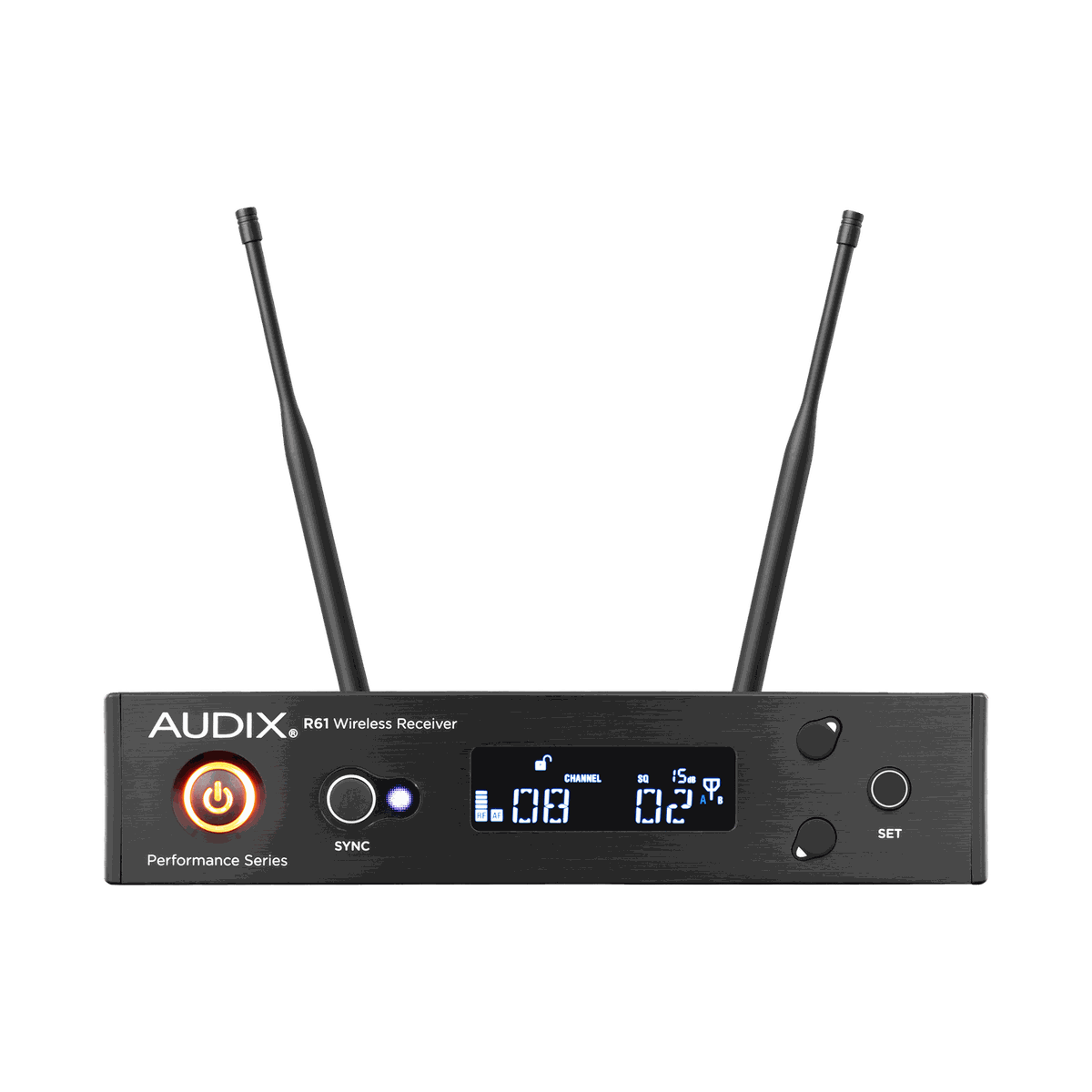

Receiver	R61 dual tuner, true diversity
Frequency Range	522 MHz - 586 MHz
Switchable Frequencies	207 pre-coordinated, 2,560 tunable at 25 kHz spacing
Simultaneous Systems	Up to 24
Audio Frequency Response	45 Hz - 18 kHz
Signal-to-Noise Ratio	112 dB at 30 kHz deviation (A-weighted)
Output Connectors	XLR balanced and 1/4 in unbalanced

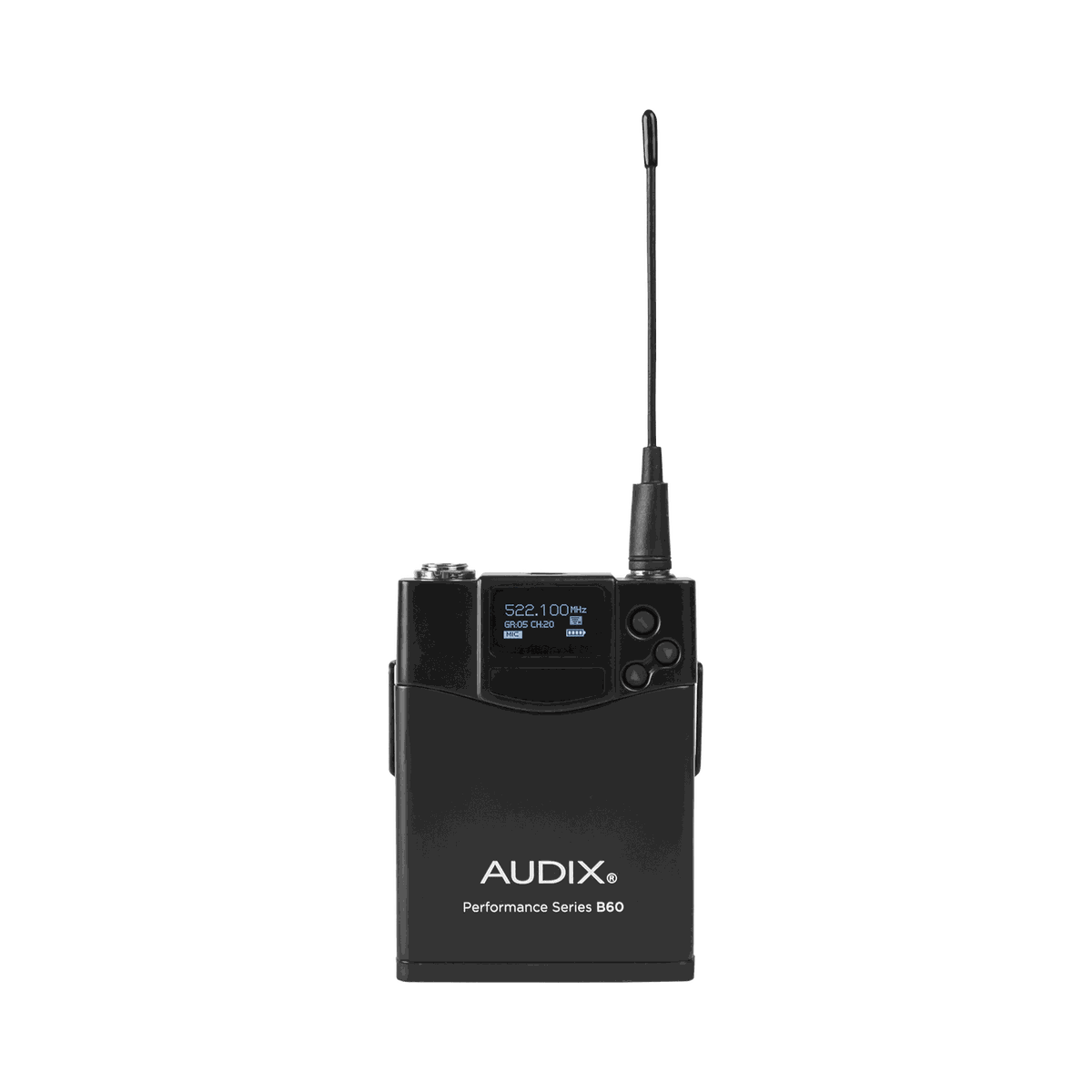

Transmitter	B60 bodypack, 3-pin mini-XLR input, 10 mW / 30 mW RF
Transmitter Battery	2 x AA, approximately 14 hours
