Audix AP61OM5 True Diversity Handheld Wireless System

The Audix AP61OM5 is a Performance Series analog UHF wireless system built around the Audix OM5 handheld dynamic. The AP61 is the true-diversity tier. Two independent tuners cover the full 64 MHz of 522 to 586 MHz with 207 pre-coordinated frequencies and 2,560 tunable steps, so up to 24 systems can coexist. A rack kit with BNC cables for front-mounting the antennas is in the box.

The OM5 has been one of the most respected handheld dynamics on the market since the mid-1990s, on stage, in studios and for broadcast. It is known for clarity, feedback resistance, and the ability to handle SPL in excess of 144 dB without distortion.

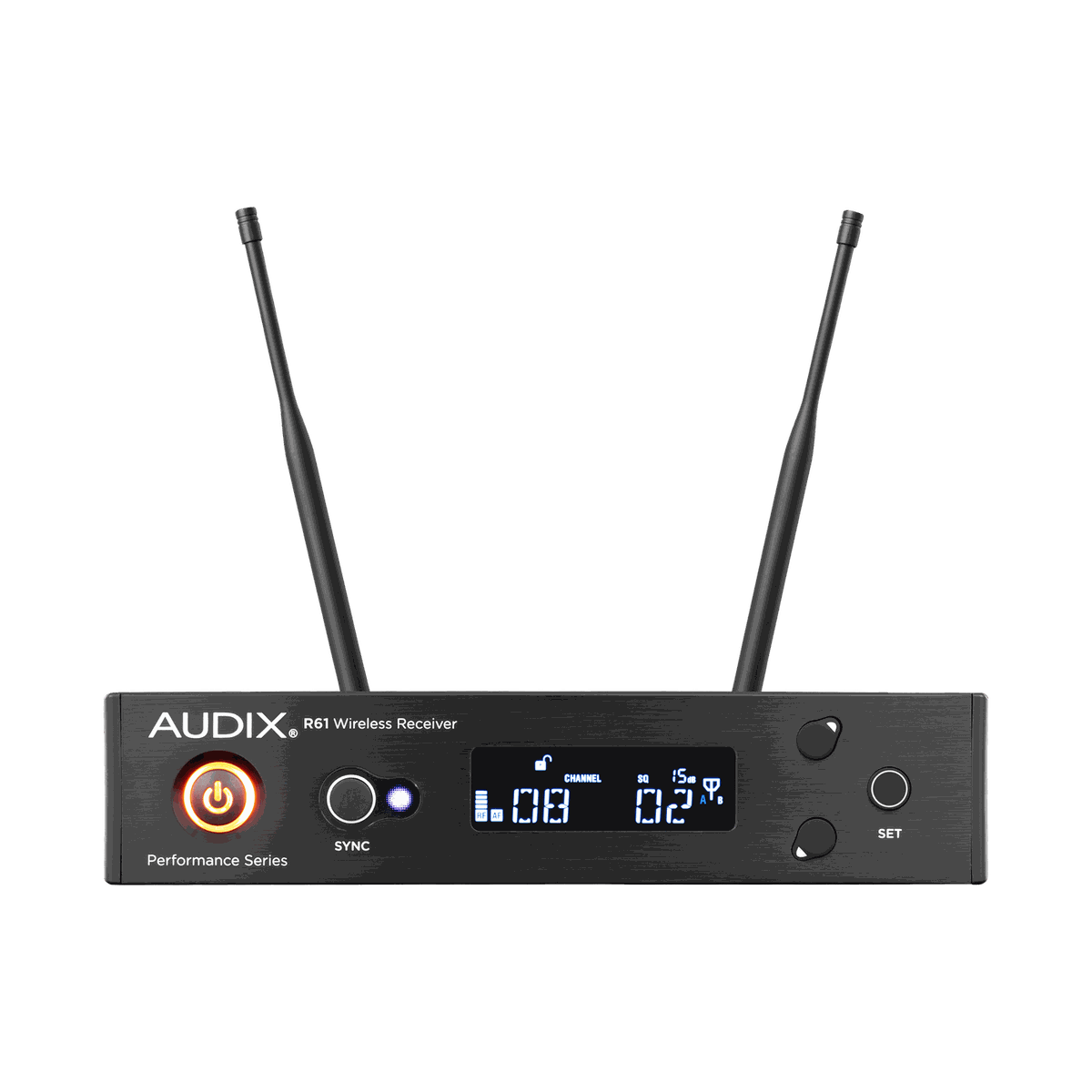

Receiver	R61 dual tuner, true diversity
Frequency Range	522 MHz - 586 MHz
Switchable Frequencies	207 pre-coordinated, 2,560 tunable at 25 kHz spacing
Simultaneous Systems	Up to 24
Audio Frequency Response	45 Hz - 18 kHz
Signal-to-Noise Ratio	112 dB at 30 kHz deviation (A-weighted)
Output Connectors	XLR balanced and 1/4 in unbalanced

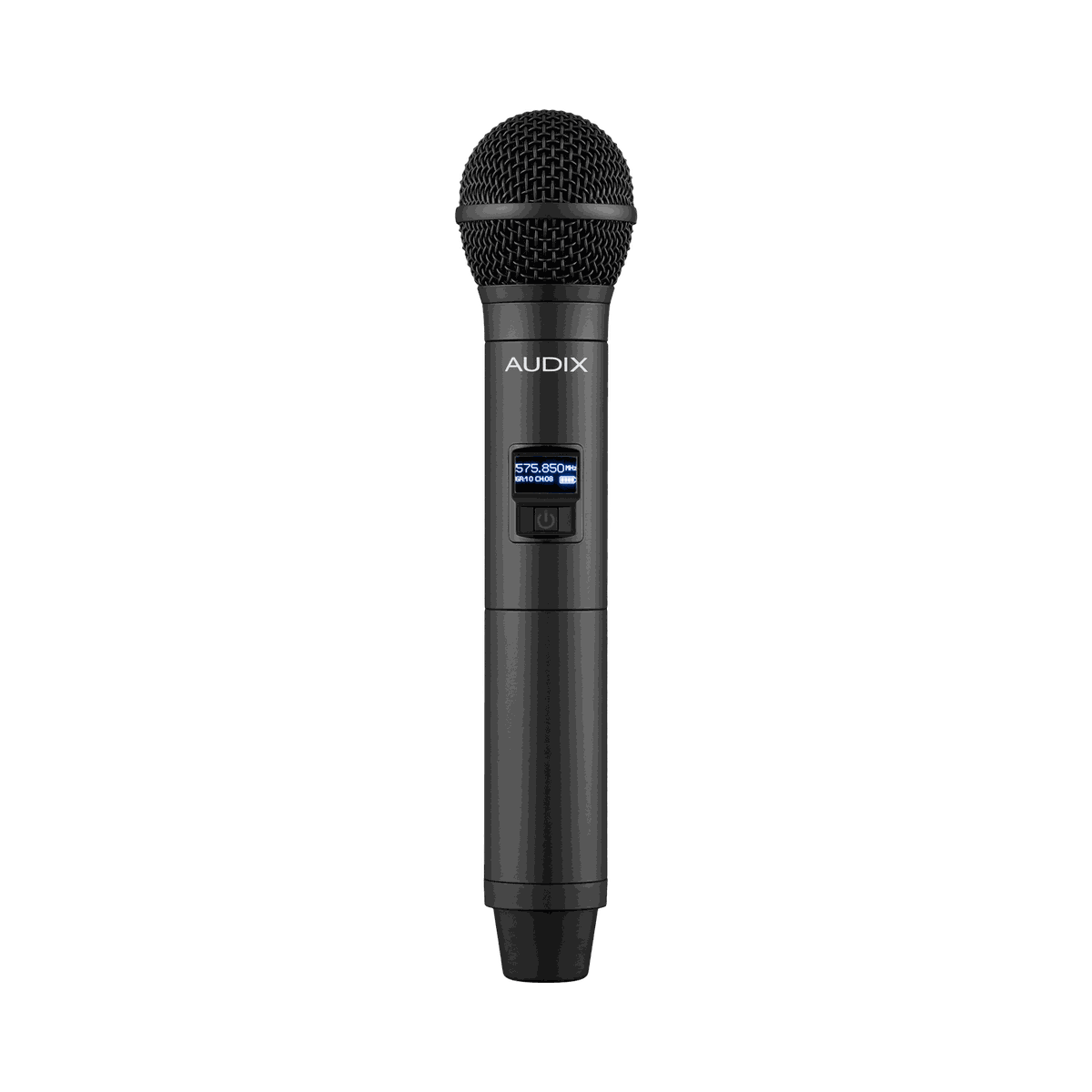

Transmitter	H60 handheld, 53 mm diameter x 265 mm, 10 mW / 30 mW RF
Transmitter Battery	2 x AA, approximately 14 hours
