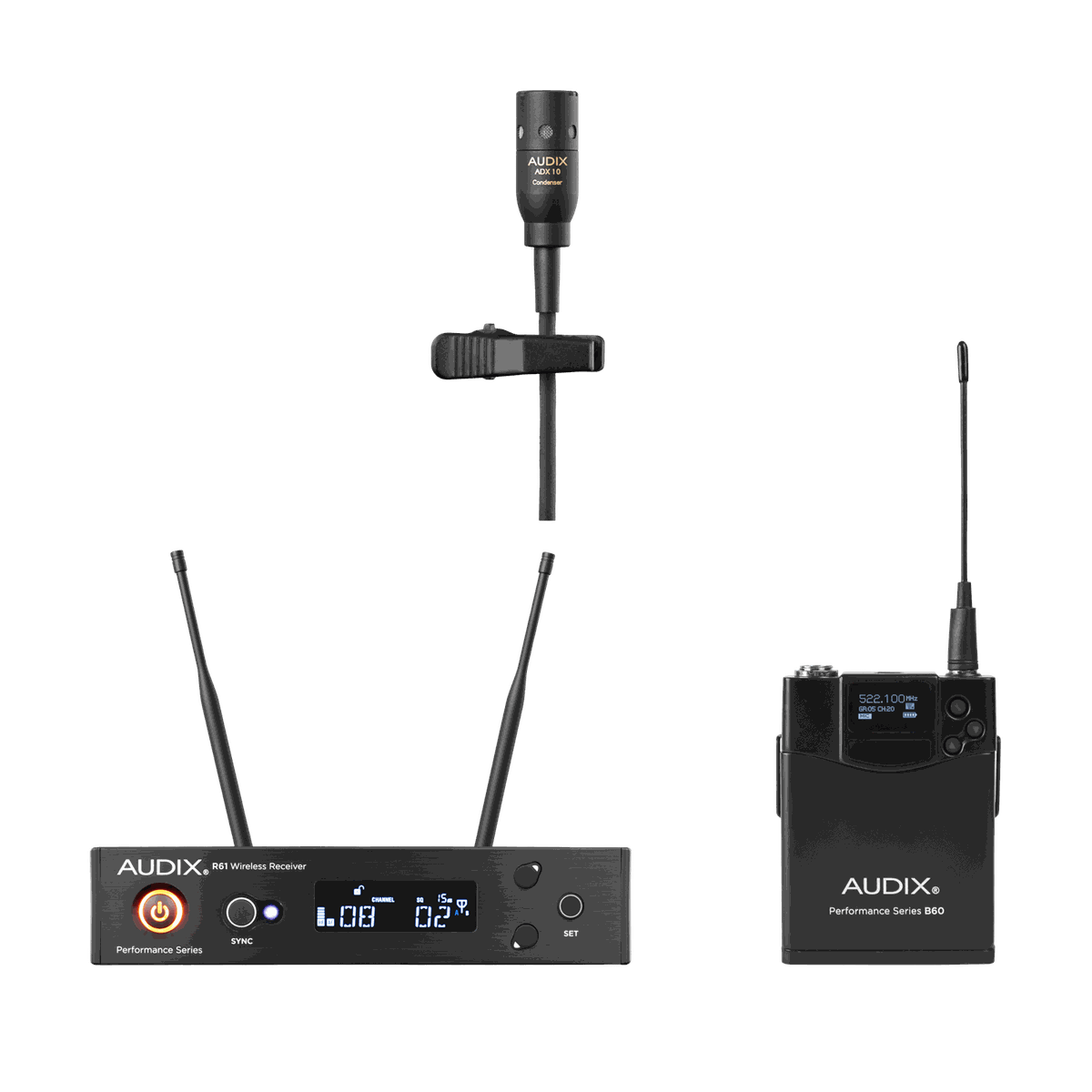

Audix AP61L10 True Diversity Wireless Lavalier System

The Audix AP61L10 is a Performance Series analog UHF wireless system built around the ADX10 cardioid miniature condenser lavalier. The AP61 is the true-diversity tier. Two independent tuners cover the full 64 MHz of 522 to 586 MHz with 207 pre-coordinated frequencies and 2,560 tunable steps, so up to 24 systems can coexist. A rack kit with BNC cables for front-mounting the antennas is in the box.

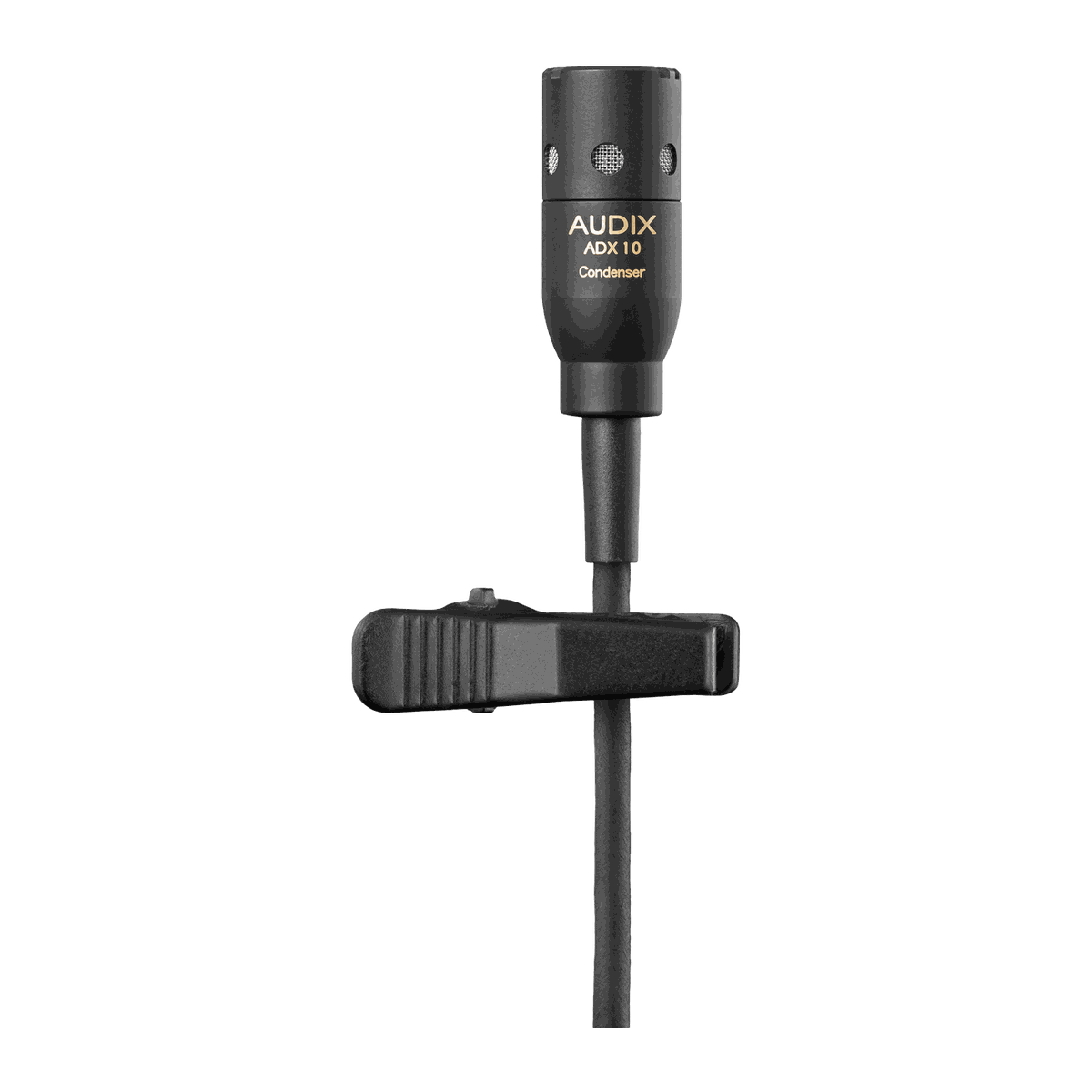

The ADX10 is a low-profile lavalier for speech, presentation, and theatre. It captures a voice accurately from a comfortable 4 to 8 in and stays resistant to feedback, which is what keeps it usable on a live lectern rather than only in a quiet room.

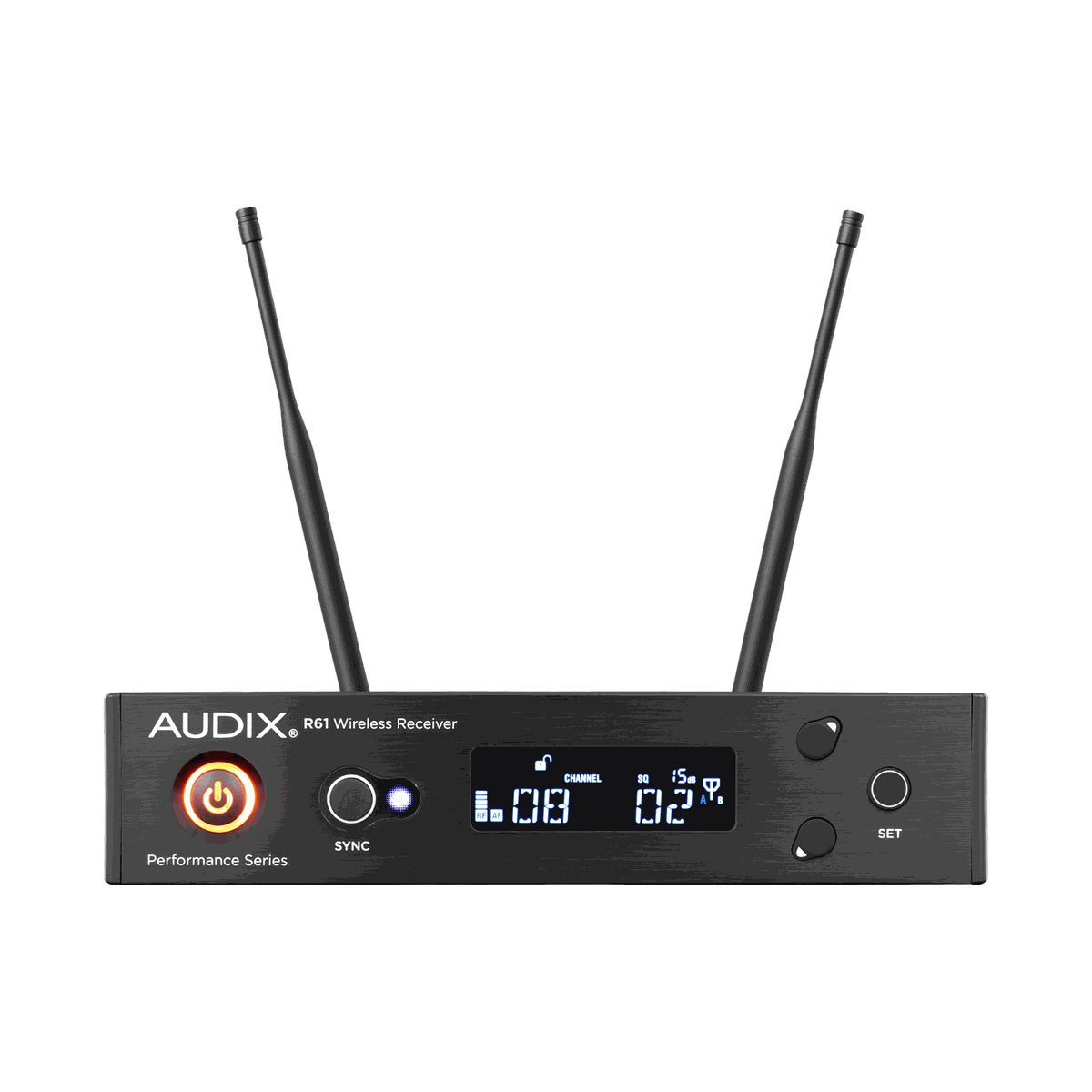

Receiver	R61 dual tuner, true diversity
Frequency Range	522 MHz - 586 MHz
Switchable Frequencies	207 pre-coordinated, 2,560 tunable at 25 kHz spacing
Simultaneous Systems	Up to 24
Audio Frequency Response	45 Hz - 18 kHz
Signal-to-Noise Ratio	112 dB at 30 kHz deviation (A-weighted)
Output Connectors	XLR balanced and 1/4 in unbalanced

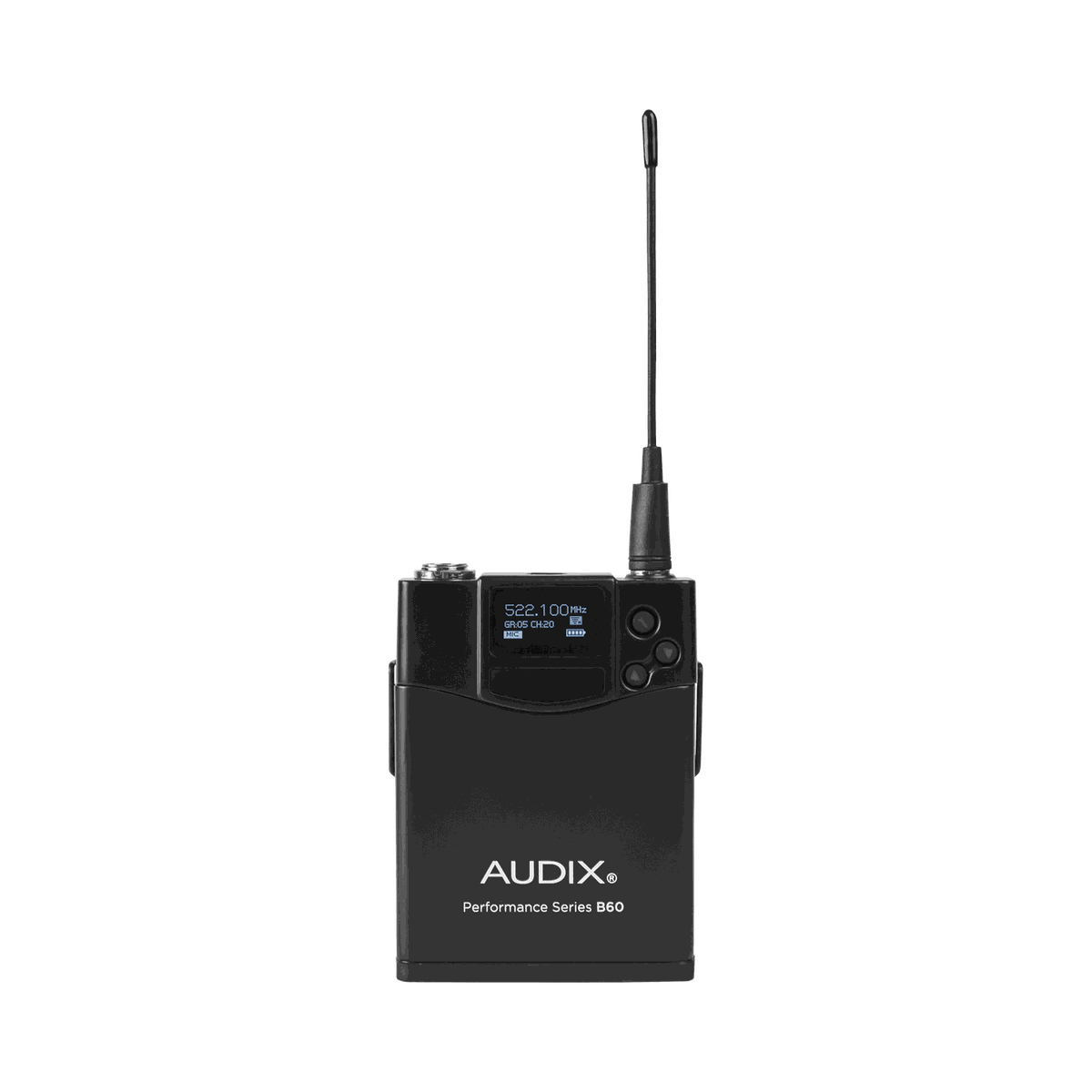

Transmitter	B60 bodypack, 3-pin mini-XLR input, 10 mW / 30 mW RF
Transmitter Battery	2 x AA, approximately 14 hours
