Audix AP62BP Dual-Channel True Diversity Wireless Bodypack System

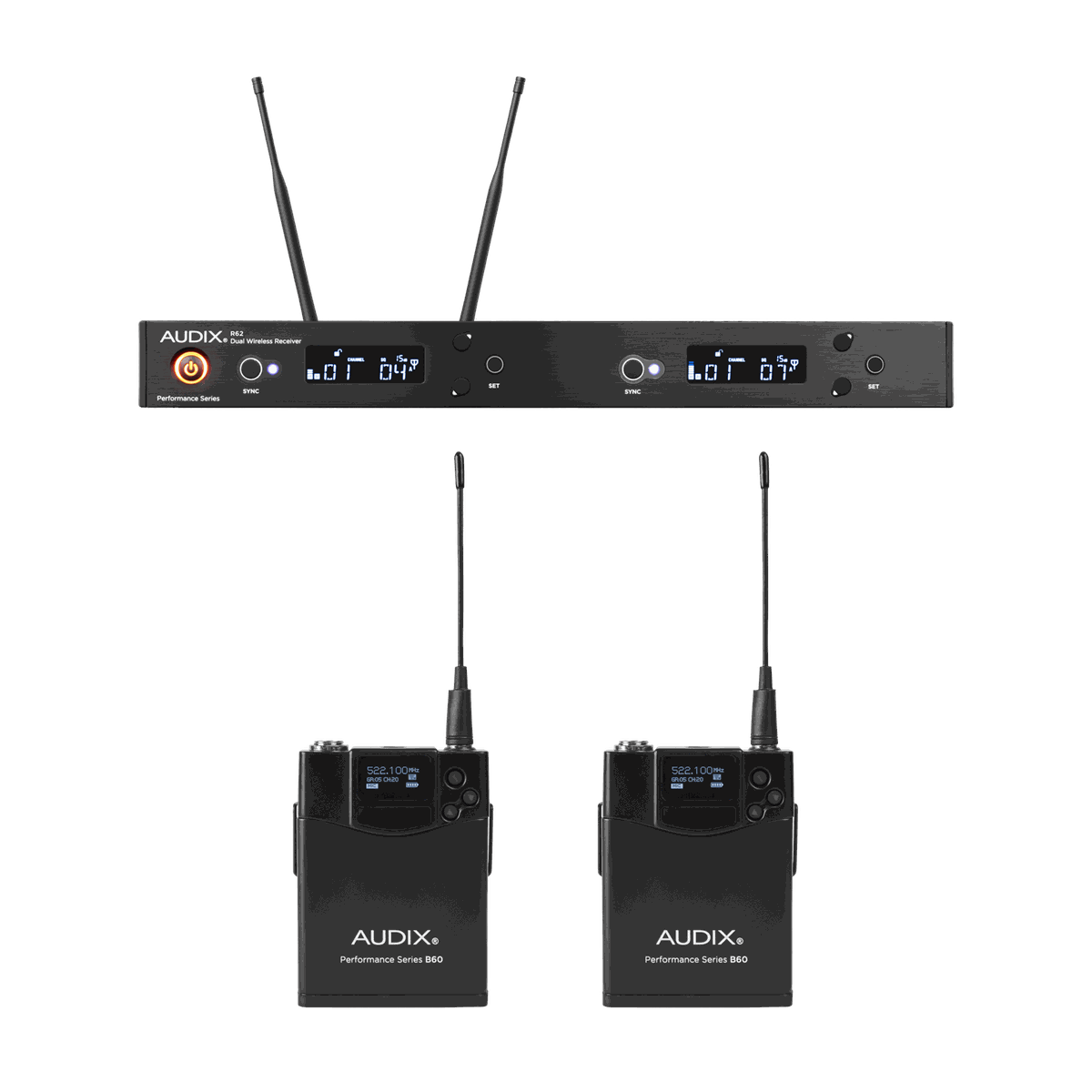

The Audix AP62BP is a Performance Series analog UHF wireless system built around the B60 bodypack transmitter. The AP62 is two true-diversity channels in a single rack space. Each channel has its own pair of tuners across the full 64 MHz band with 207 pre-coordinated frequencies, and up to 12 systems can run together. A rack kit with BNC cables for front-mounting the antennas is included.

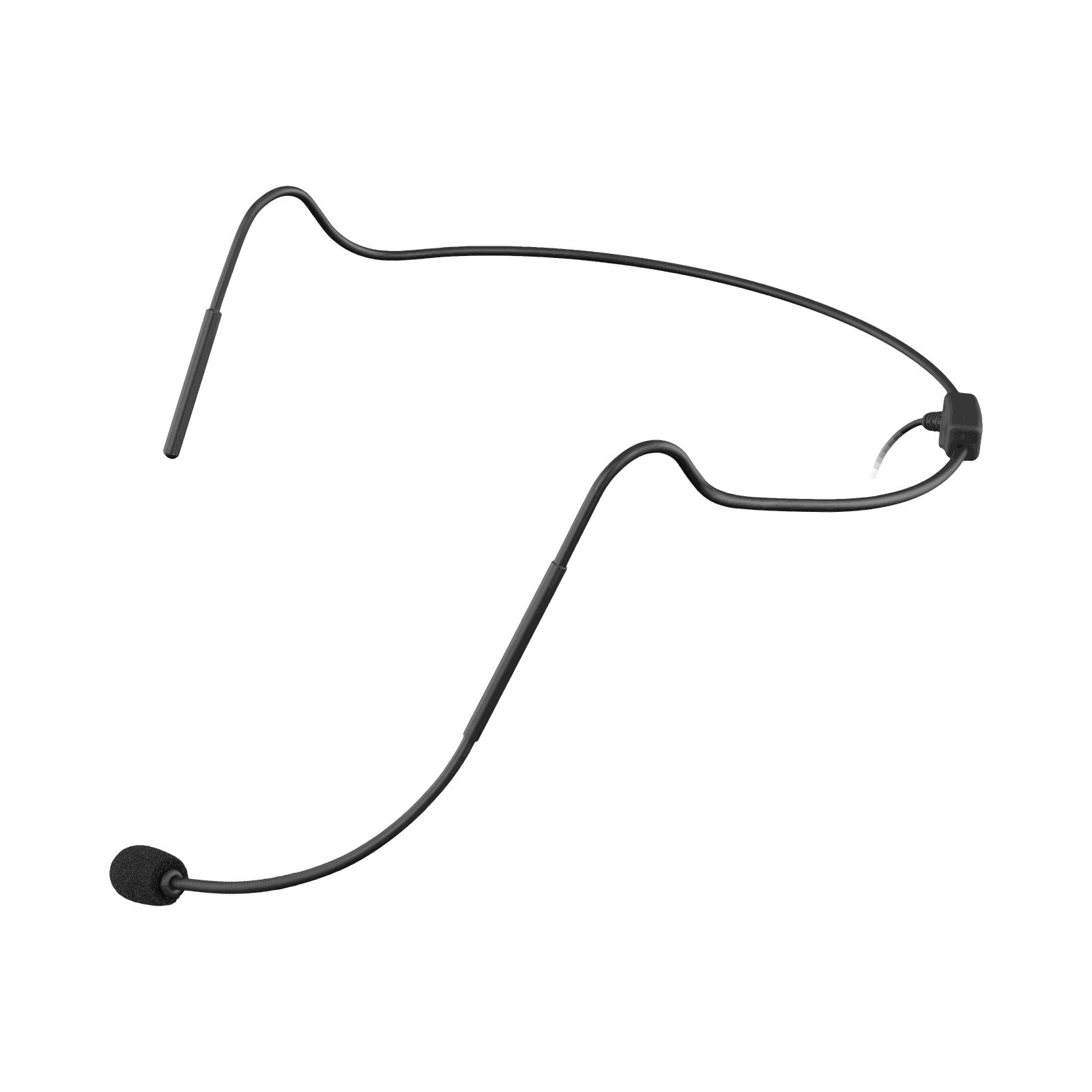

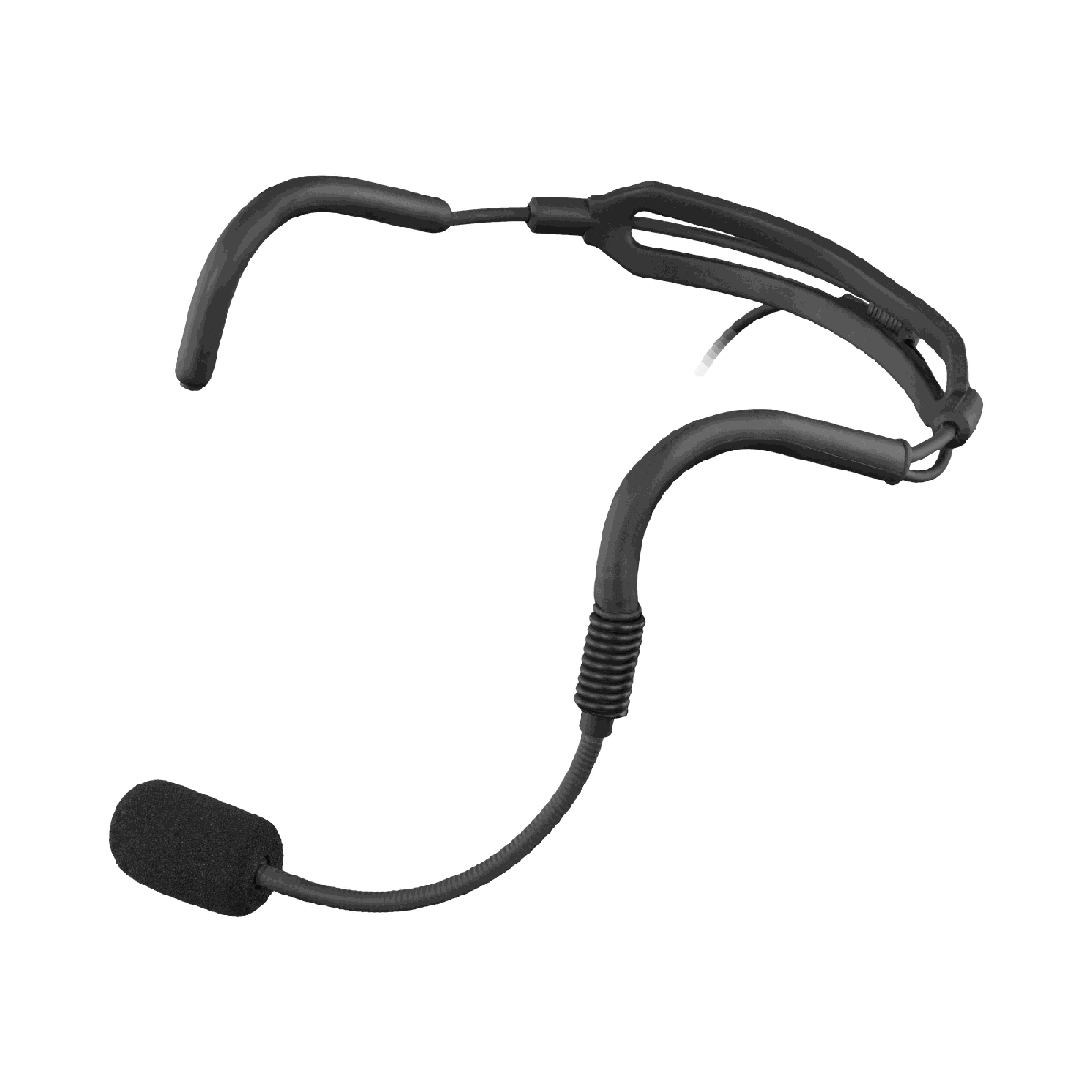

The B60 takes any lavalier, headworn, or instrument microphone in the Audix line on its 3-pin mini-XLR input, and it will take a guitar or bass just as happily. Gain is switchable at 0, -6, -12 and -24 dB so a hot instrument pickup and a quiet lavalier can both sit correctly.

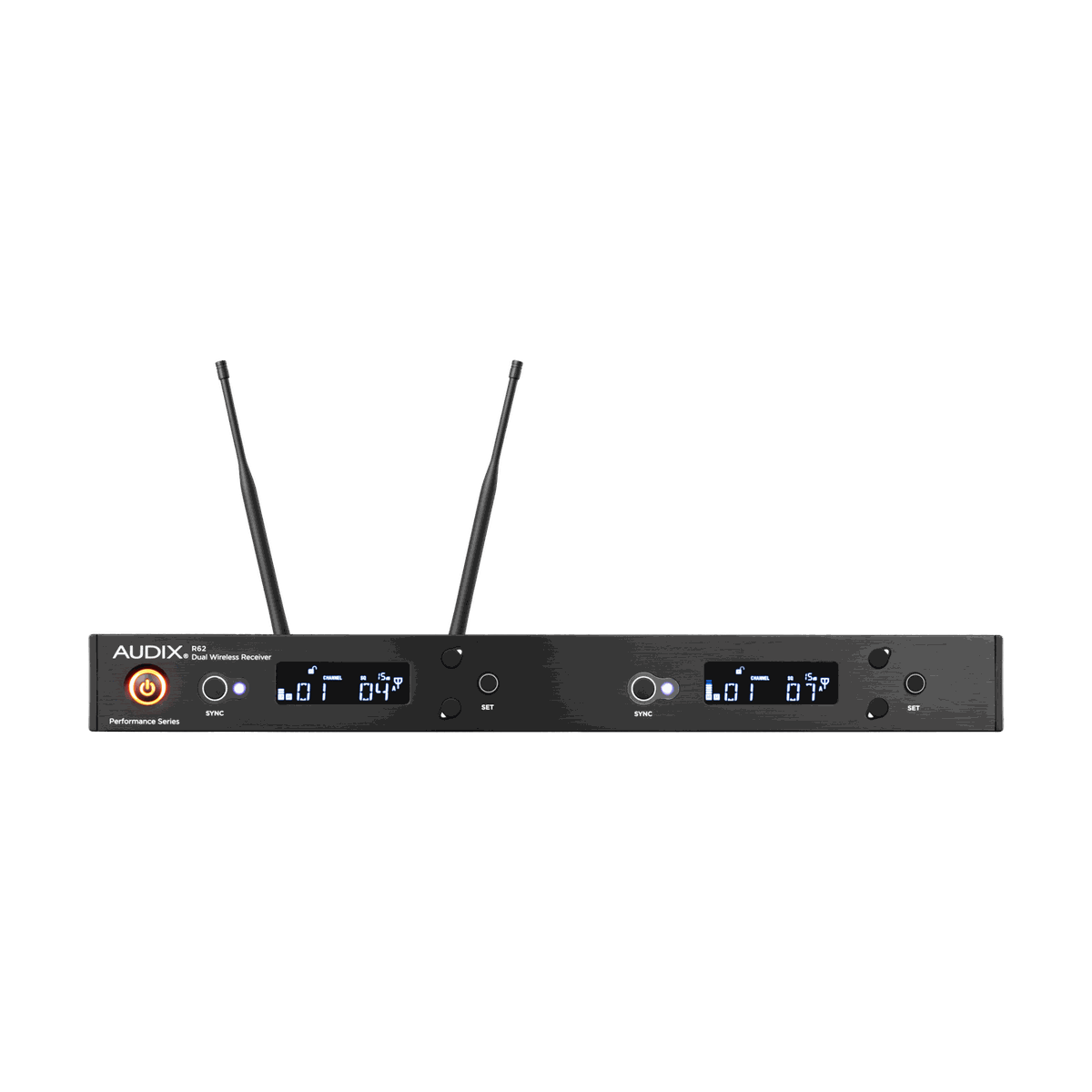

Receiver	R62 dual-channel, dual tuner true diversity
Frequency Range	522 MHz - 586 MHz
Switchable Frequencies	207 pre-coordinated, 2,560 tunable at 25 kHz spacing
Simultaneous Systems	Up to 12
Audio Frequency Response	45 Hz - 18 kHz
Signal-to-Noise Ratio	112 dB at 30 kHz deviation (A-weighted)
Output Connectors	XLR balanced and 1/4 in unbalanced

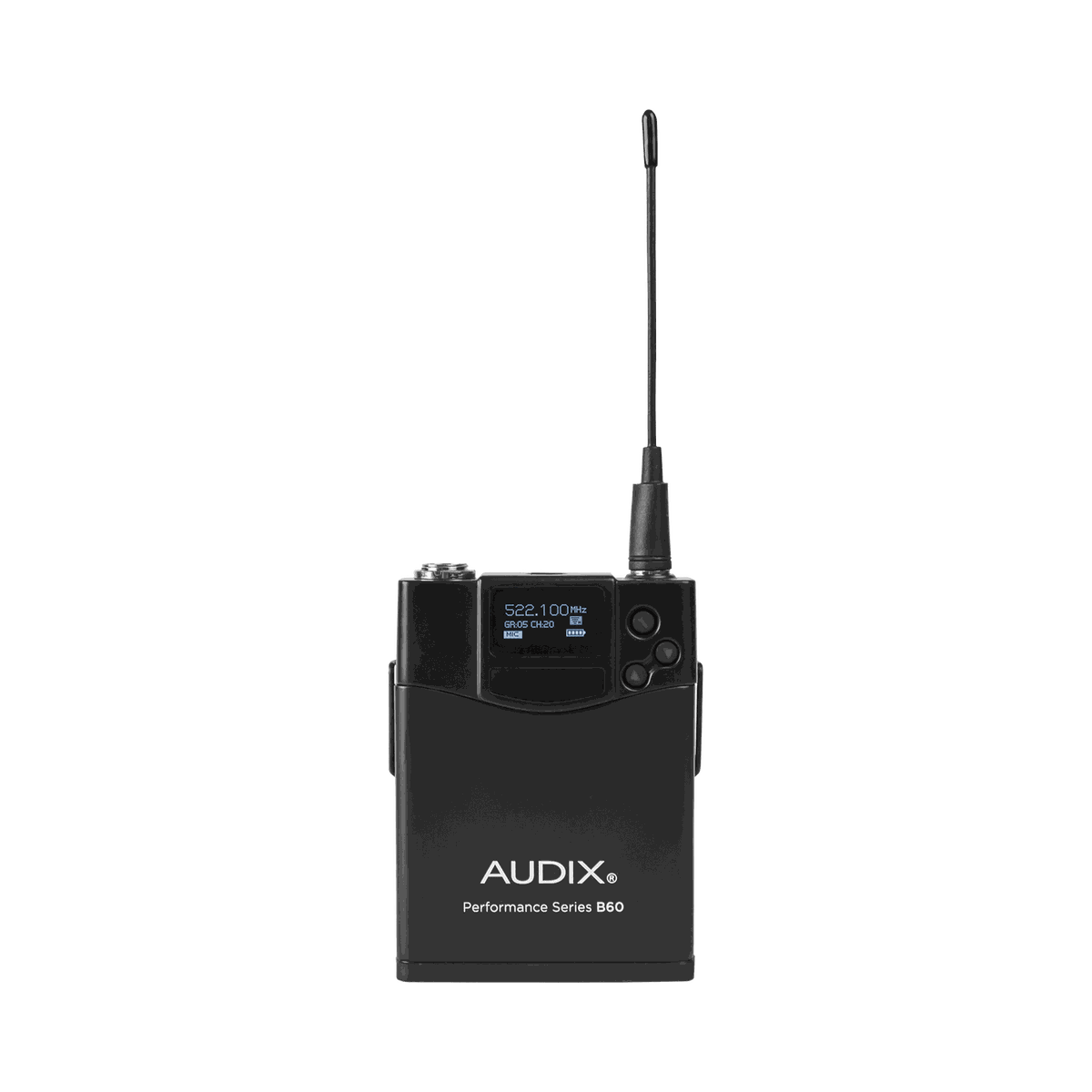

Transmitter	B60 bodypack, 3-pin mini-XLR input, 10 mW / 30 mW RF
Transmitter Battery	2 x AA, approximately 14 hours
