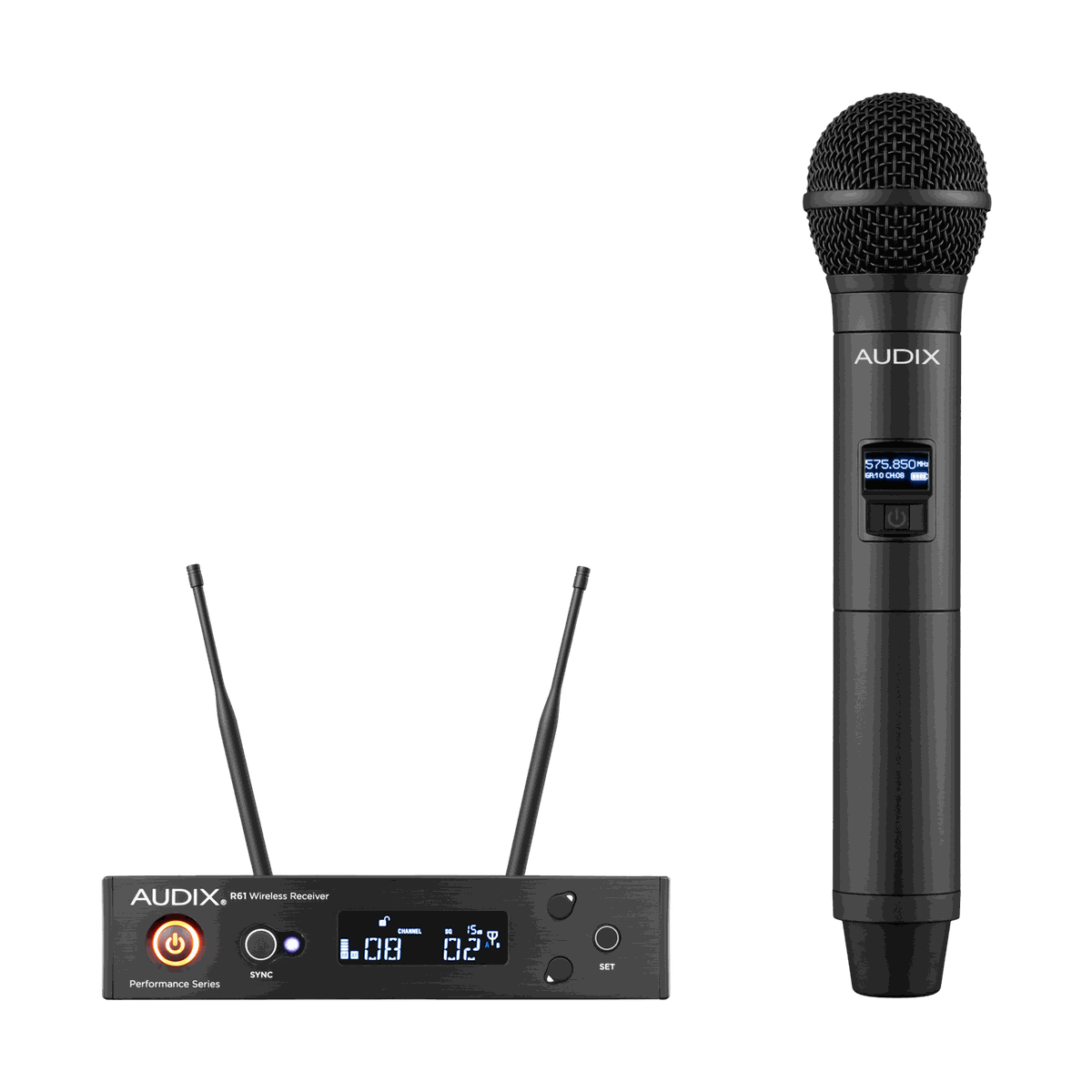

Audix AP61OM2 True Diversity Handheld Wireless System

The Audix AP61OM2 is a Performance Series analog UHF wireless system built around the Audix OM2 handheld dynamic. The AP61 is the true-diversity tier. Two independent tuners cover the full 64 MHz of 522 to 586 MHz with 207 pre-coordinated frequencies and 2,560 tunable steps, so up to 24 systems can coexist. A rack kit with BNC cables for front-mounting the antennas is in the box.

The OM2 is Audix's best-selling vocal capsule: slight bass proximity, a tailored midrange, and a full-bodied voice suited to small and mid-size PA systems. It isolates well on a crowded stage, rejects feedback, and takes high SPL without breaking up.

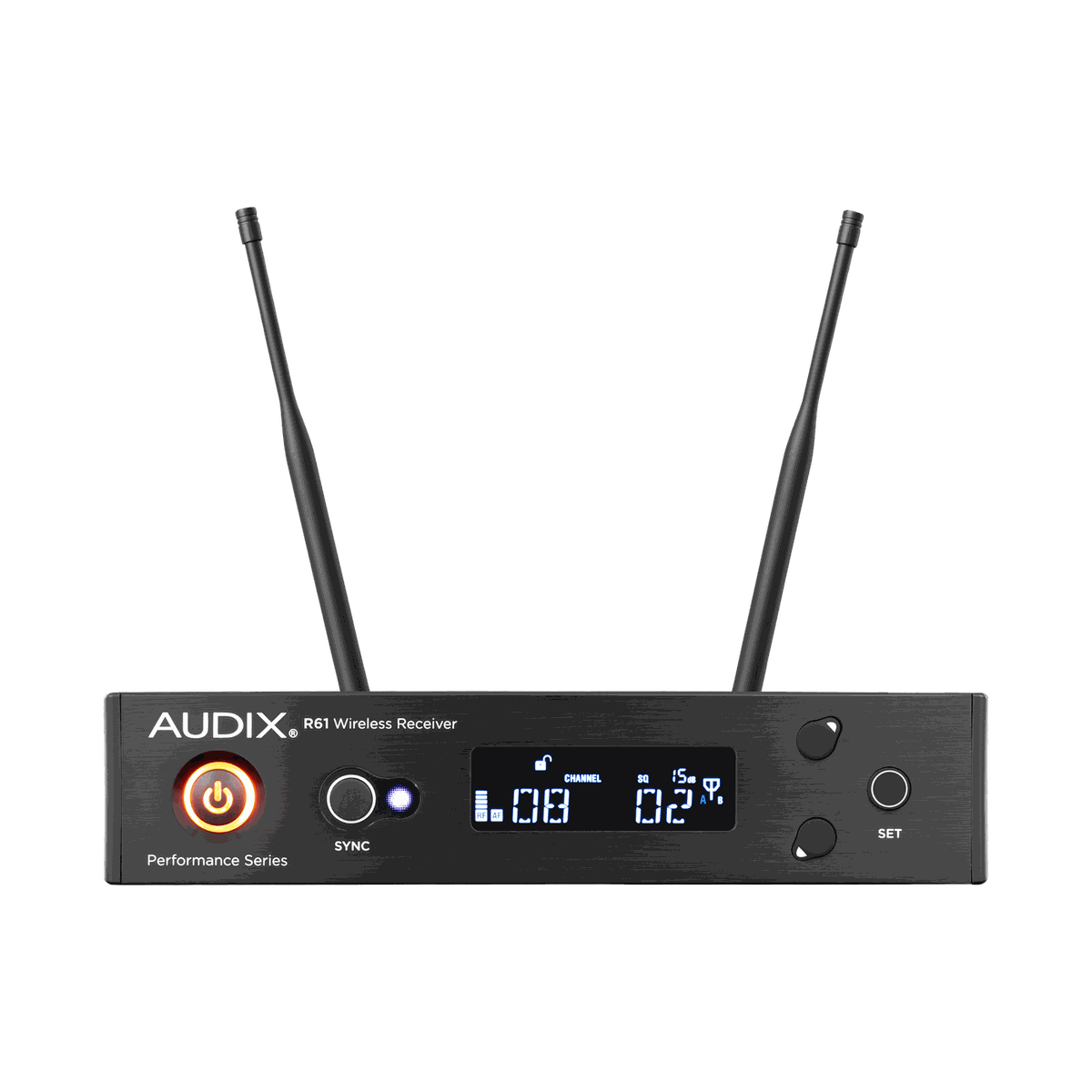

Receiver	R61 dual tuner, true diversity
Frequency Range	522 MHz - 586 MHz
Switchable Frequencies	207 pre-coordinated, 2,560 tunable at 25 kHz spacing
Simultaneous Systems	Up to 24
Audio Frequency Response	45 Hz - 18 kHz
Signal-to-Noise Ratio	112 dB at 30 kHz deviation (A-weighted)
Output Connectors	XLR balanced and 1/4 in unbalanced

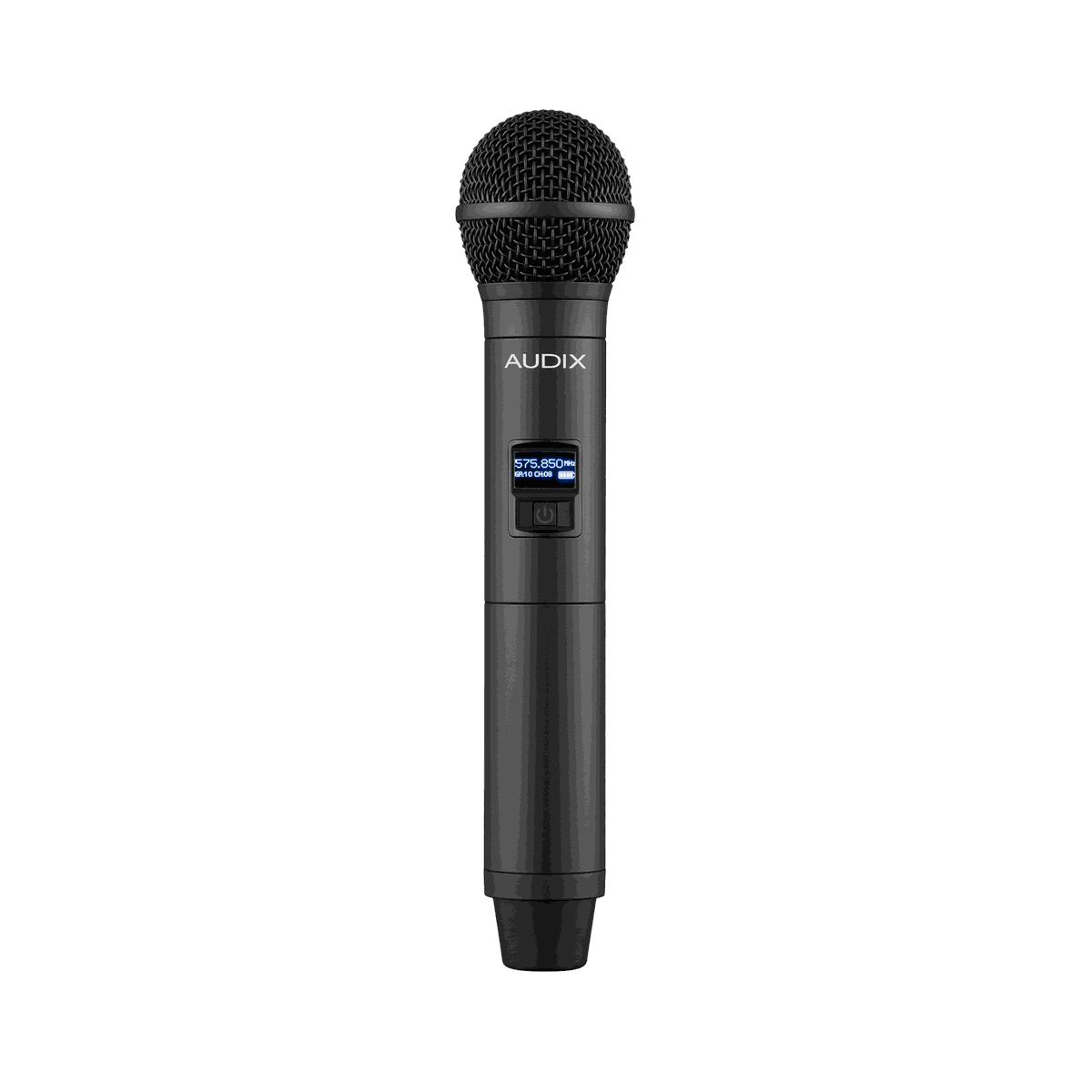

Transmitter	H60 handheld, 53 mm diameter x 265 mm, 10 mW / 30 mW RF
Transmitter Battery	2 x AA, approximately 14 hours
