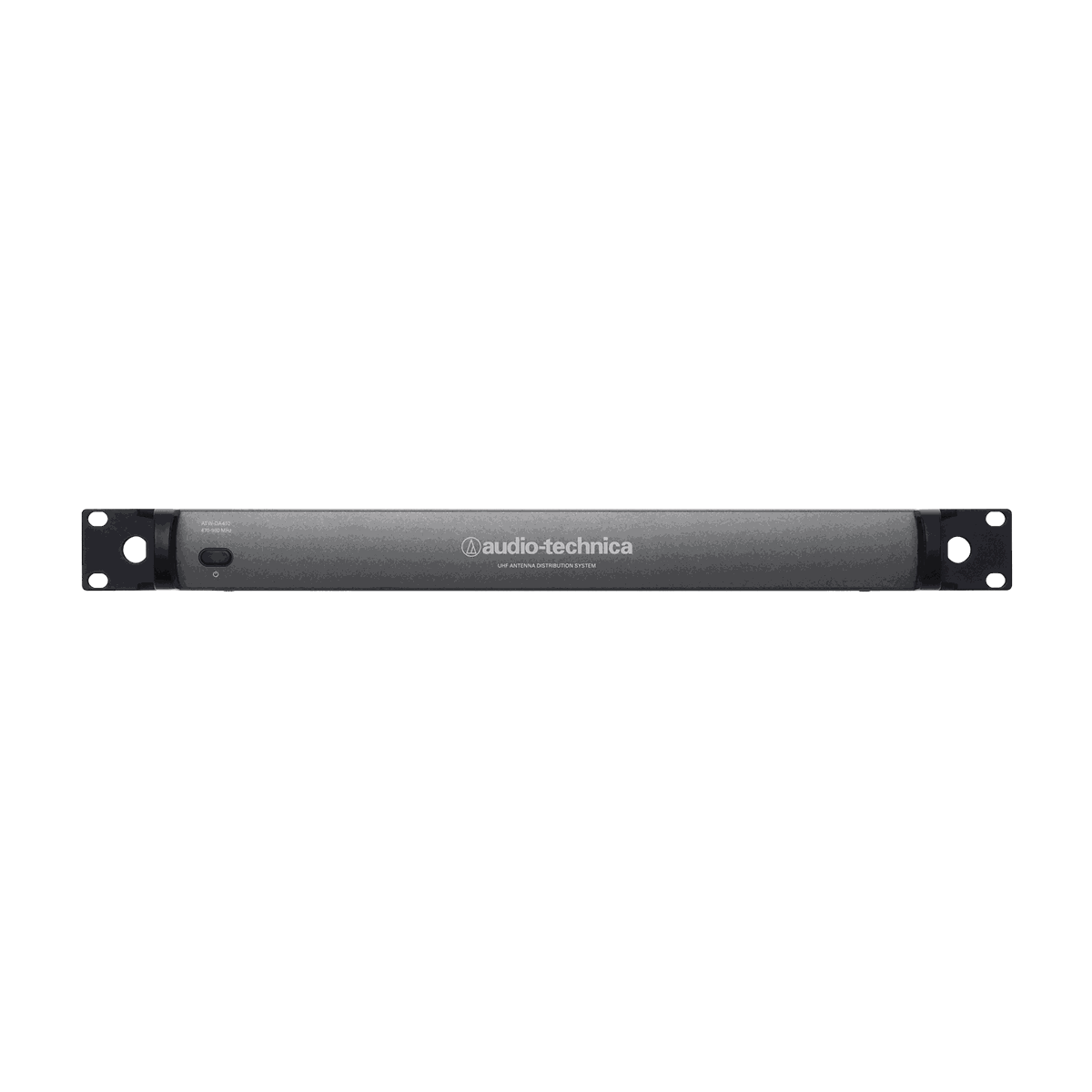

Audio-Technica ATW-DA410 Antenna Distribution System

The ATW-DA410 is the antenna distribution system for a wireless deployment big enough to fill a rack: dual 1:4 active unity-gain splitters mean one pair of antennas, passive or active, can feed up to four receivers per channel, or up to eight receivers total across both channels. A built-in 1:2 passive splitter and 2:1 combiner on each channel add flexibility for combining or dividing feeds as a system's channel count grows or shrinks show to show.

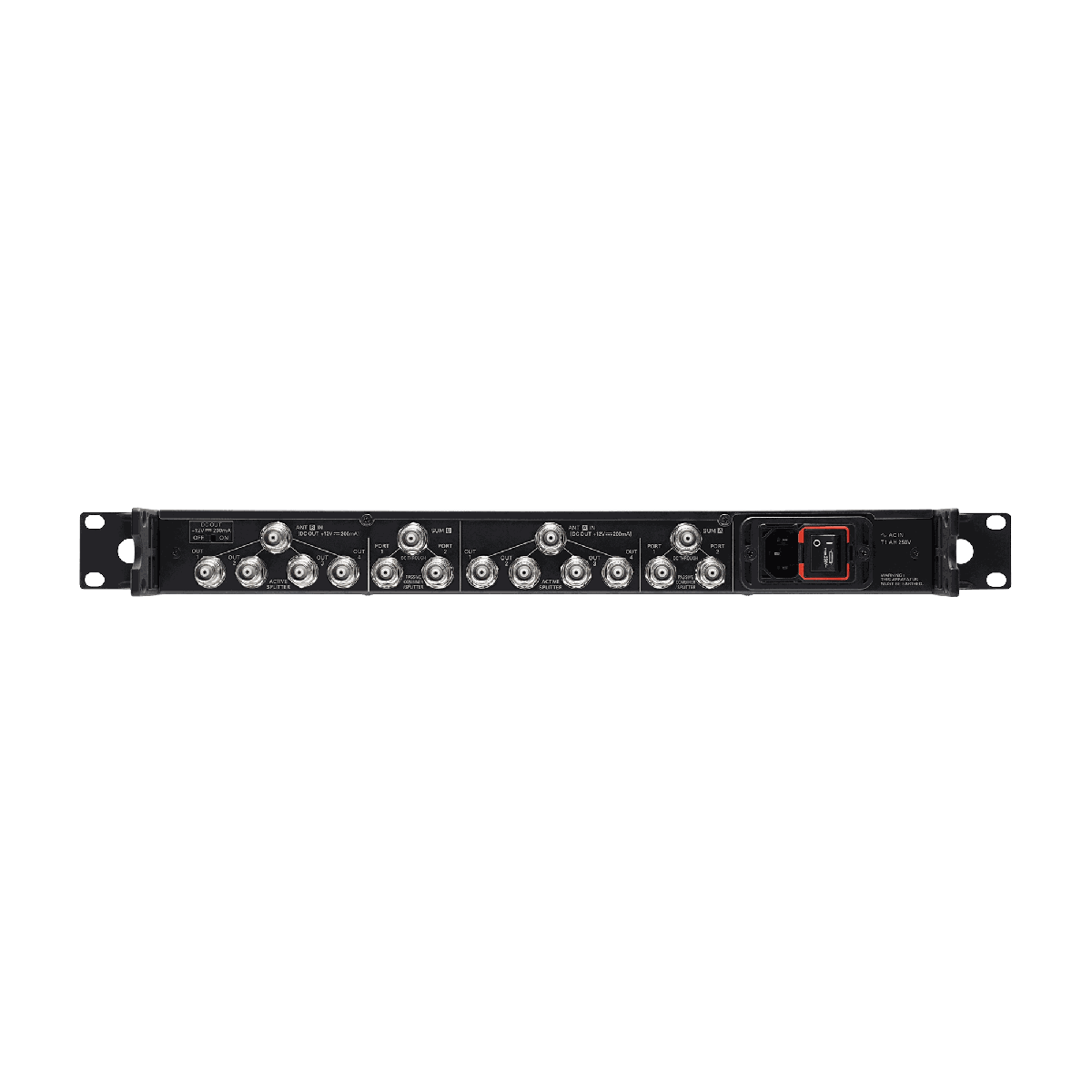

Housed in an all-metal 1 RU chassis with reinforced mounting ears and optional rear rack support, it's built to live in a touring rack rather than a temporary setup. A rear-panel switch supplies up to 200mA of +12V DC to power active antennas when needed, and it ships with an IEC power cable, 12 BNC cables, and two BNC connectors, so a rack can go from box to patched in one session.

Type	Active unity-gain diversity antenna distribution system
Frequency Range	470-990 MHz
Capacity	1 antenna pair feeds up to 8 wireless receivers (4 per channel)
System Gain / Insertion Loss	0 dB typical gain / 4 dB typical insertion loss
Antenna Power	Switchable +12V DC, up to 200 mA, for active antennas
Rack Format	1 RU, 19-inch, all-metal chassis
Power	120V AC (60 Hz), 10W consumption
Included	IEC power cable, 12 BNC cables, 2 BNC connectors
