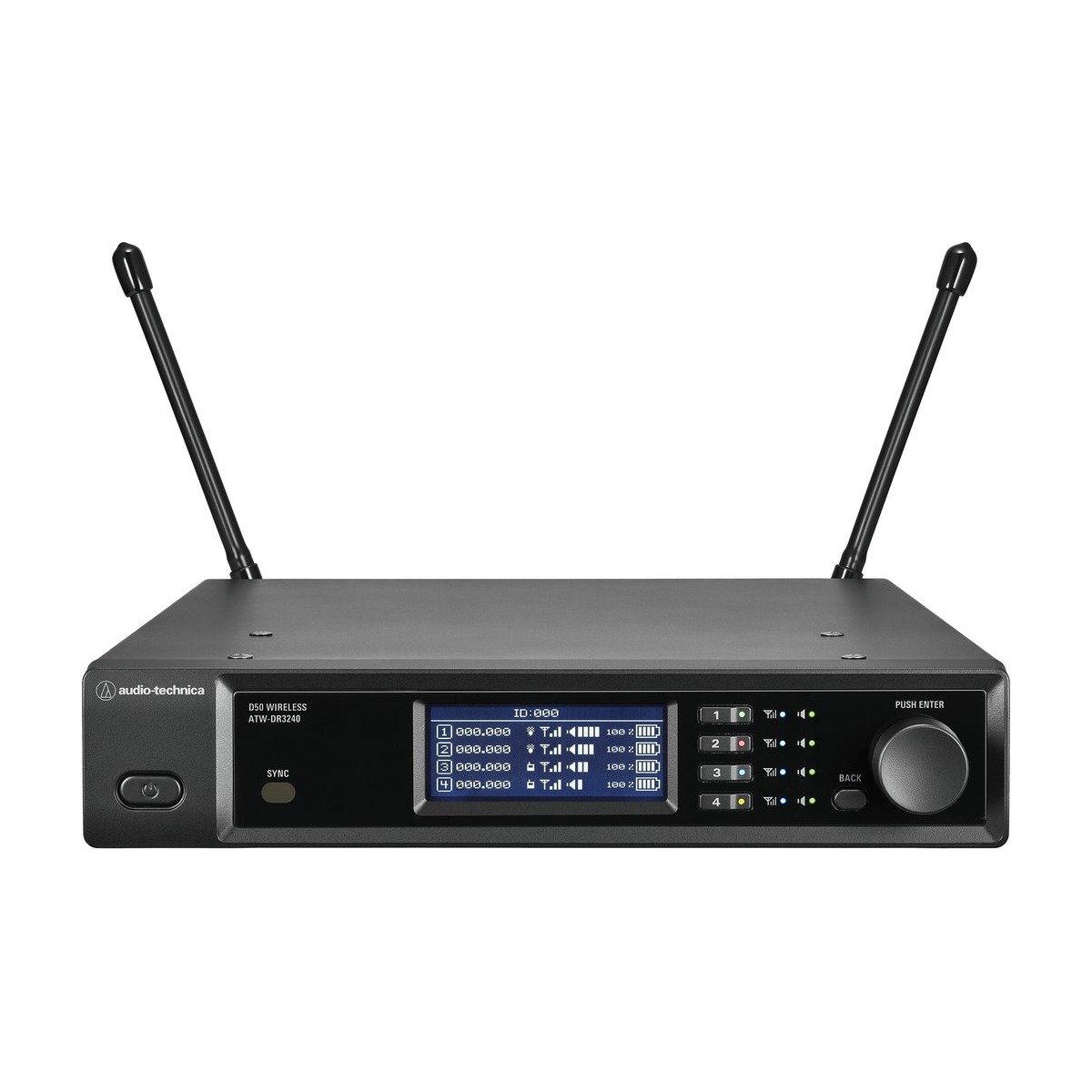

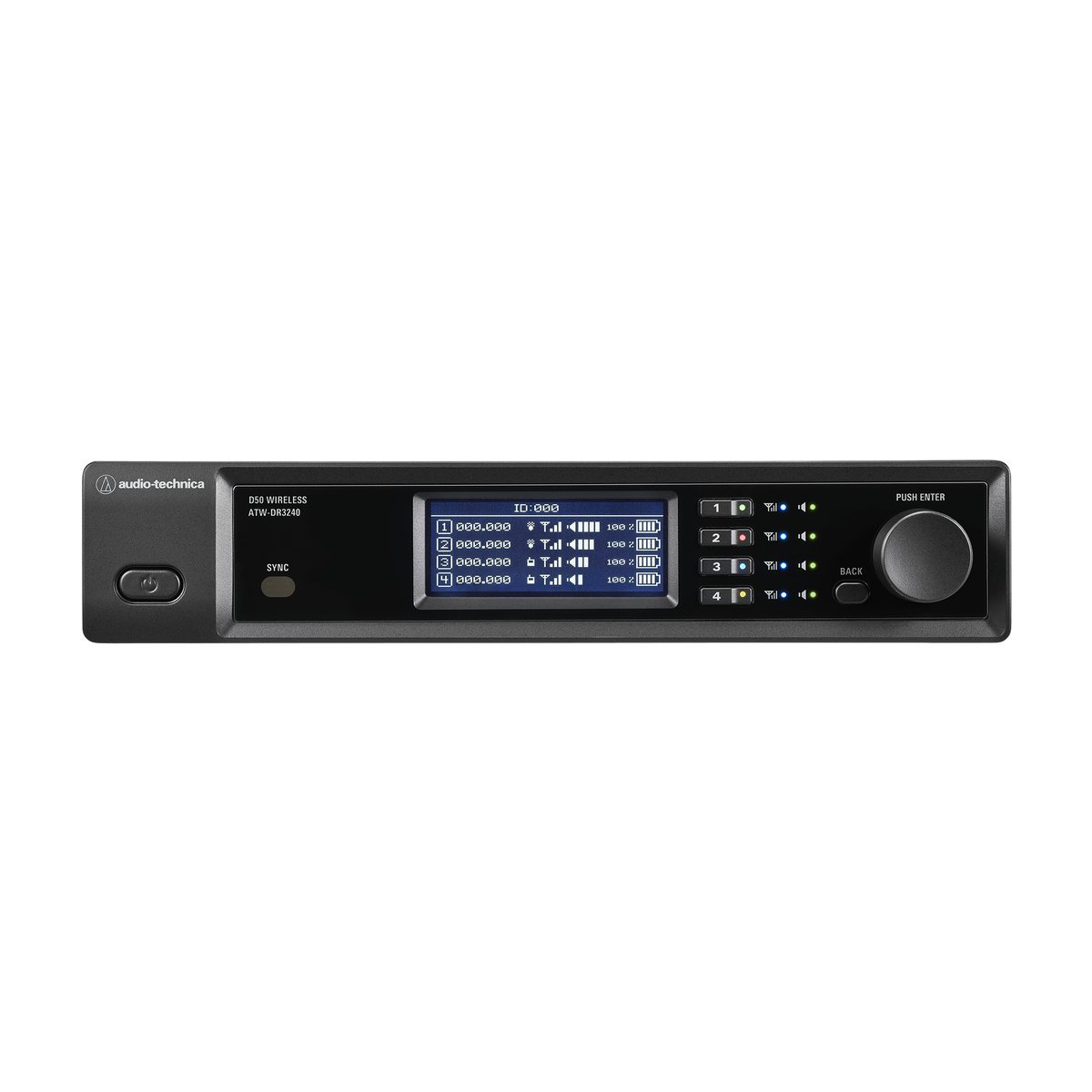

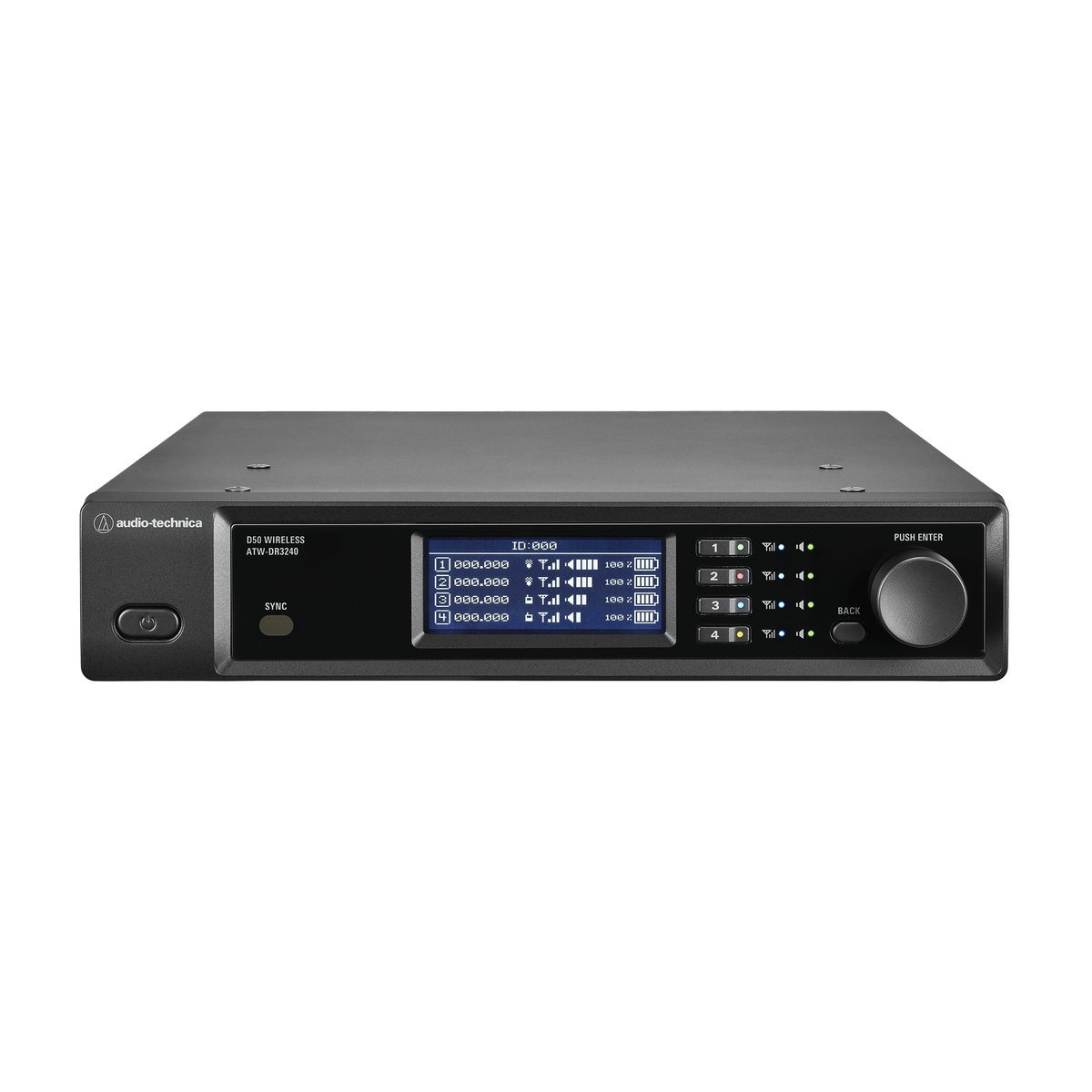

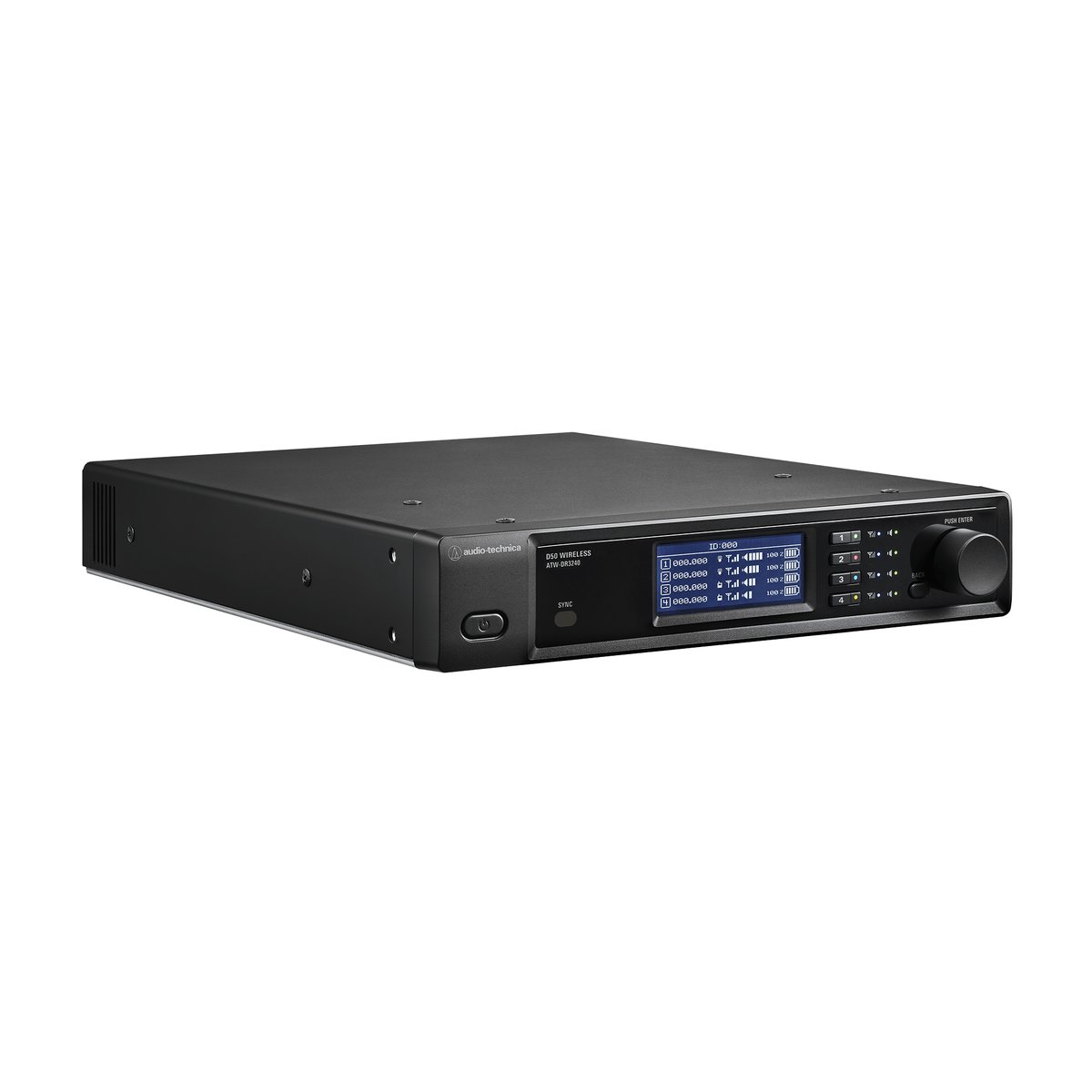

Audio-Technica ATW-DR3240DAN Four-Channel Dante Digital Wireless Receiver

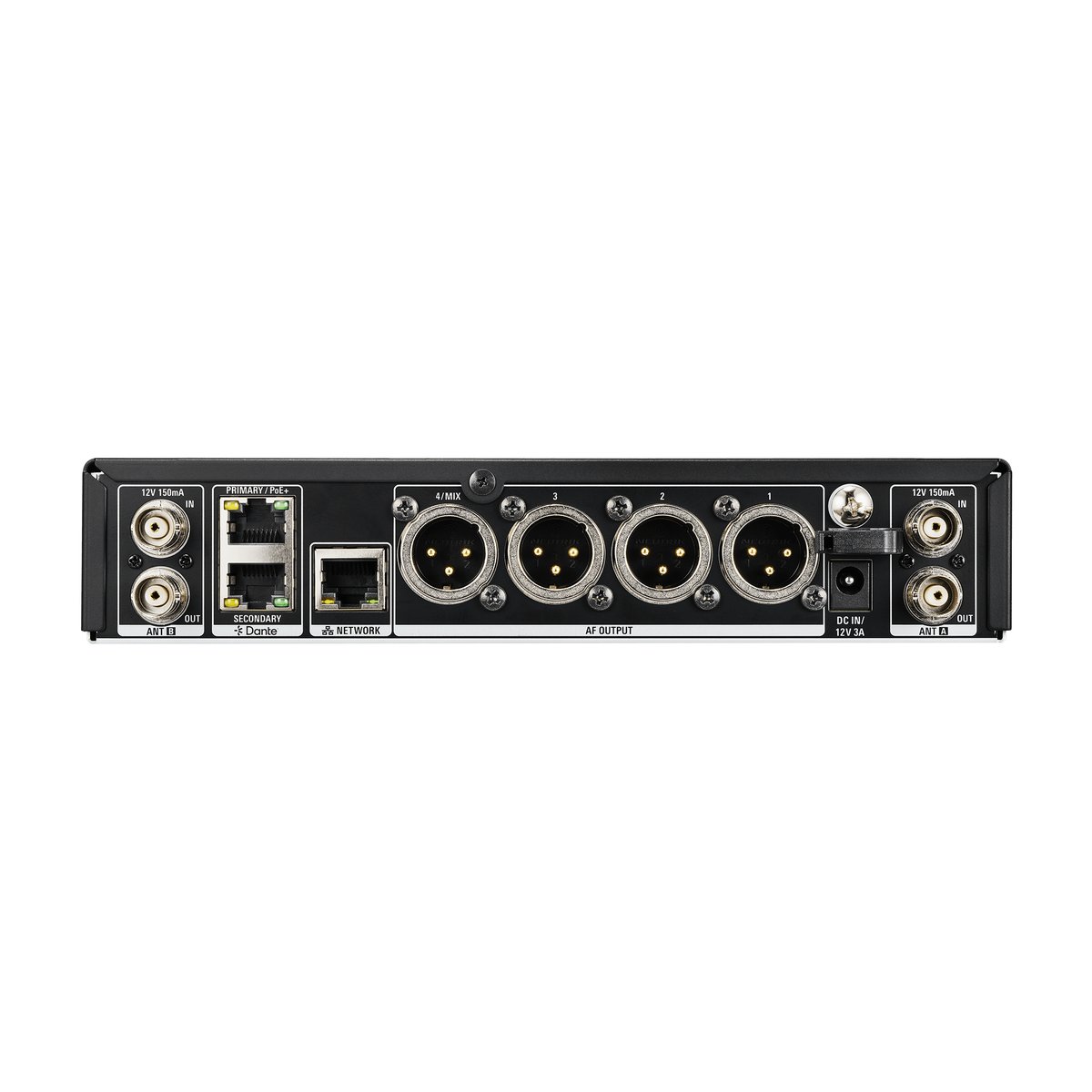

The ATW-DR3240DAN is the four-channel D50 receiver with Dante output. Four channels in one rack space off a single antenna pair is the density argument; Dante output is the install argument, because the four channels leave the rack on one network cable instead of four analogue runs to the DSP.

It tunes across DF2: 470.125 to 607.875 MHz with AES256 encryption, passing 20 to 20,000 Hz audio at 48 kHz with 2.1 ms typ of latency and 0.1% or less (at 1 kHz, -20 dBFS) of distortion. The recommended channel count is 17 channels / 6 MHz.

Operating Frequencies	DF2: 470.125 to 607.875 MHz
Modulation Mode	Standard: 8-PSK HD mode: 16QAM
Occupied Bandwidth	Standard: 192 kHz HD mode: 96 kHz
Frequency Response	Standard: 20 to 20,000 Hz HD mode: 20 to 20,000 Hz Depending on attached microphone element.
Operating Range	100 m, open range with no interfering signals
Total Harmonic Distortion	0.1% or less (at 1 kHz, -20 dBFS)
Maximum Simultaneous Use (recommended)	Standard: 17 channels / 6 MHz Results may vary depending on the radio environment and usage conditions.
Encryption System	AES256
