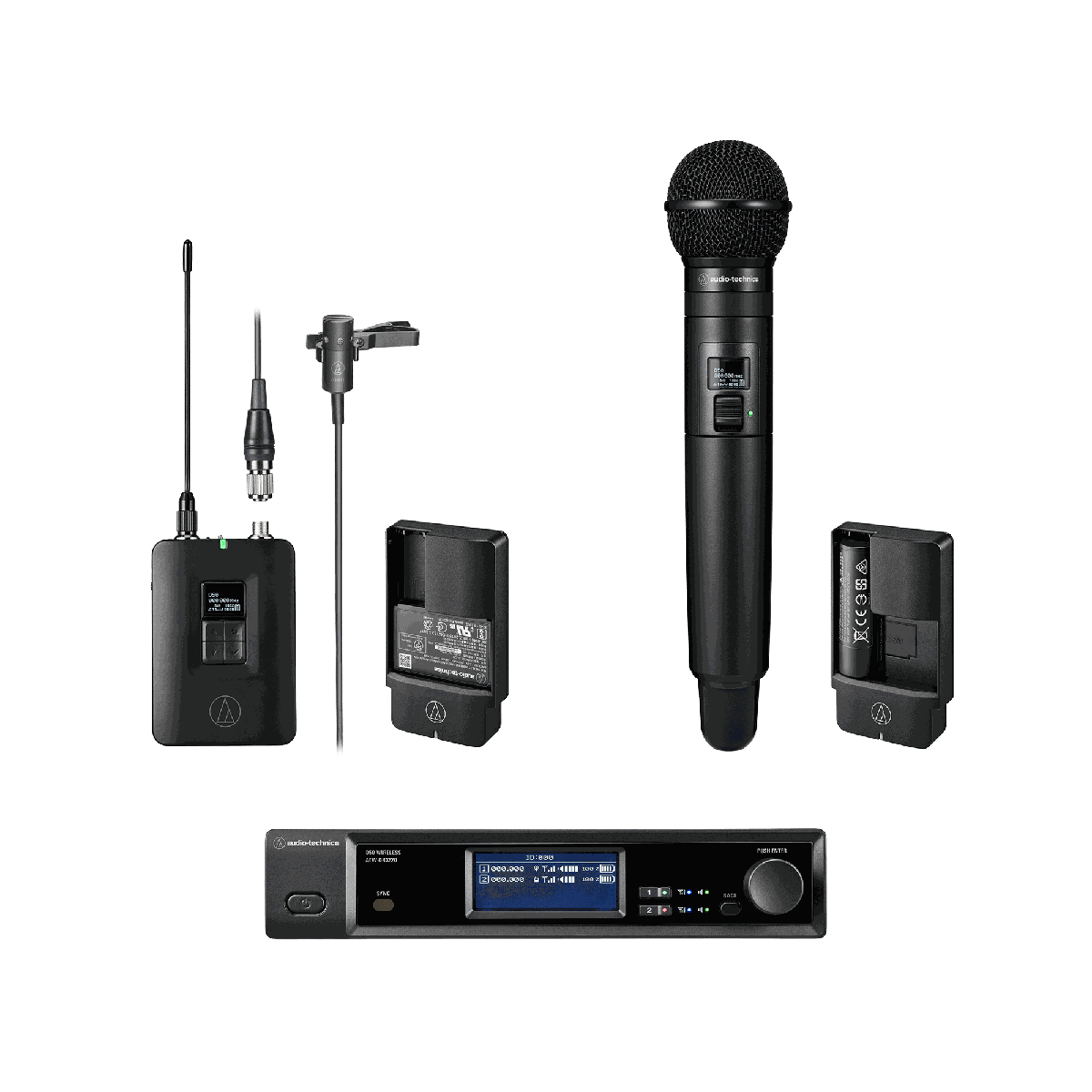

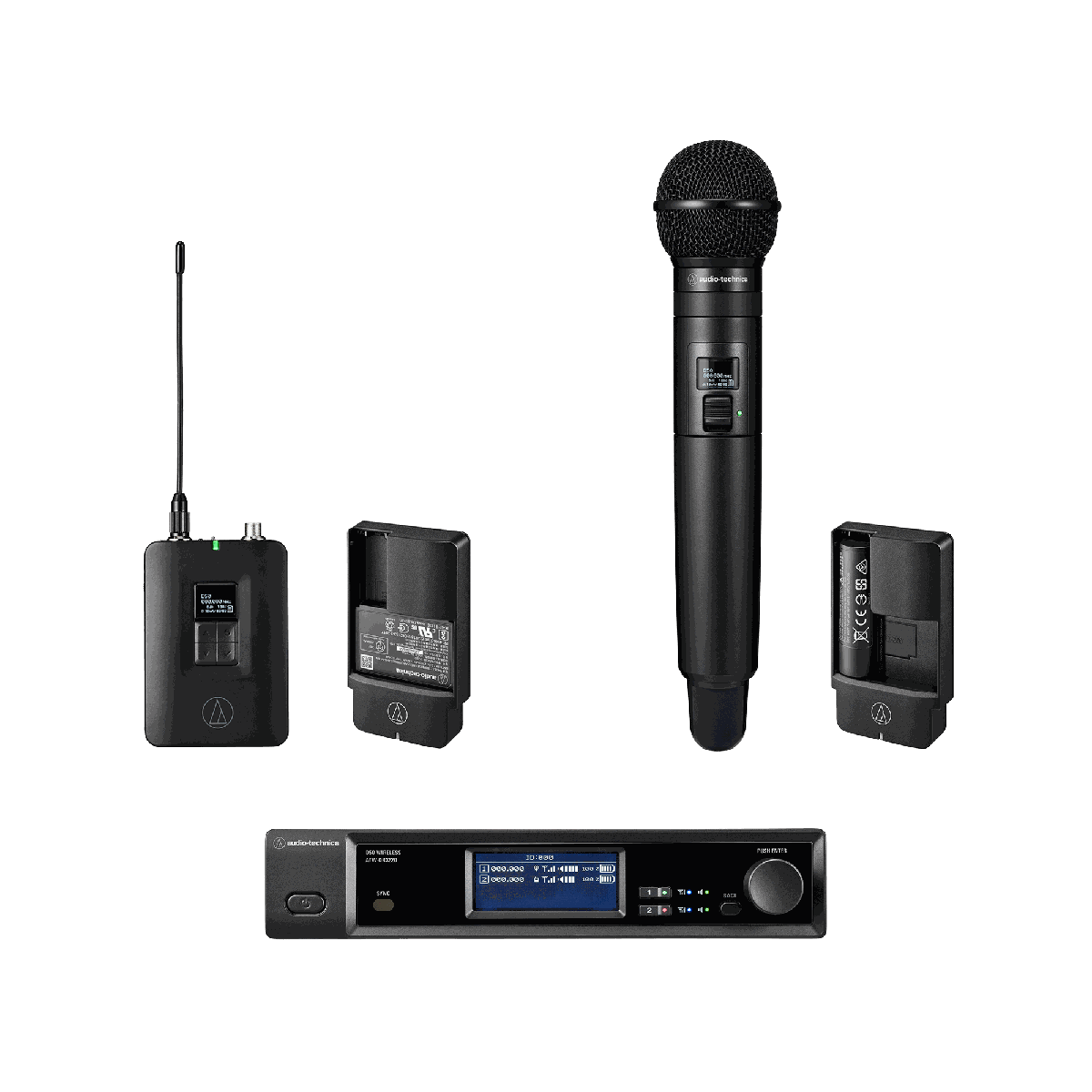

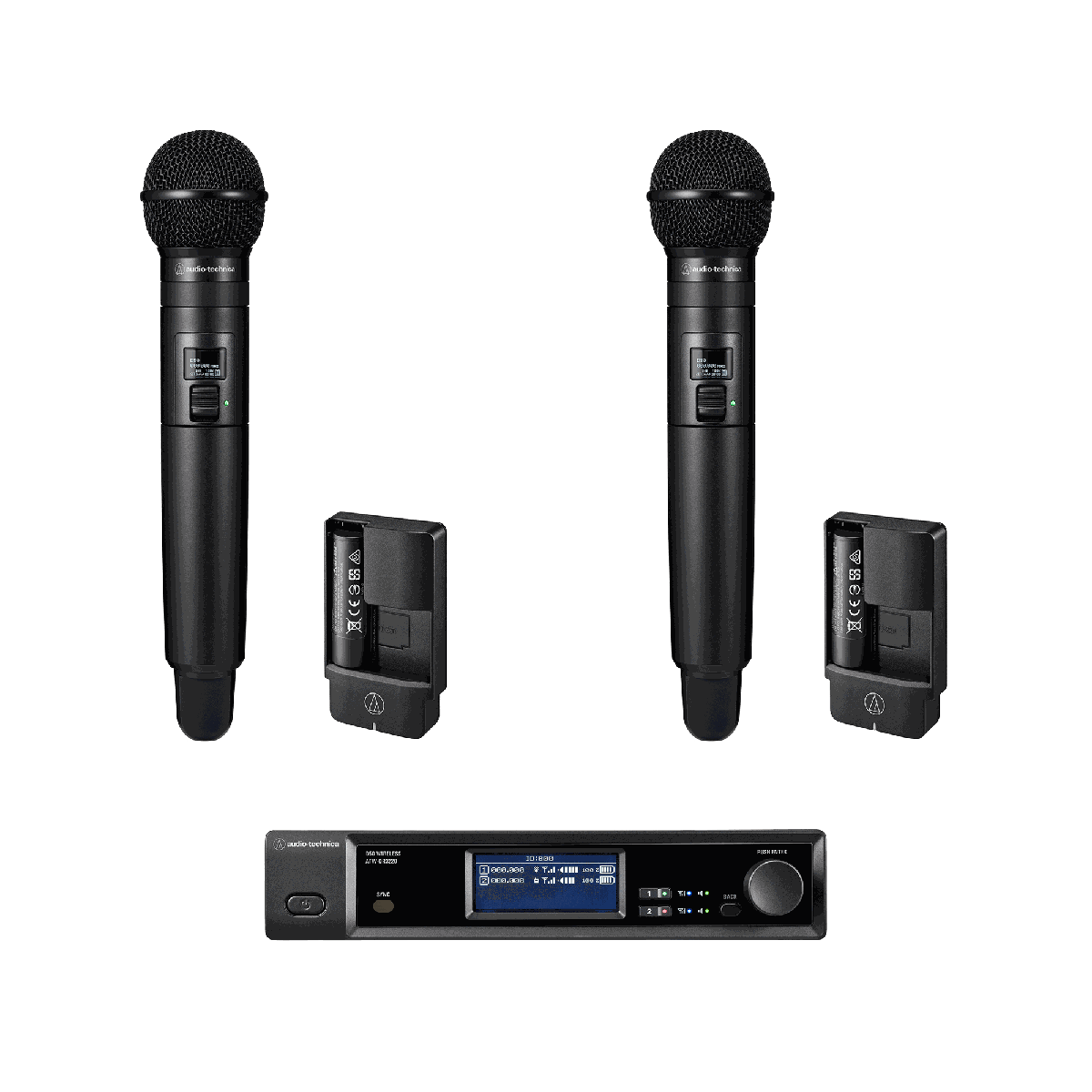

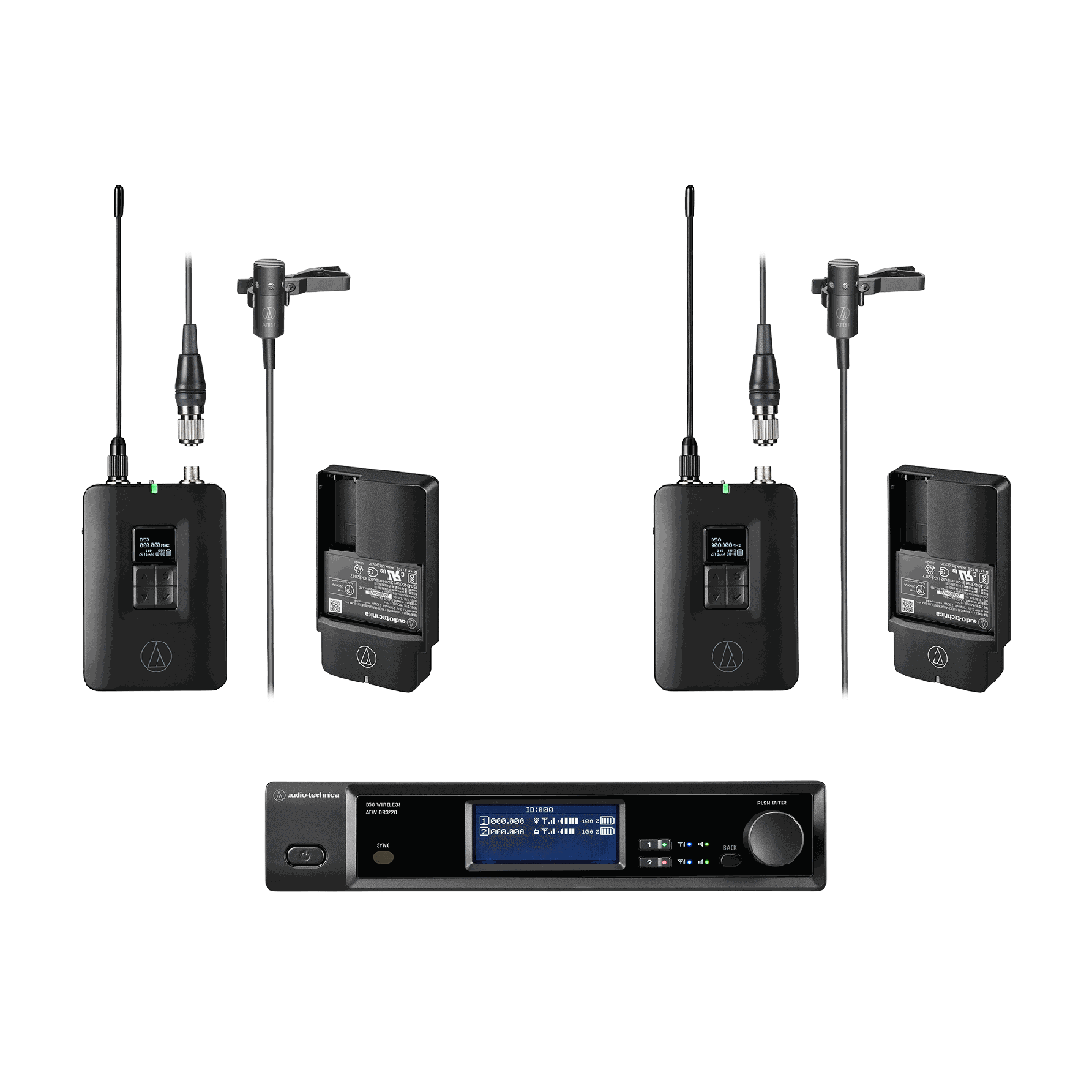

Name: Audio-Technica ATW-D50 Two-Channel Digital Wireless System
Brand: Audio-Technica
SKU: ATW-D50-DRX-2B
Availability: InStock

The ATW-D50 is Audio-Technica's D50 digital UHF wireless system supplied as a working two-channel package: one half-rack receiver and two transmitters, configured for the job rather than bought as loose parts. The link is fully digital with AES256 encryption, tuning across DF2: 470.125 to 607.875 MHz and working over 100 m, open range with no interfering signals.

Audio runs at 48 kHz with 2.1 ms typ of latency in standard mode and 0.1% or less (at 1 kHz, -20 dBFS) of distortion, and the recommended channel count is 17 channels / 6 MHz. The receiver ships with an AC adapter and will also run on PoE+, either on its own or as a backup to the adapter. Handheld configurations come fitted with the ATW-C510 cardioid dynamic capsule, and the transmitter accepts other Audio-Technica capsules.

Operating Frequencies	DF2: 470.125 to 607.875 MHz
Modulation Mode	Standard: 8-PSK HD mode: 16QAM
Occupied Bandwidth	Standard: 192 kHz HD mode: 96 kHz
Frequency Response	Standard: 20 to 20,000 Hz HD mode: 20 to 20,000 Hz Depending on attached microphone element.
Operating Range	100 m, open range with no interfering signals
Total Harmonic Distortion	0.1% or less (at 1 kHz, -20 dBFS)
Maximum Simultaneous Use (recommended)	Standard: 17 channels / 6 MHz Results may vary depending on the radio environment and usage conditions.
Encryption System	AES256
