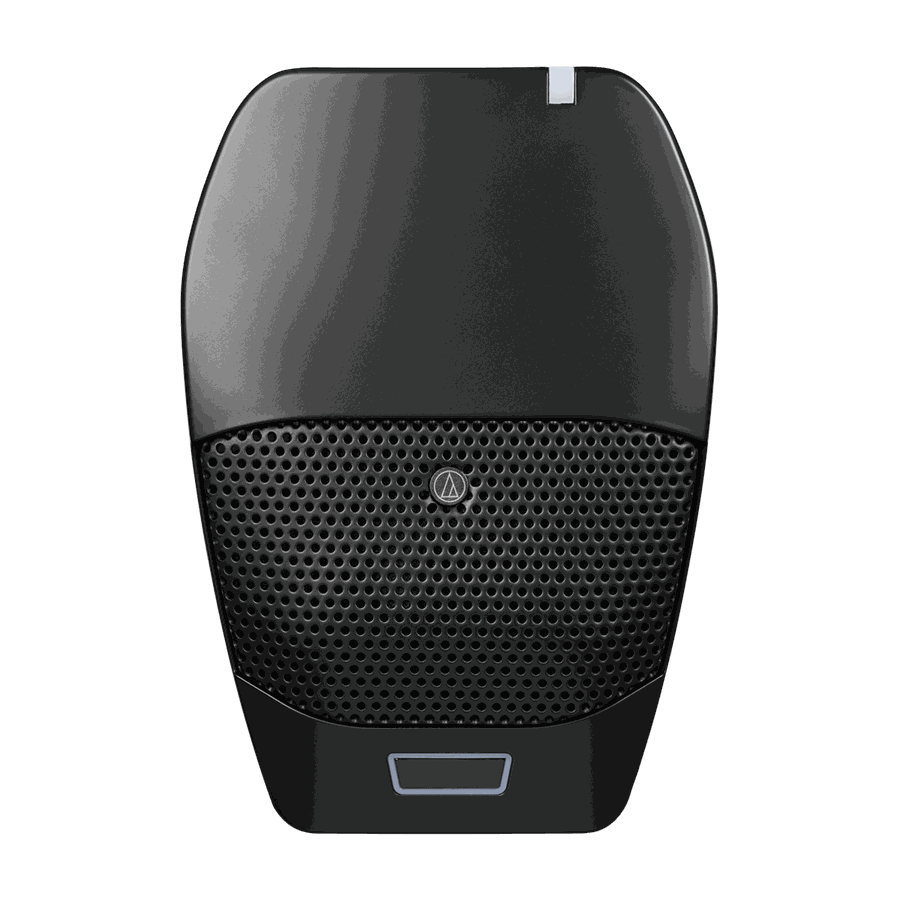

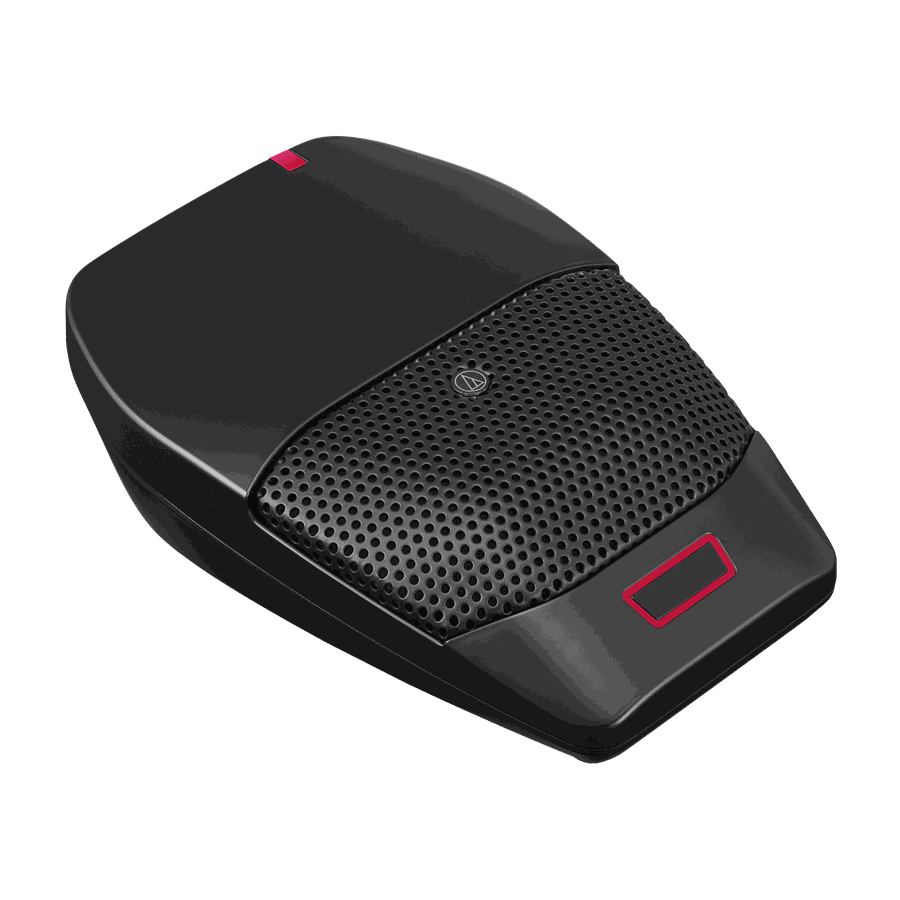

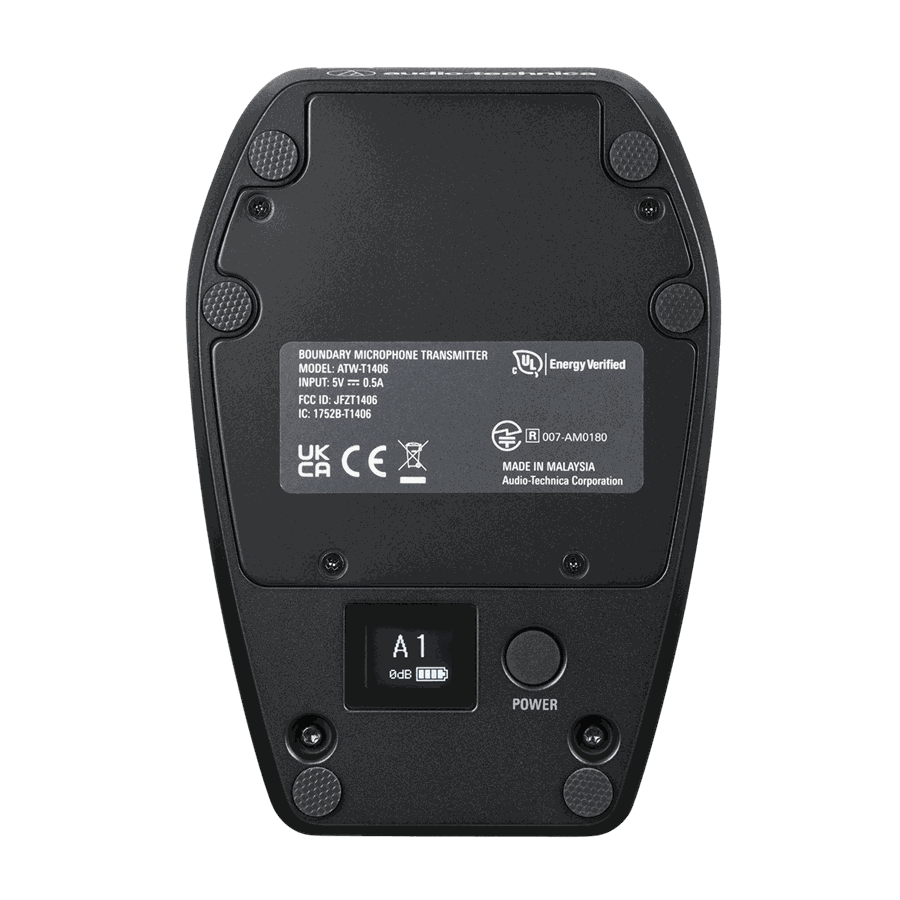

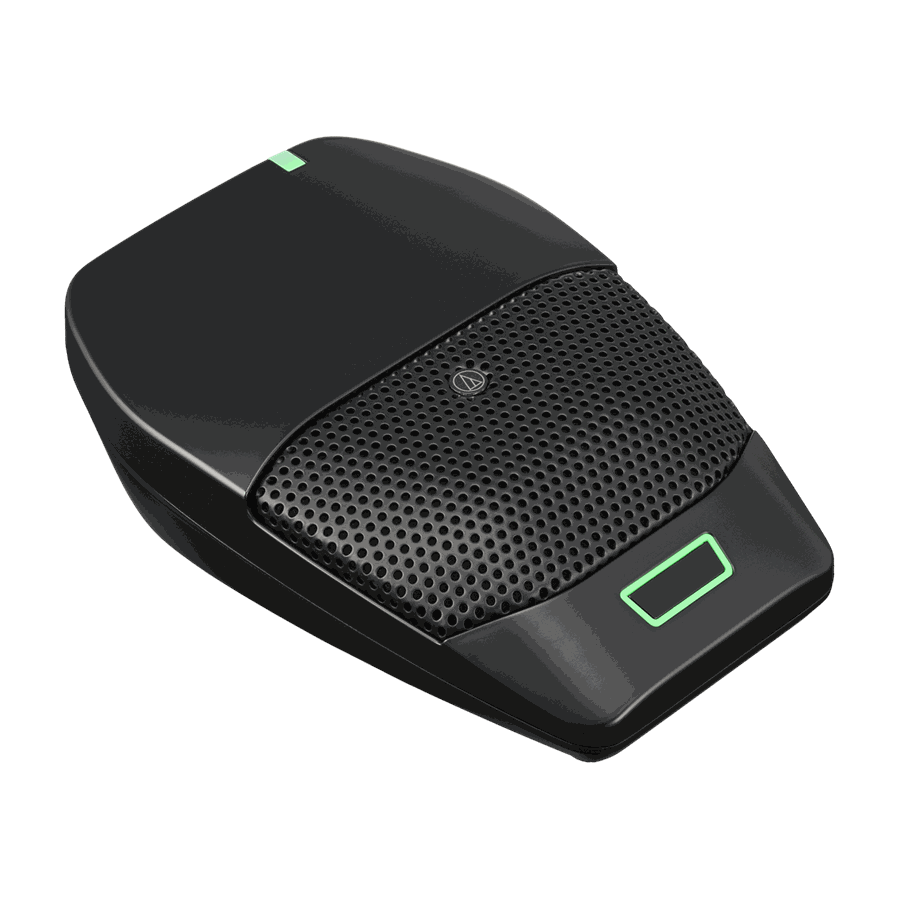

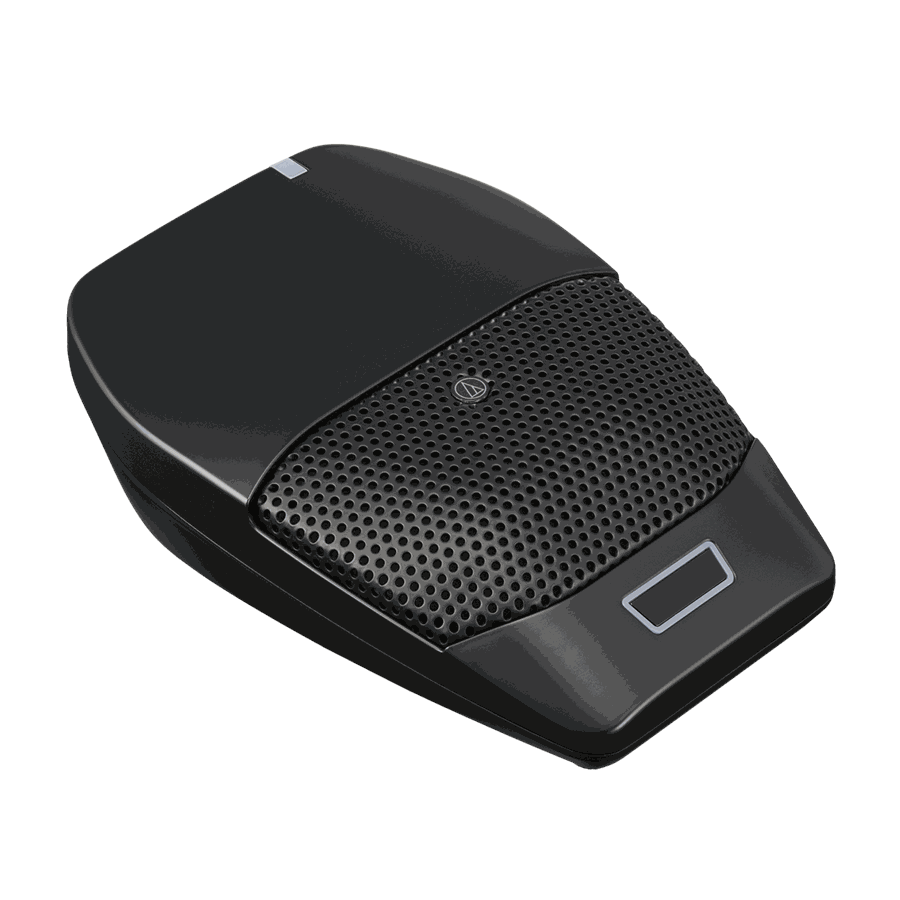

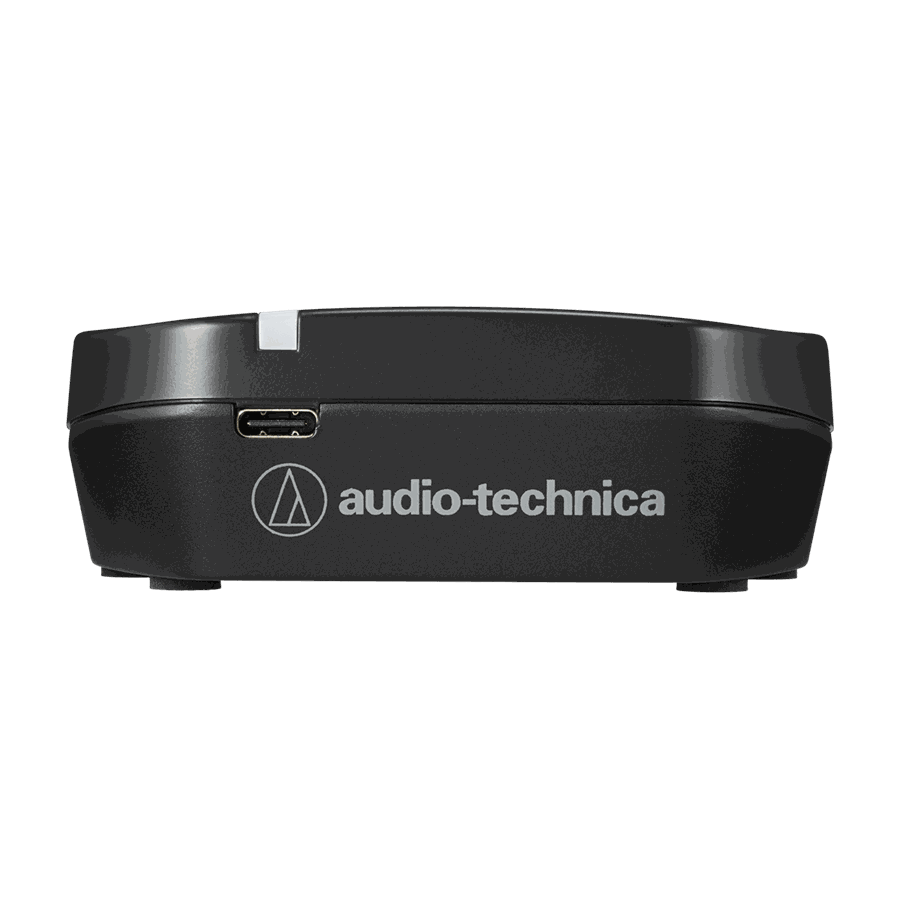

Audio-Technica ATW-T1406 System 20 PRO Boundary Microphone Transmitter

The ATW-T1406 is a boundary microphone with a System 20 PRO transmitter built into it, so a conference table, a stage floor or an altar becomes a wireless channel with nothing running to it. Removing the cable is usually the whole point: a table can be reconfigured between meetings without an AV call.

It operates on 2,402 to 2,480 MHz with AES128 encryption, passing 20 to 20,000 Hz audio at 24-bit/48 kHz with 2.8ms of latency. It pairs with the ATW-R1440 receiver, and a system supports 10 channels.

Operating Frequencies2,402 to 2,480 MHz
System Frequency Response20 to 20,000 Hz Varies depending on the microphone to be installed.
Dynamic Range120 dB (A-weighted), typical
Total Harmonic Distortion< 0.05%, typical
Maximum Simultaneous Use (recommended)Standard: 10 channels HD mode: 20 channels It depends on the region and environment.
DelayStandard: 2.8ms HD mode: 6.7ms
Audio Sampling RateStandard: 24-bit/48 kHz HD mode: 24-bit/48 kHz
Encryption MethodAES128
