Audio-Technica ATW-DT3202 D50 Handheld Transmitter

Name: Audio-Technica ATW-DT3202 D50 Handheld Transmitter
Brand: Audio-Technica
SKU: ATW-DT3202DF2
Availability: InStock

$522.00

ATW-DT3202DF2

Choose an option

One handheld body, ordered with whichever Audio-Technica capsule the show needs.

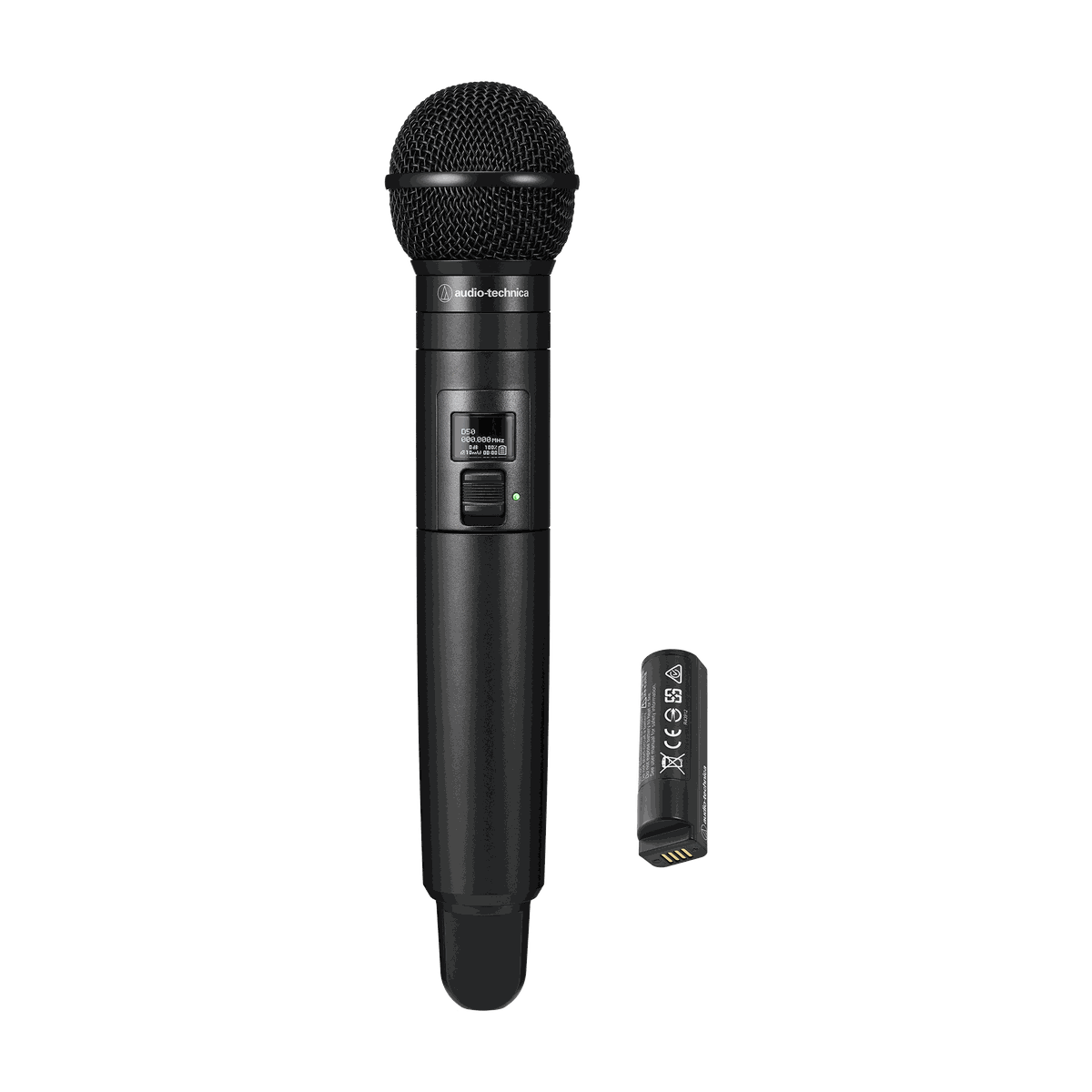

The ATW-DT3202 is the handheld transmitter for the D50 digital UHF system. The capsule threads on, so the same transmitter can carry the ATW-C510 dynamic for a rock vocal or an Artist Elite condenser head for a soloist, and a rental inventory is re-voiced by swapping heads rather than by buying second transmitters.

The link tunes across DF2: 470.125 to 607.875 MHz with AES256 encryption, 2.1 ms typ of latency in standard mode and 0.1% or less (at 1 kHz, -20 dBFS) of distortion. Power is a custom lithium-ion battery that charges in the transmitter, in the ATW-CHG6 two-bay station, or separately in the ATW-CHGA6 charger. Versions with charging contacts sit in a charging station without the battery being removed.

Operating Frequencies	DF2: 470.125 to 607.875 MHz
Modulation Mode	Standard: 8-PSK HD mode: 16QAM
Occupied Bandwidth	Standard: 192 kHz HD mode: 96 kHz
Frequency Response	Standard: 20 to 20,000 Hz HD mode: 20 to 20,000 Hz Depending on attached microphone element.
Operating Range	100 m, open range with no interfering signals
Total Harmonic Distortion	0.1% or less (at 1 kHz, -20 dBFS)
Maximum Simultaneous Use (recommended)	Standard: 17 channels / 6 MHz Results may vary depending on the radio environment and usage conditions.
Encryption System	AES256
