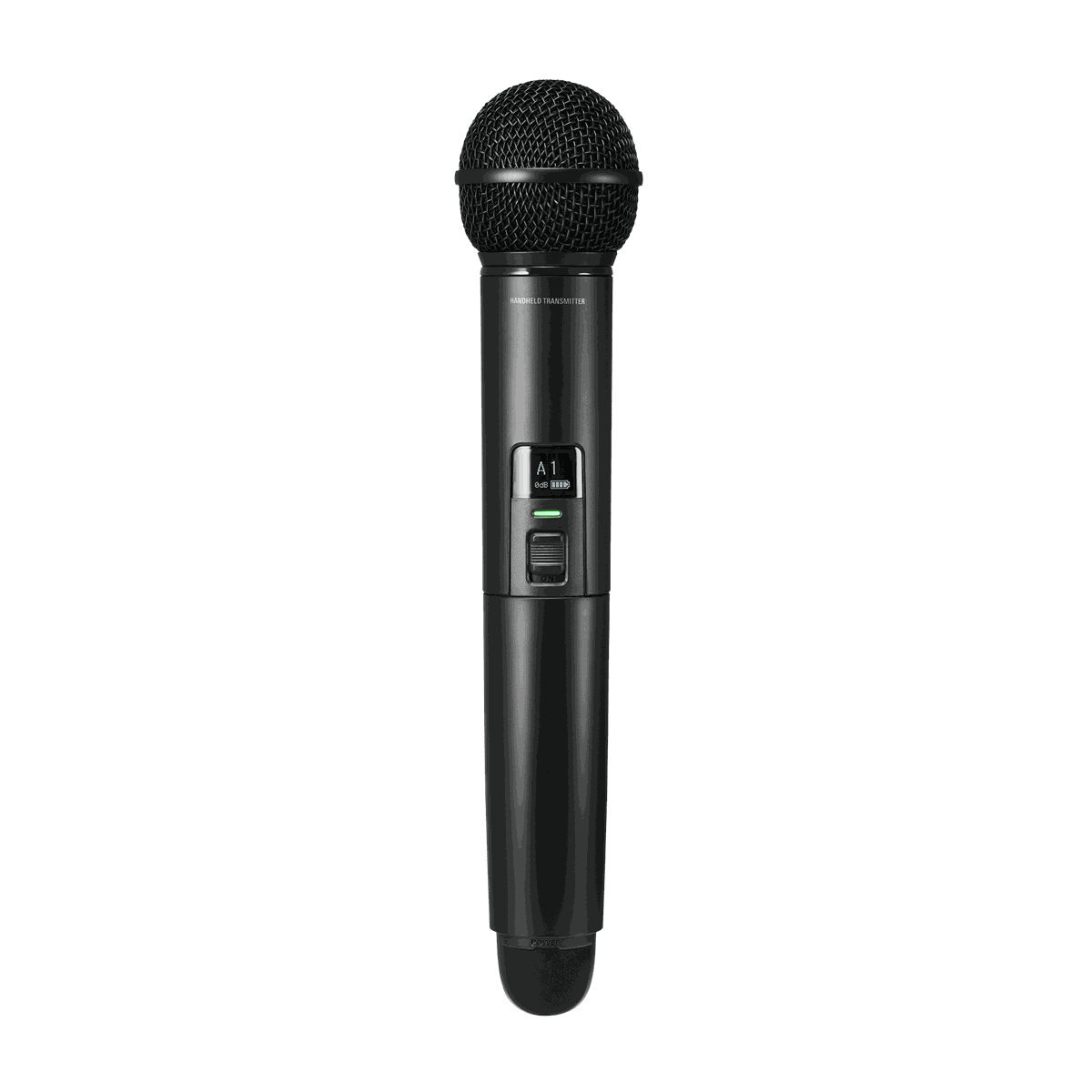

Audio-Technica ATW-T1402 System 20 PRO Handheld Transmitter

The ATW-T1402 is the handheld transmitter for System 20 PRO: a wireless vocal or roving audience microphone on a 2.4 GHz digital link with no frequency coordination to manage. It is the channel that gets handed around a room, which is why a licence-free band and a fixed pairing to the receiver matter more here than tuning range.

It operates on 2,402 to 2,480 MHz with AES128 encryption, passing 20 to 20,000 Hz audio at 24-bit/48 kHz with 2.8ms of latency and < 0.05%, typical of distortion. It pairs with the ATW-R1440 receiver, and a system supports 10 channels.

Operating Frequencies	2,402 to 2,480 MHz
System Frequency Response	20 to 20,000 Hz Varies depending on the microphone to be installed.
Dynamic Range	120 dB (A-weighted), typical
Total Harmonic Distortion	< 0.05%, typical
Maximum Simultaneous Use (recommended)	Standard: 10 channels HD mode: 20 channels It depends on the region and environment.
Delay	Standard: 2.8ms HD mode: 6.7ms
Audio Sampling Rate	Standard: 24-bit/48 kHz HD mode: 24-bit/48 kHz
Encryption Method	AES128
