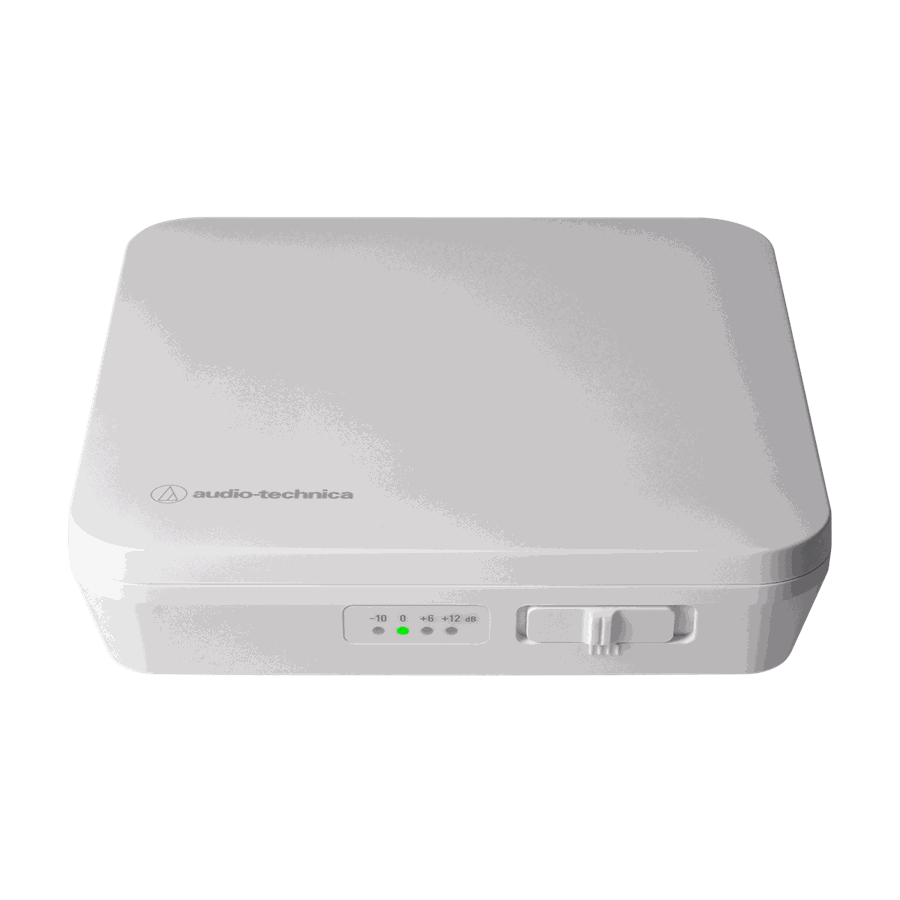

Audio-Technica ATW-A410P UHF Powered Wideband Antenna

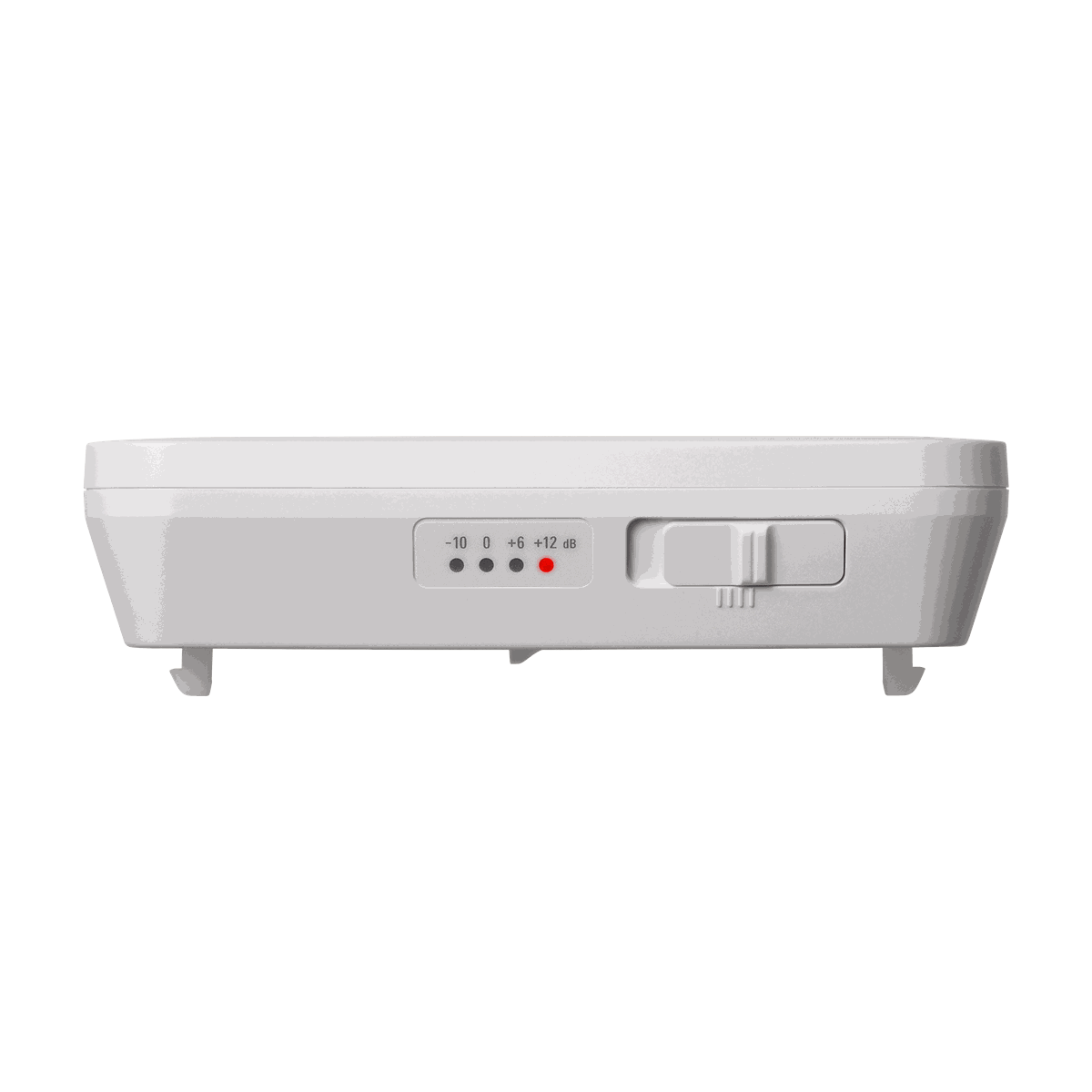

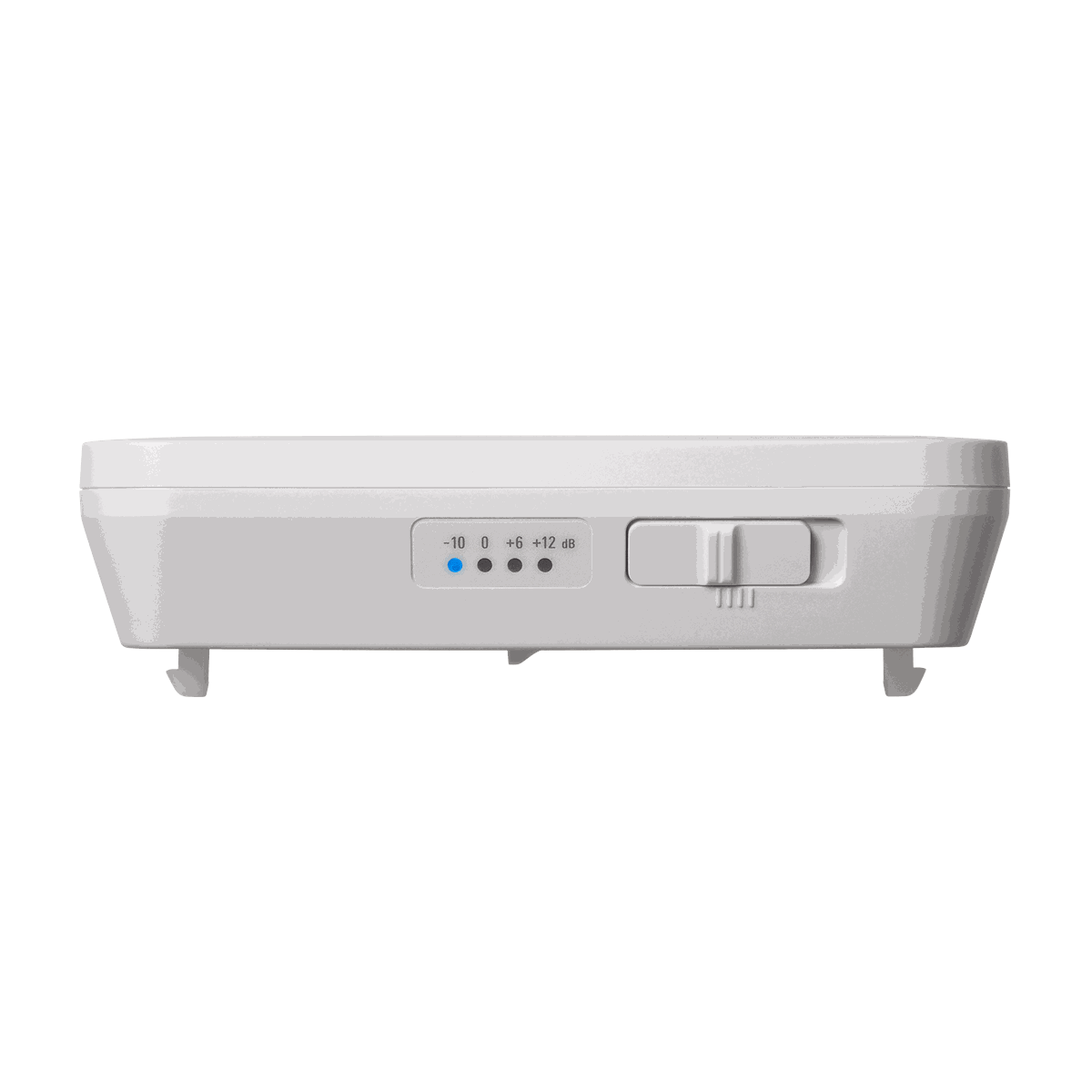

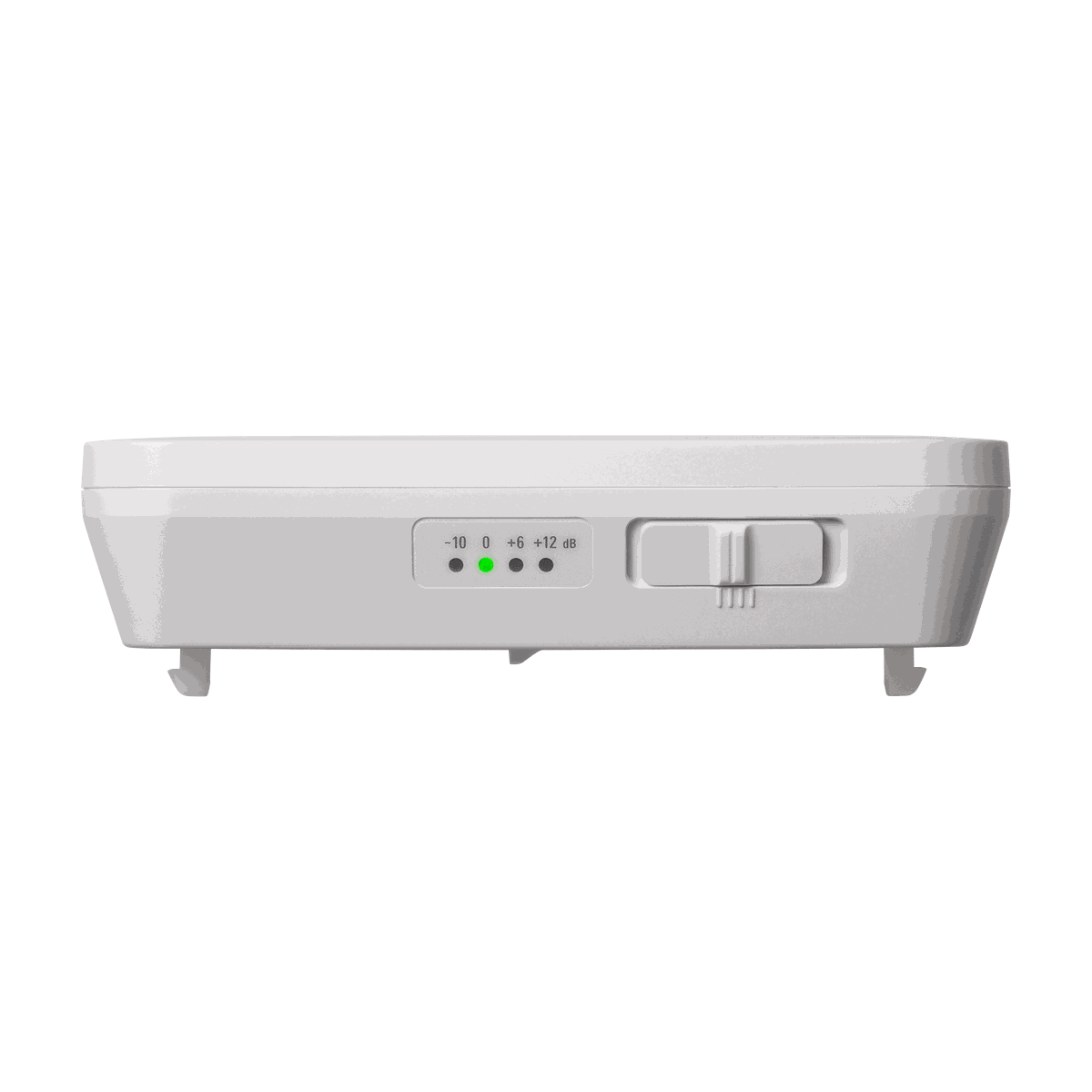

The ATW-A410P is built for the install that can't have an antenna sticking out on a boom stand: it's a low-profile UHF antenna that mounts flush to a wall or ceiling and still covers the full 470-990 MHz wideband range. A 4-position switchable amplifier, -10 dB, 0 dB, +6 dB, or +12 dB, lets an installer compensate for a long cable run to the equipment rack without swapping antennas, and an LED indicator shows which gain setting is active at a glance.
Its BNC cable can exit from the top, side, or rear of the housing, giving an installer flexibility to route cable cleanly whichever way the wall or ceiling cavity runs. It draws +12V DC at 60 mA or less, and ships with a mounting bracket and screws so it's ready to go up without sourcing separate hardware.
| Type | Low-profile powered wideband UHF antenna |
|---|---|
| Frequency Range | 470-990 MHz |
| Gain Settings | -10 dB / 0 dB / +6 dB / +12 dB, switchable |
| Connector | BNC-J |
| Impedance | 50 ohms |
| Power | +12V DC, 60 mA or less |
| Dimensions | 175 x 175 x 50 mm (6.9" x 6.9" x 2.0") |
| Included | Mounting bracket and screws |
