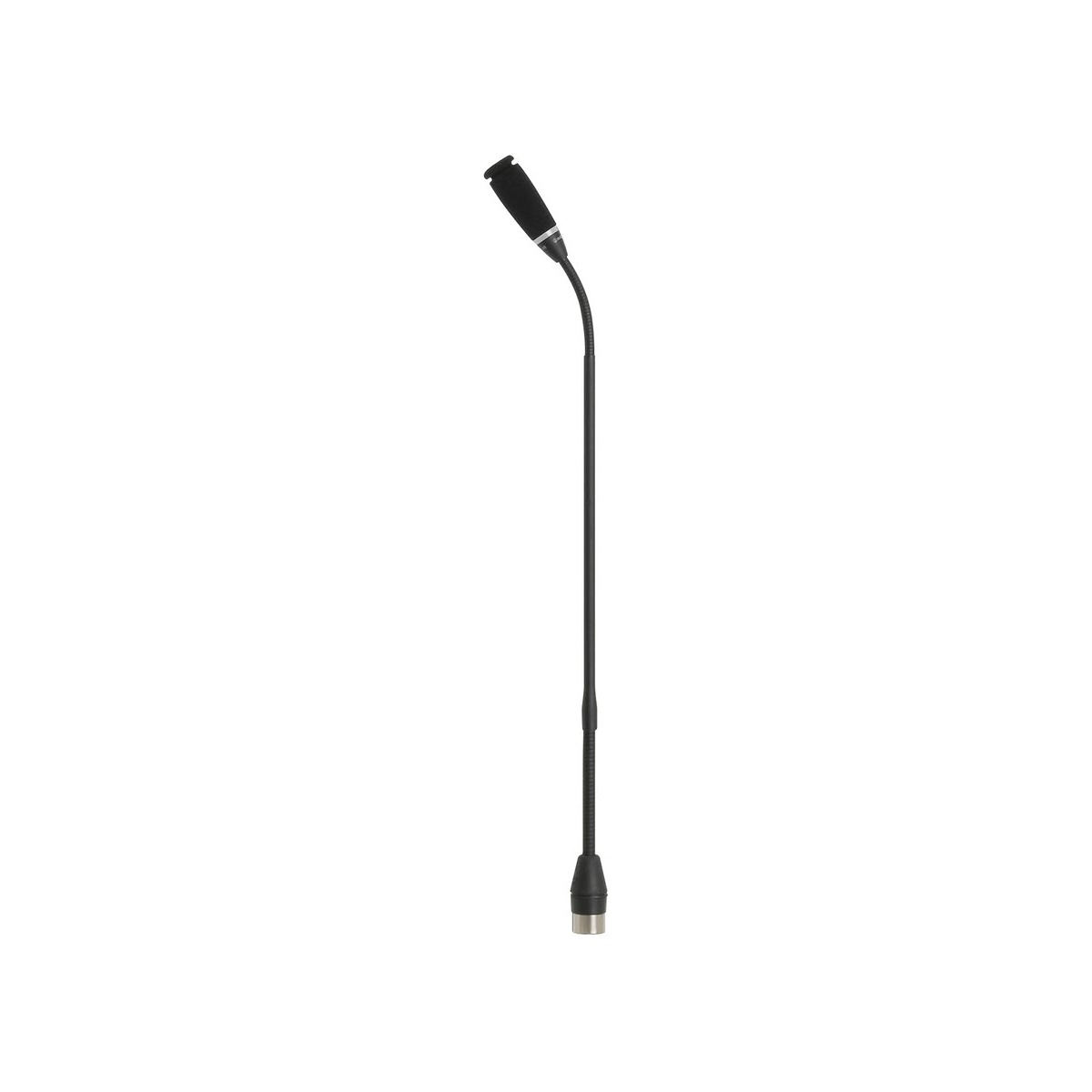

Audio-Technica ATUC-M43H Hypercardioid Condenser Gooseneck Microphone
The ATUC-M43H is the mid-length gooseneck microphone for Audio-Technica's ATUC discussion units: a Hypercardioid fixed-charge condenser on a 446 mm (17.56") neck with a 20 mm head. The hypercardioid pattern is the reason to choose it over the line cardioid - it narrows the pickup around one delegate, which is what keeps a full table of open seats from turning into feedback.
Response runs 100 - 15,000Hz, deliberately band-limited to speech so it does not pass HVAC rumble or sibilance the room does not need. A double-layer pop filter handles plosives at close range, a remote-controlled LED ring shows the room which seat is live, and the mic terminates in a 3-pin XLRM-type connector. It weighs 82 g.
| Element | Fixed-charge back plate, permanently polarized condenser |
|---|---|
| Polar Pattern | Hypercardioid |
| Frequency Response | 100 - 15,000Hz |
| Open Circuit Sensitivity | -40 dB (10.0 mV) re 1V at 1 Pa |
| Maximum Input Sound Level | 134 dB SPL, 1 kHz at 1% T.H.D. |
| Signal-to-Noise Ratio | 64 dB, 1 kHz at 1 Pa |
| Weight | 82 g |
| Dimensions | 18.9 mm diameter 430 mm |
