AKG WMS420 Presenter Set Wireless Microphone System

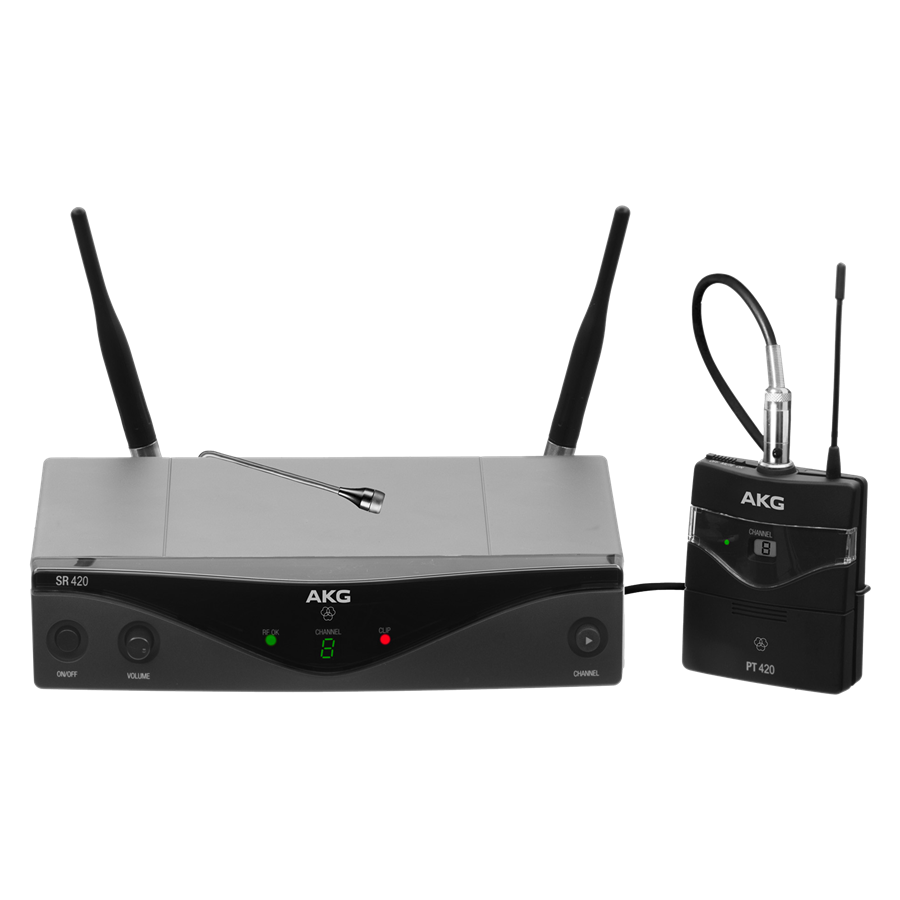

The WMS420 Presenter Set is the lavalier version of AKG's entry-level professional UHF system, aimed at lecture rooms, sanctuaries and boardrooms where the talker should not have to think about the microphone. The C417 L omnidirectional clip-on rides on a lapel or tie and hands a natural, even voice to the PT420 bodypack, which carries a gain control and a noiseless on/off/mute switch. A W407 windscreen is included for breath and clothing noise.

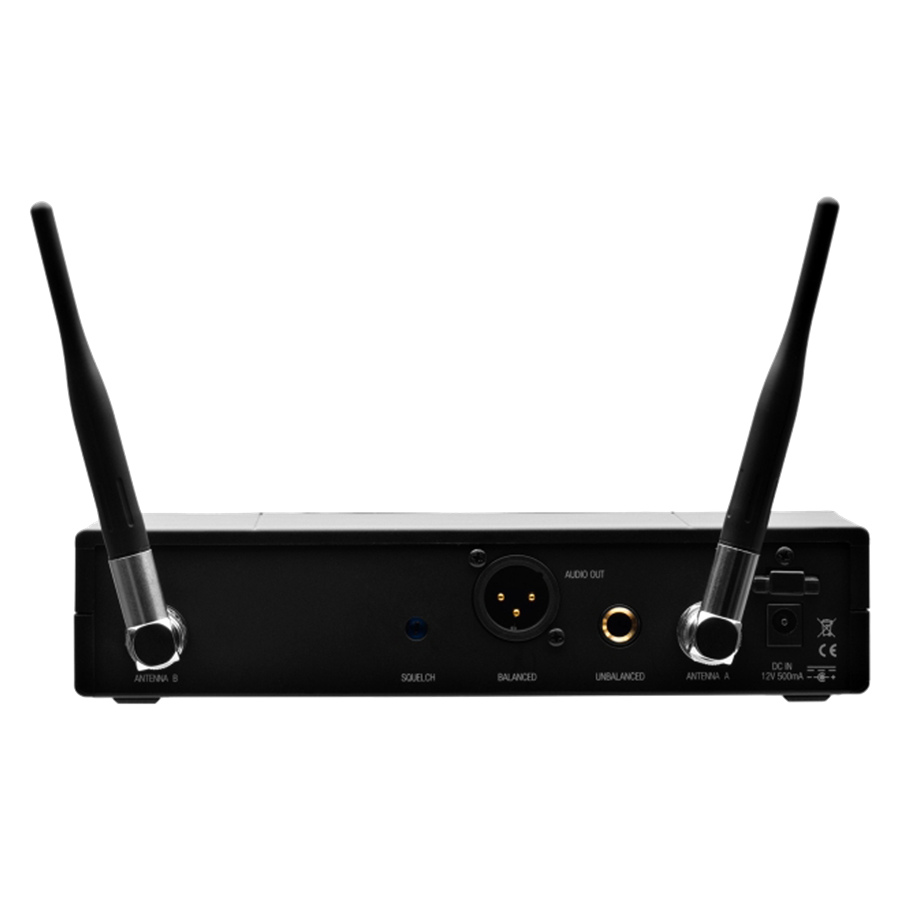

The SR420 space-diversity receiver sits in a half-rack metal chassis with two detachable BNC antennas, an adjustable squelch, and an audio-clip and RF LED for at-a-glance monitoring. Pilot tone transmission keeps startup and shutdown silent, and eight preset compatible channels within one band allow several presenters to work at once. Balanced XLR and unbalanced 1/4 inch outputs cover both a console feed and a powered speaker.
| Type | UHF wireless system, bodypack transmitter + diversity receiver |
|---|---|
| Carrier Frequency Range | 530.025 - 931.850 MHz (Band A: 530.025 - 559.000 MHz) |
| Modulation | FM |
| Audio Bandwidth | 40 - 20,000 Hz (+/- 3 dB) |
| THD at 1 kHz | typ. 0.8% |
| Signal to Noise Ratio | typ. 105 dB-A |
| Compatible Channels | Up to 8 within one frequency band |
| Included | PT420 bodypack, SR420 receiver, C417 L clip-on microphone, W407 windscreen, 2 antennas, AC adapter, AA battery |
