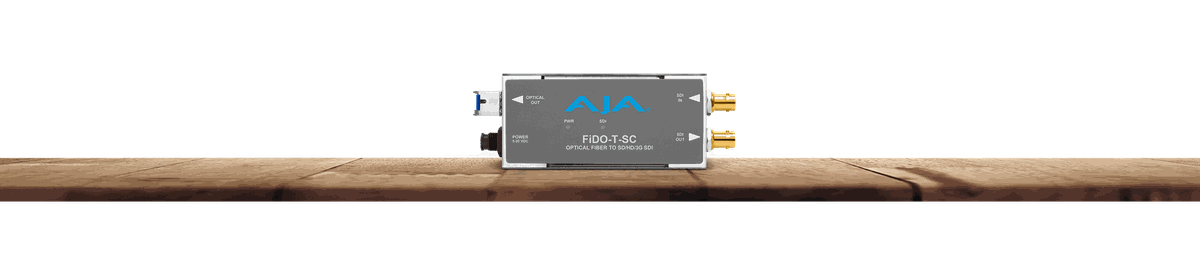

AJA FIDO T SC 3G-SDI To Single-Mode SC Fiber Transmitter
The AJA FiDO-T-SC is a single-channel fiber transmitter that takes a 3G/HD/SD-SDI signal and sends it over single-mode SC fiber, with a looping SDI output for local monitoring at the source. Its compact, low-profile enclosure fits the tight spaces behind racks, in trucks, and on camera, and it meets the relevant SMPTE specifications.
Over standard single-mode fiber with a simplex SC connector, the FiDO-T-SC carries SDI up to 10 km, and its electrical isolation helps eliminate ground loop problems between locations. It powers from 5 to 20 volts DC using the included DWP-U-R1 universal power supply and carries AJA's five year warranty.
- SDI Input3G/HD/SD-SDI with looping SDI output
- Power5-20V DC, DWP-U-R1 universal power supply included
- Weight0.5 lb
- FunctionSDI to single-mode SC fiber transmitter
- DistanceUp to 10 km over single-mode fiber
| Function | to single-mode SC fiber transmitter |
|---|---|
| SDI Input | 3G/HD/SD-SDI with looping SDI output |
| Fiber Output | Simplex SC connector, single mode |
| Distance | Up to 10 km over single-mode fiber |
| Isolation | Electrical isolation to eliminate ground loops |
| Power | 5-20V DC, DWP-U-R1 universal power supply included |
| Warranty | 5 year |
| Weight | 0.5 lb (0.3 kg) |
