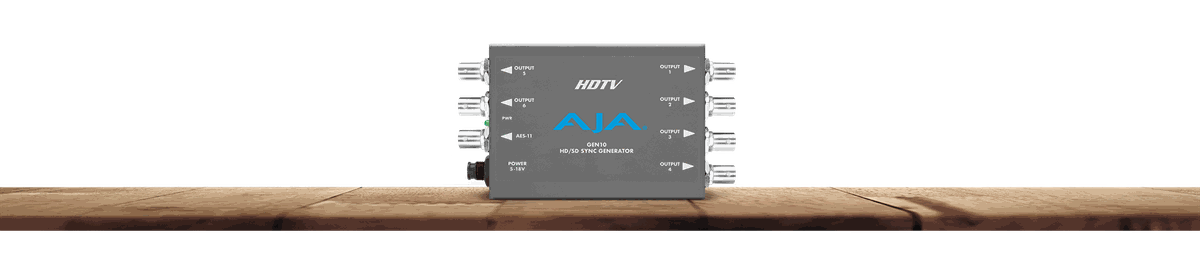

AJA GEN10 With Seven Outputs From One Master Time Base

The GEN10 is a compact and flexible SD/HD/AES sync generator that gives a facility a clean, accurate reference for locking cameras, switchers, and other gear to a common timebase. It provides seven outputs: two independently controlled groups of SD/HD sync plus one AES-11 audio reference output. The SD outputs can each be switched between Color Black and Color Bars, while the HD tri-level sync can be set to any of 19 selectable HD formats covering the standards in everyday use.

The AES-11 output switches between Silence and Tone for aligning digital audio equipment. Every output is derived from and locked to the same accurate master timebase, so the whole plant stays in sync. Output assignments and formats are set with external DIP switches for quick field adjustment, and a universal power supply is included.
