Aida Imaging HD-100A-IP67 Weatherproof Full HD Box Camera
The HD-100A-IP67 takes Aida's compact HD-100A box camera and seals it for outdoor duty. The same 1/3-inch progressive CMOS sensor outputs 1080p or 720p over HDMI 1.3a, but the housing carries an IP67 rating that survives submersion to 3 feet for 30 minutes, so it holds up on a stadium catwalk, a marine deck, or anywhere it'll see rain and spray. A 6-foot weatherproof breakout cable brings HDMI and 3.5mm TRS stereo audio out to a dry connection point.

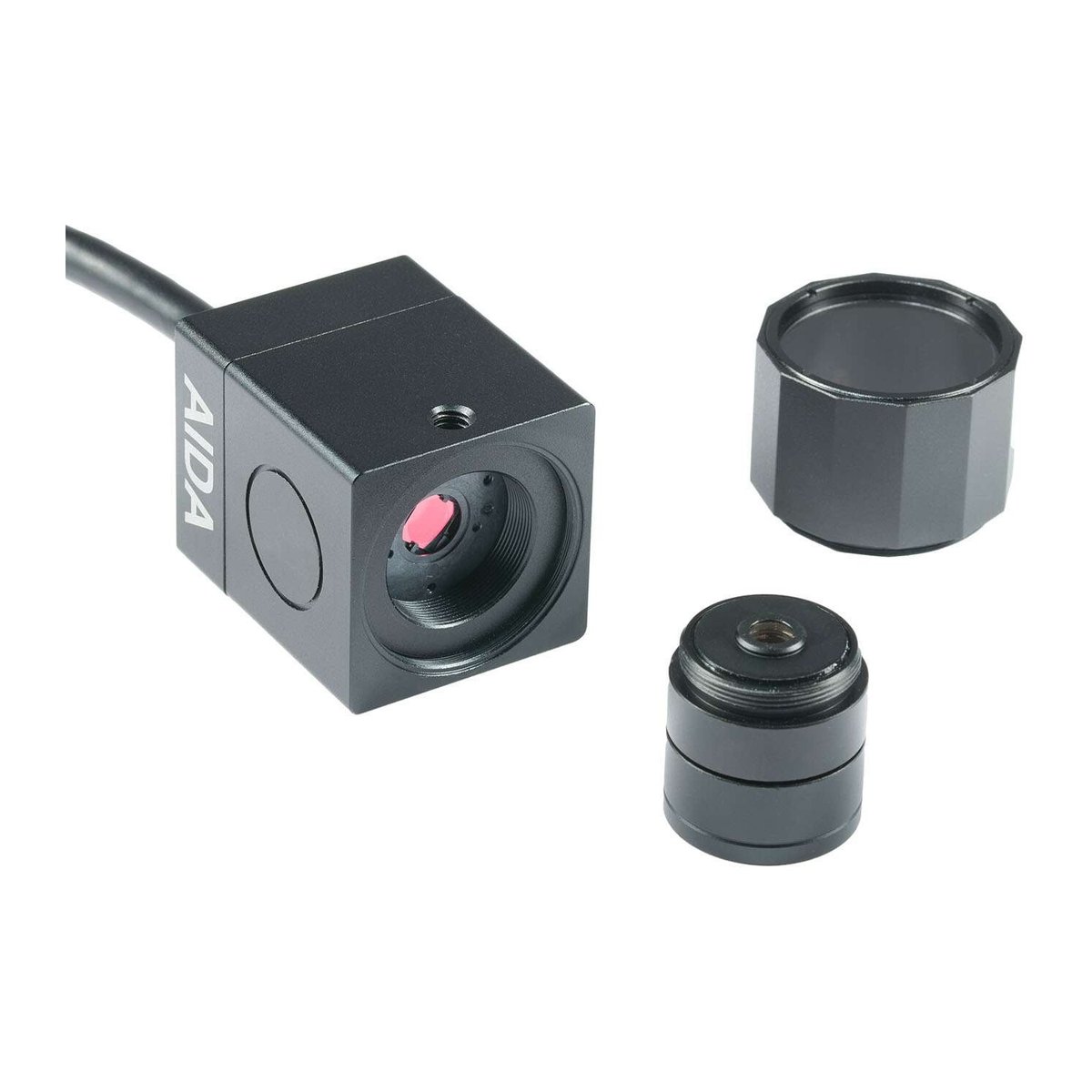

Control runs over RS-485 with VISCA and on-screen menu access, and the camera ships with a 4mm lens on a C/CS mount for swapping in a different field of view. At 1.53 x 1.53 x 1.99 inches and 180 grams, it mounts in tight, exposed spots where a standard camera body wouldn't survive the conditions -- sports venues, outdoor stages, and remote monitoring points.
| Sensor | 1/3-inch progressive CMOS |
|---|---|
| Resolution | 1920x1080 / 1280x720 |
| Lens Mount | C/CS mount, 4mm HD lens included |
| Video Output | HDMI 1.3a |
| Audio Input | 3.5mm TRS stereo |
| Weatherproofing | IP67, submersible to 3ft / 1m for 30 min |
| Cable | 6ft integrated weatherproof breakout cable |
| Dimensions | 1.53 x 1.53 x 1.99in (180g) |
