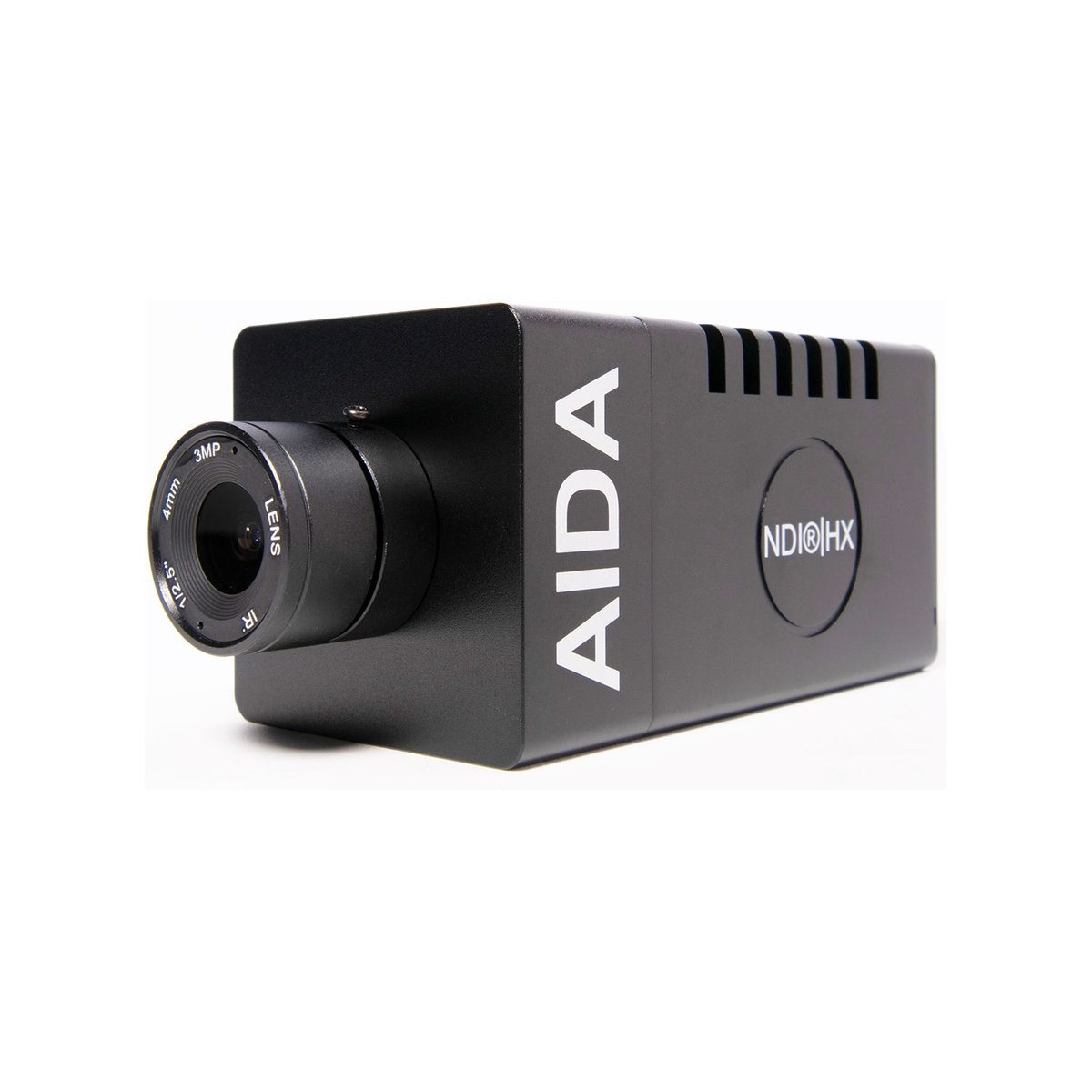

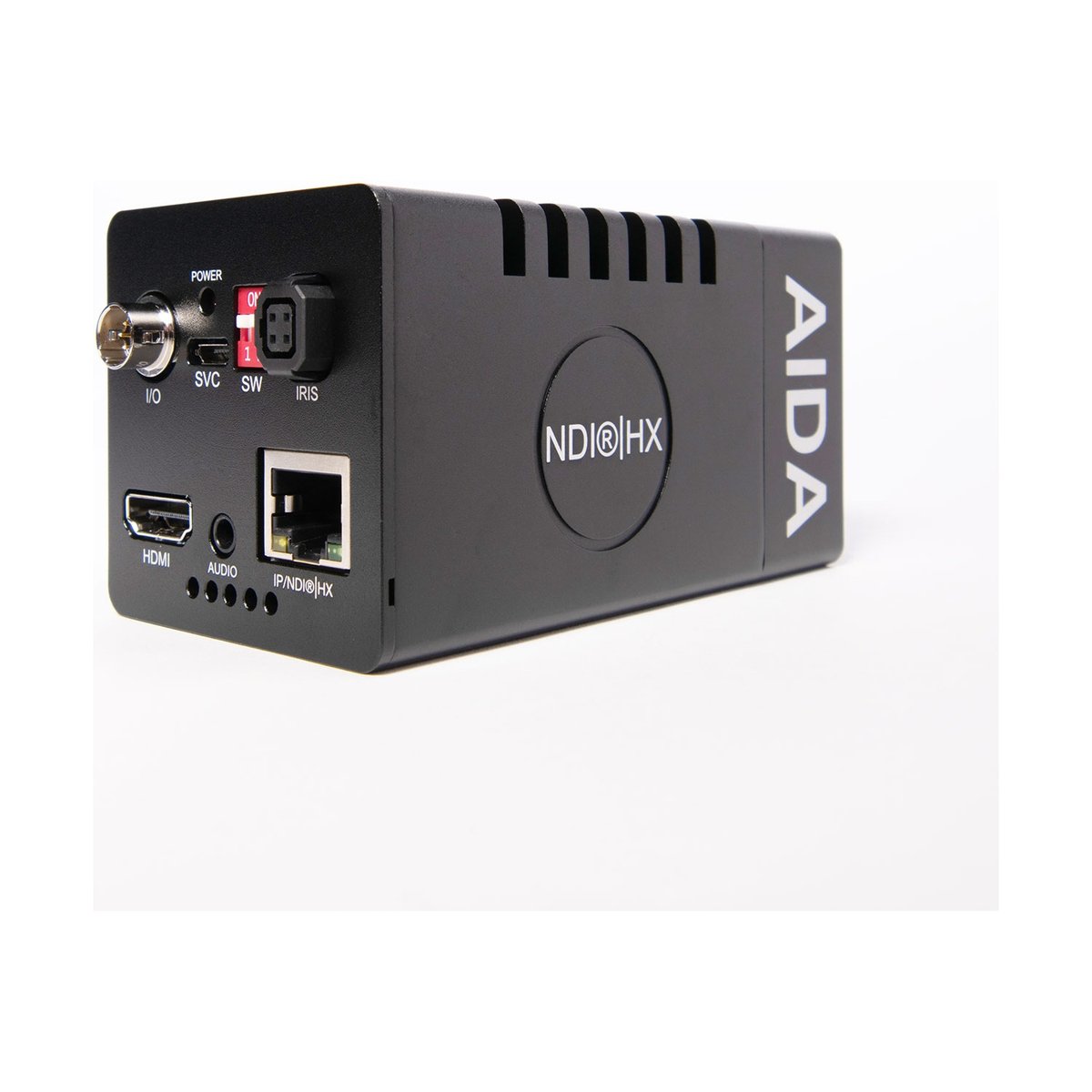

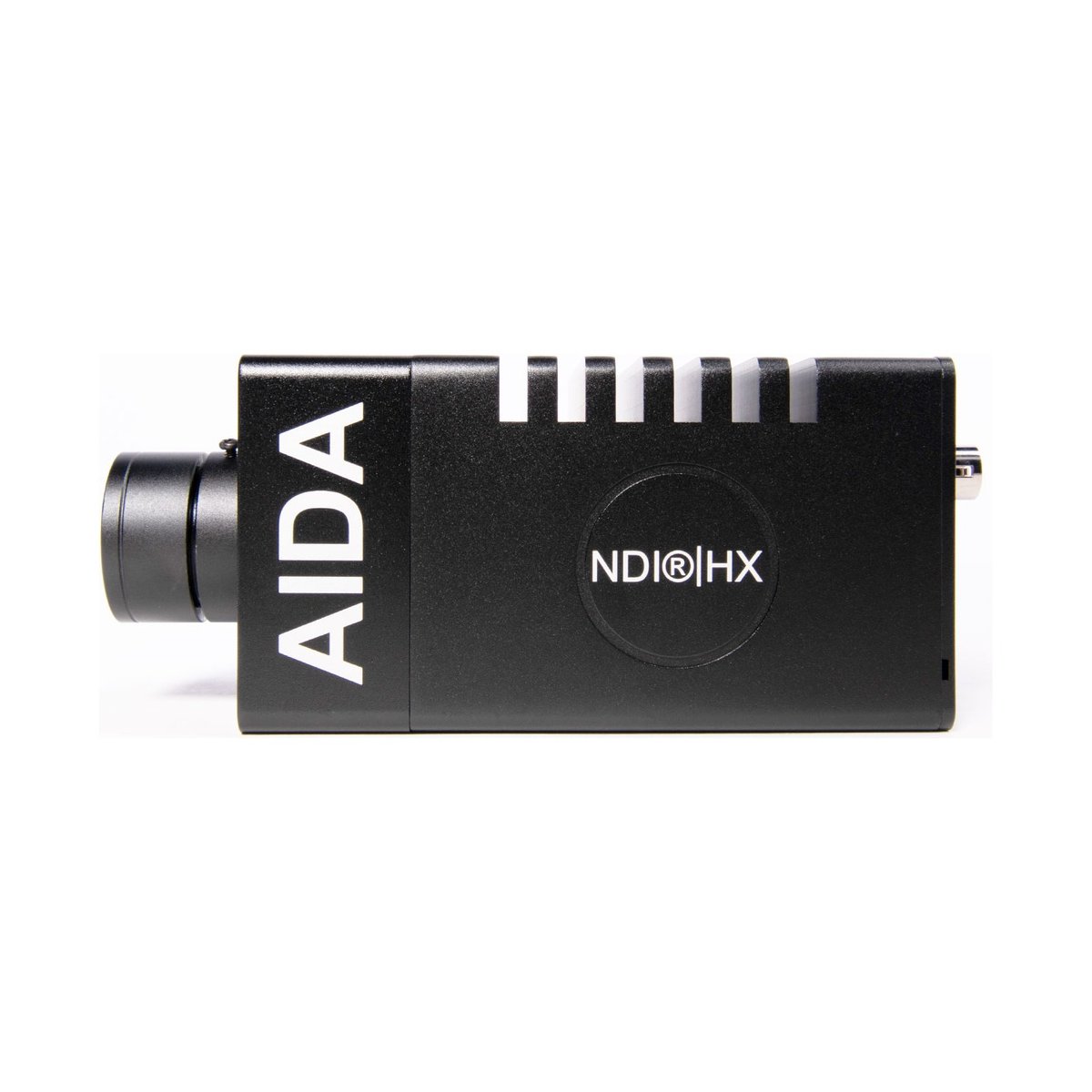

Aida Imaging HD-NDI-200 NDI|HX2 POV Camera

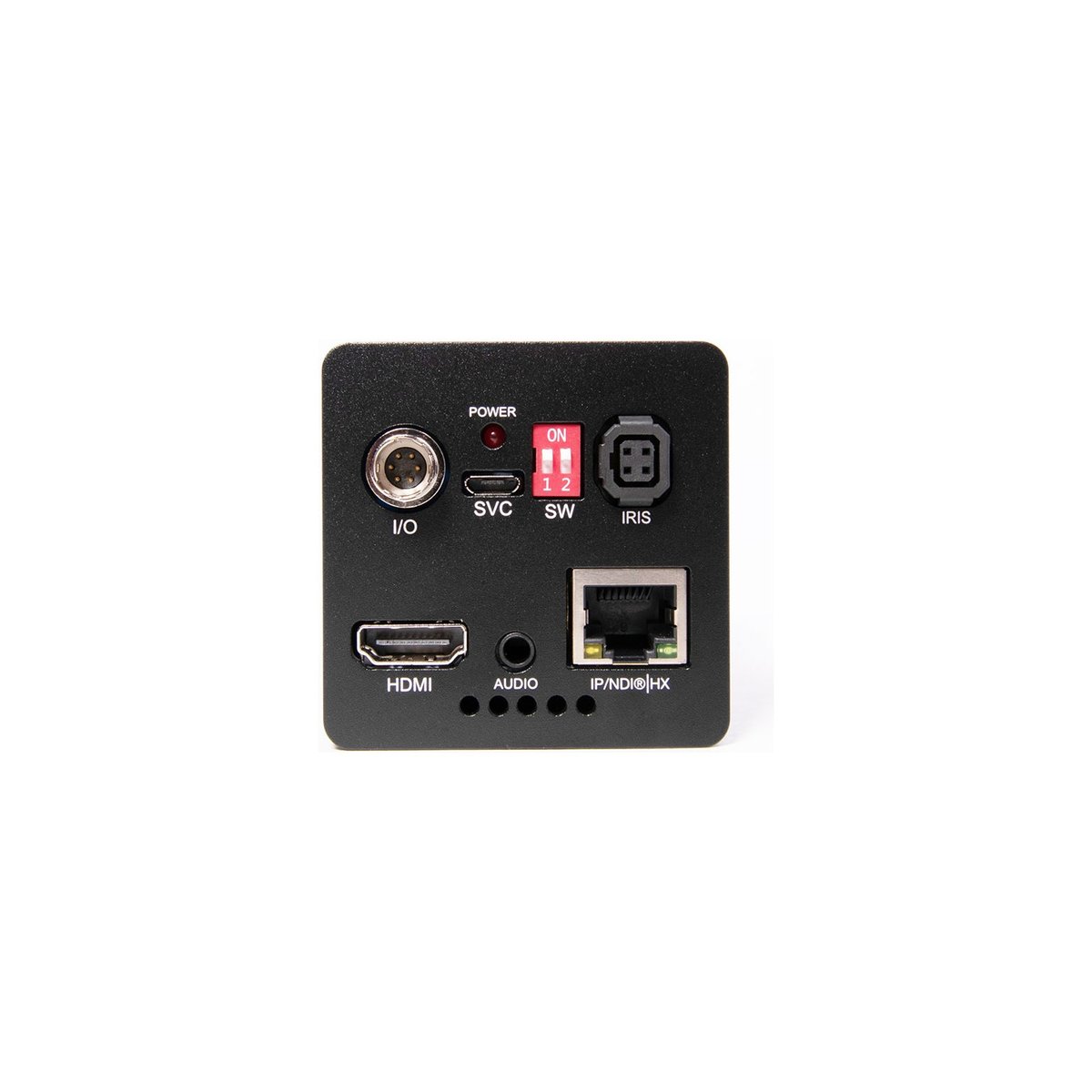

The HD-NDI-200 puts a Full HD 1/2.8-inch progressive CMOS sensor behind NDI|HX2, delivering 1080p60 to an NDI network while also streaming variable-frame-rate IP over RTSP/RTMP and outputting a local 1080p60 HDMI preview -- all three at the same time, from a single RJ45 port carrying both IP and NDI over one Ethernet run. That makes it straightforward to add a camera to an existing NDI production while still giving a technician a local monitor feed without extra cabling.
A C/CS lens mount ships with a 4mm HD lens, and 1/4-20 mounting threads on the top and bottom of the housing make it easy to rig on a stand, mount, or bracket in either orientation. The onboard image processor handles wide dynamic range, auto white balance, and noise reduction for consistent color across venues. It's a practical fit for NDI-based production in broadcast, education, and live event work where camera count needs to grow without adding SDI runs.
| Sensor | 1/2.8-inch progressive CMOS |
|---|---|
| Resolution / Frame Rate | 1080p60 over NDI|HX2 and HDMI |
| Outputs | NDI|HX2, IP (RTSP/RTMP), HDMI preview -- simultaneous |
| Lens Mount | C/CS mount, 4mm HD lens included |
| Connectivity | Single RJ45 port carries IP and NDI |
| Mounting | 1/4-20 threads, top and bottom |
| Power | PoE |
| Image Processing | WDR, auto white balance, noise reduction |
