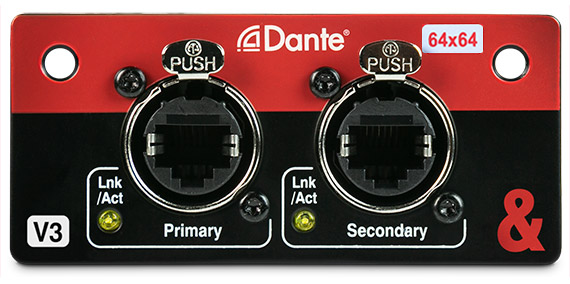

Allen & Heath M-SQ-SDANTE64 Dante Card

The SQ Dante 64x64 card gives any SQ mixer or AHM processor a full 64-in, 64-out interface to a Dante network at 96 kHz or 48 kHz - twice the channel count of the 32x32 card, for systems where the console has to carry a whole stage box plus splits and recording feeds at once.

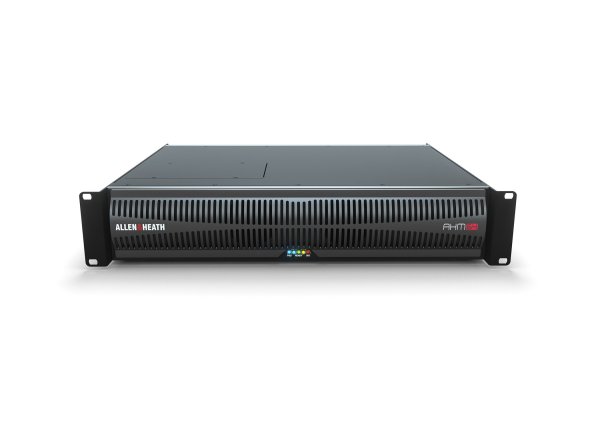

Fitted to an SQ or AHM, it connects to DT expanders, wireless systems, amplifiers, preamps and any other Dante device on the network, and the sample rate switches to match. It also handles digital splits and multitrack recording direct to a computer using Dante Virtual Soundcard, available separately. V1 modules are for SQ; V2 and V3 share the same features and specifications and additionally fit an AHM matrix processor, with SQ firmware V1.5 or higher required.
