Allen & Heath M-SQ-MADI Card

The SQ MADI card fits any SQ mixer or AHM matrix processor with a 64x64 channel MADI interface running at either 48 kHz or 96 kHz. That is the standard link into a broadcast or recording facility, an OB van, or a third-party console, carrying high channel counts over coaxial cable rather than a bundle of analogue tails.

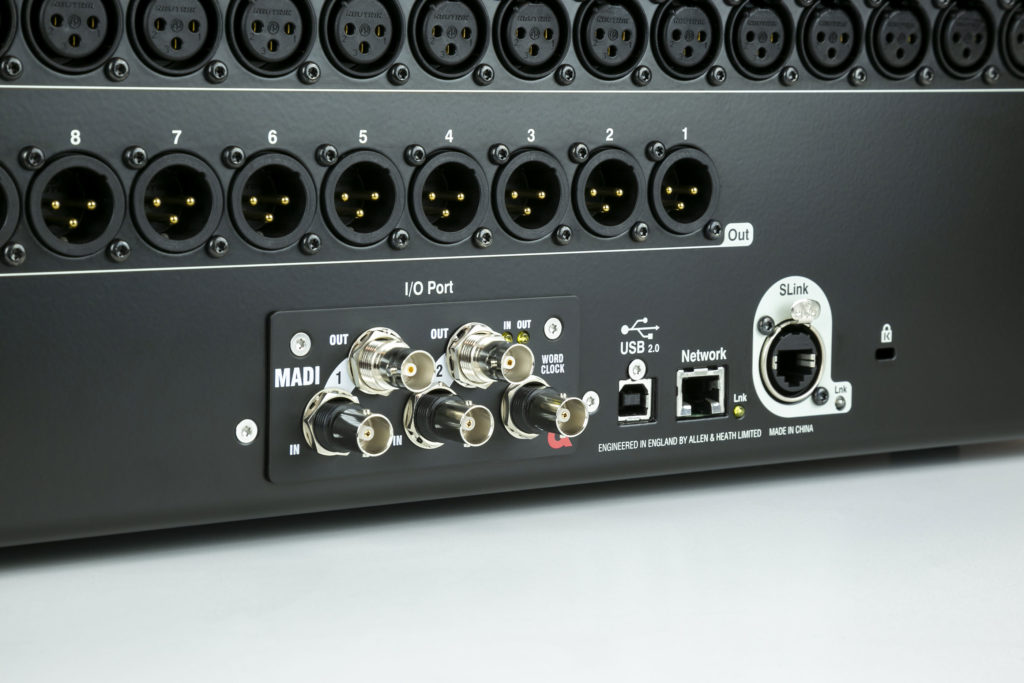

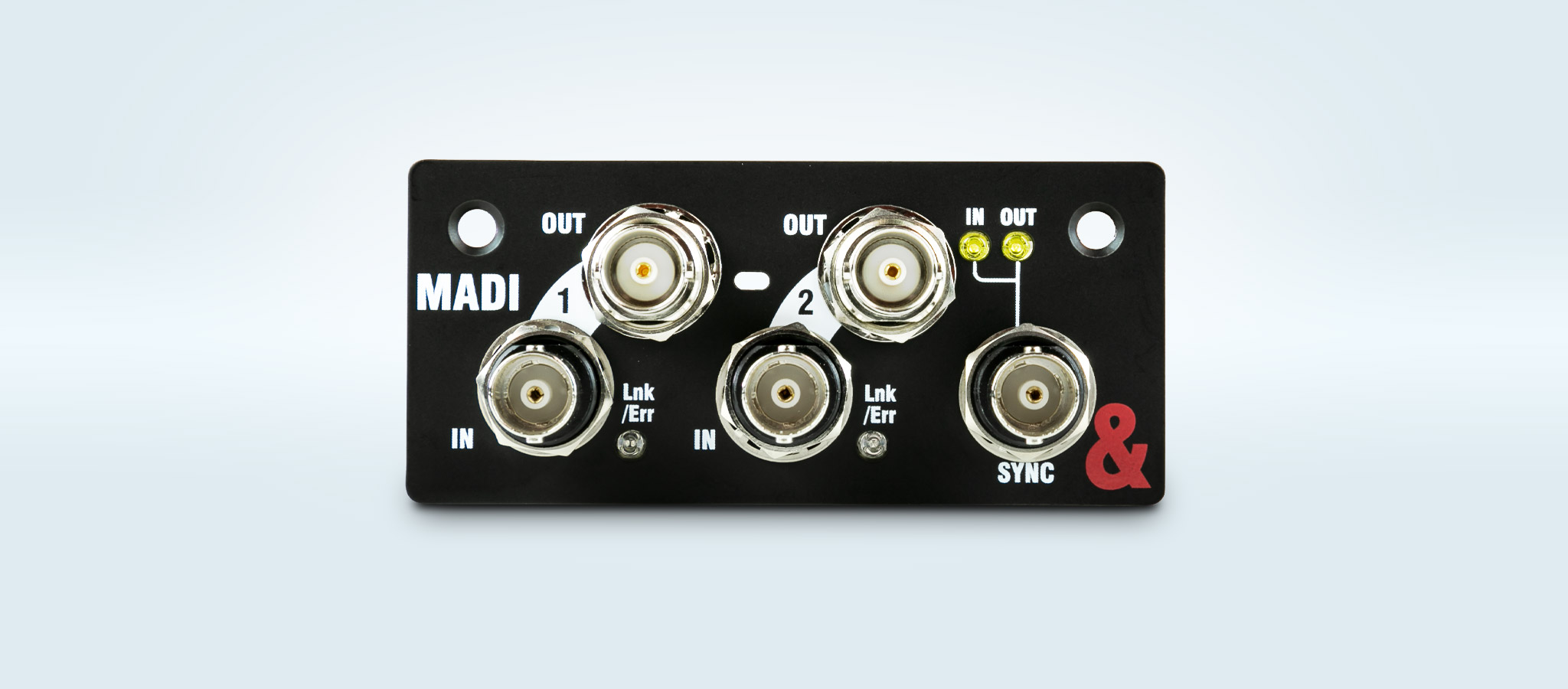

Two BNC inputs pair with two BNC outputs, so the card supports either a split or a redundant configuration, and a dual-function BNC word clock connection works as an input or an output to sync the console with the rest of the facility. It slots into the SQ or AHM option bay alongside Allen & Heath's other networking cards, so a system already carrying Dante or SLink can add MADI without replacing hardware.
