VigilLink VLSM-4KH10V-4FS 4K HDMI Video and Live Streamer with Recording 4K UHD+ Input As H.264, To SD Card,
The VLSM-4KH10V-4FS turns an HDMI source into a live stream with a local archive. Content up to 4K UHD+ is accepted and automatically scaled to a resolution appropriate for streaming, with an HDMI output for local monitoring of the selected source.
Recording goes to an inserted SD card or a network drive, using H.264 at broadcast-oriented quality settings. The unit can act as a streaming server using RTP or RTSP, and a built-in audio mixer blends an external audio source with the embedded audio. It is HDCP 1.x and 2.2 compliant; note that HDCP-encrypted sources cannot be streamed over the internet.
| HDMI Compliance | 2.0 |
|---|---|
| HDCP Compliance | 2.2 |

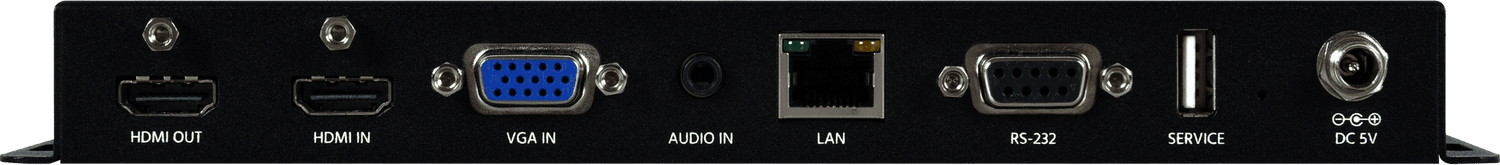

| Input Port | 1 HDMI (Type-A) 1 VGA (HD-15) 1 Unbalanced Stereo (3.5mm) |
| Housing Construction | Metal (Aluminum) |
| Device Dimension (W x H x D) | 231.5mmx25mmx108mm [Case Only] 231.5mmx25mmx117mm [All Inclusive] |
| Weight | 668g |
| Power Supply | 5V/3A |
| Power Consumption | 12.44W(Full load) |
