VigilLink VLDT-WP22B2AUS 2x2 Bluetooth, RCA and 3.5mm Dante Wall Plate, US 2-Gang

The VLDT-WP22B2AUS is a US 2-gang wall plate that gathers Bluetooth 5.1, RCA, and 3.5mm analog sources and puts them on a Dante network. It also works in the other direction, converting Dante back to RCA and 3.5mm outputs at the same plate for local monitoring.

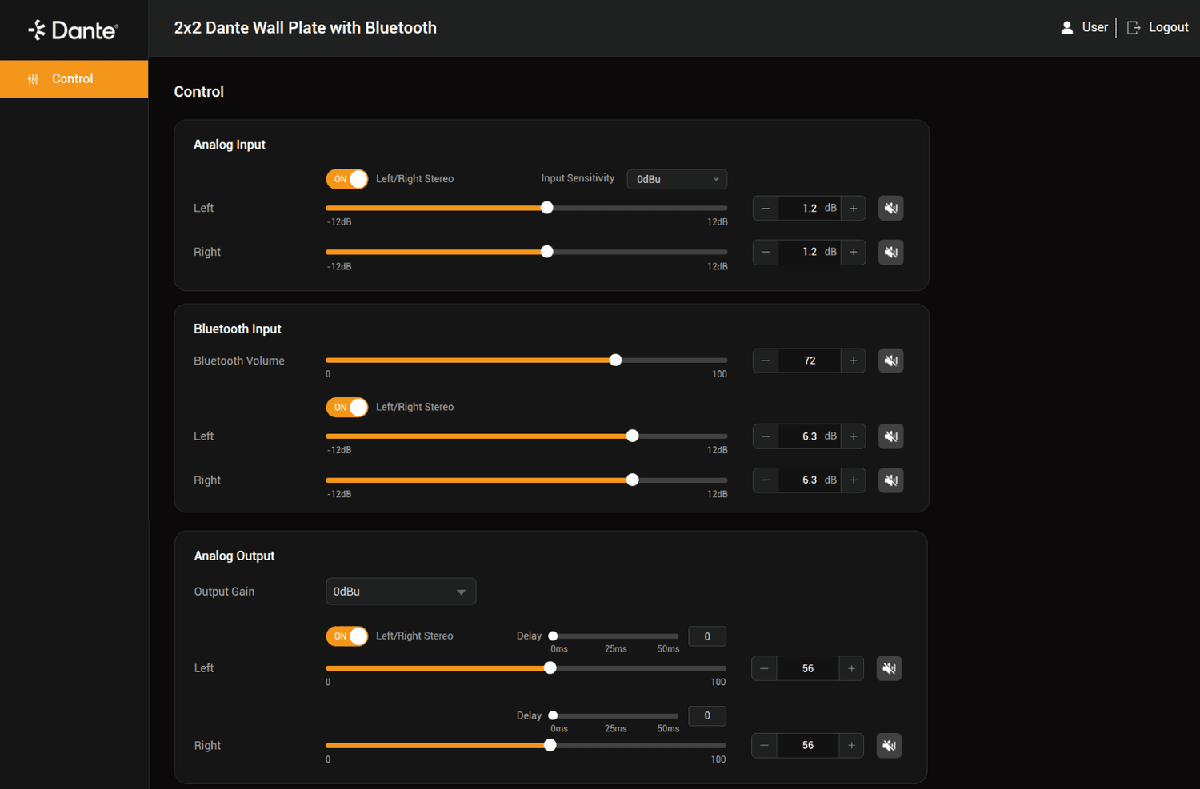

Input sensitivity has six selectable levels and output gain has five, both set in software, so a phone, a laptop, and a playback deck can share the plate without one of them clipping. A single RJ45 carries PoE power and the Dante network.

Network Bandwidth	100Mbps / 328ft (100m)
Input	Unbalanced analog (RCA or 3.5mm audio jack) / Bluetooth audio / Dante digital audio
Output	Unbalanced analog (RCA and 3.5mm audio jack simultaneously) / Dante digital audio
Transmission Distance	328ft / 100m (CAT6/6A/7)
Frequency Response	20Hz to 20kHz
Audio S/N Ratio	≥100dB
Audio THD+N	≤0.1%
Audio Latency	Configurable Dante device latency: 2, 3, 4, 5, or 10ms (via Dante Controller)
