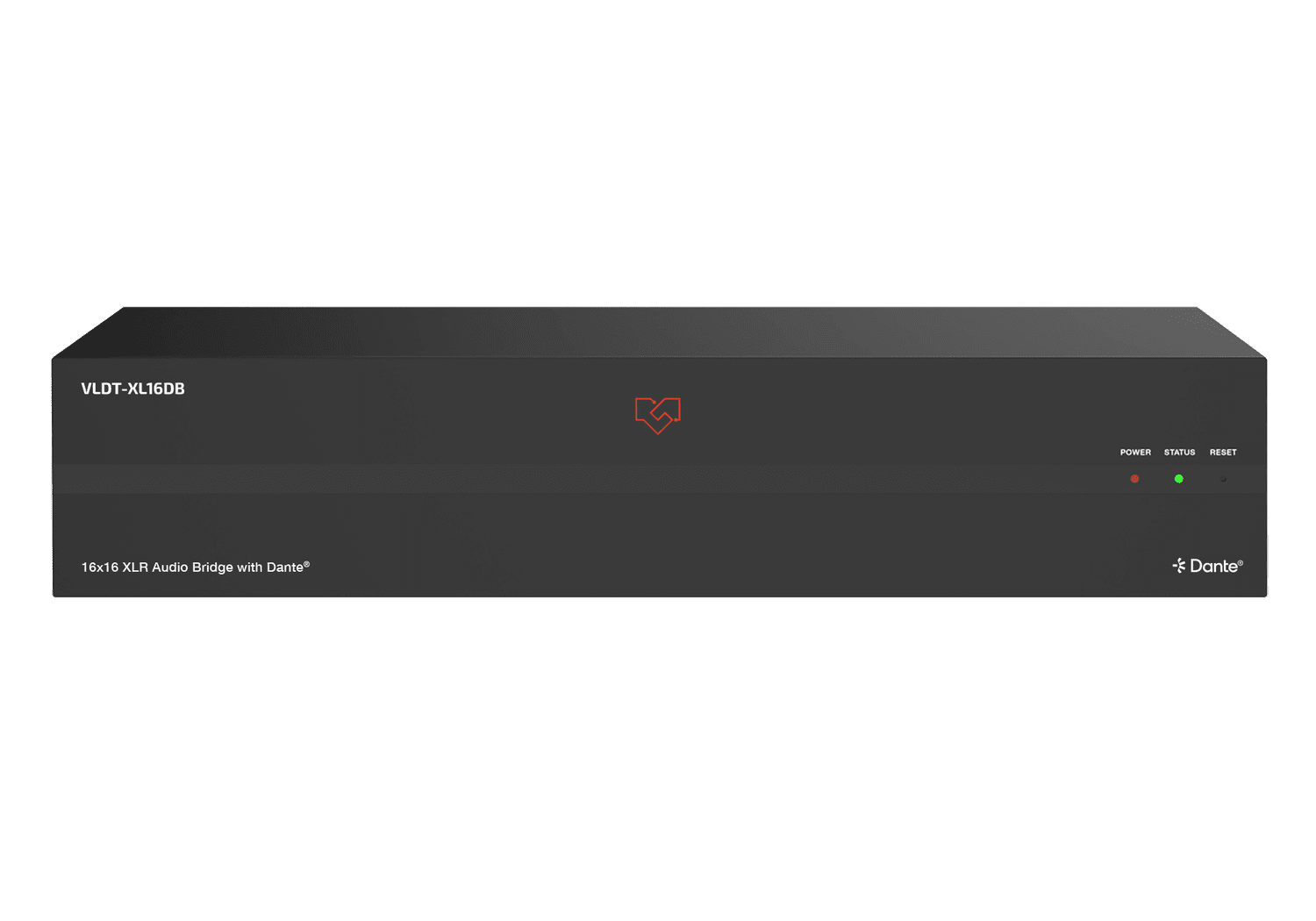

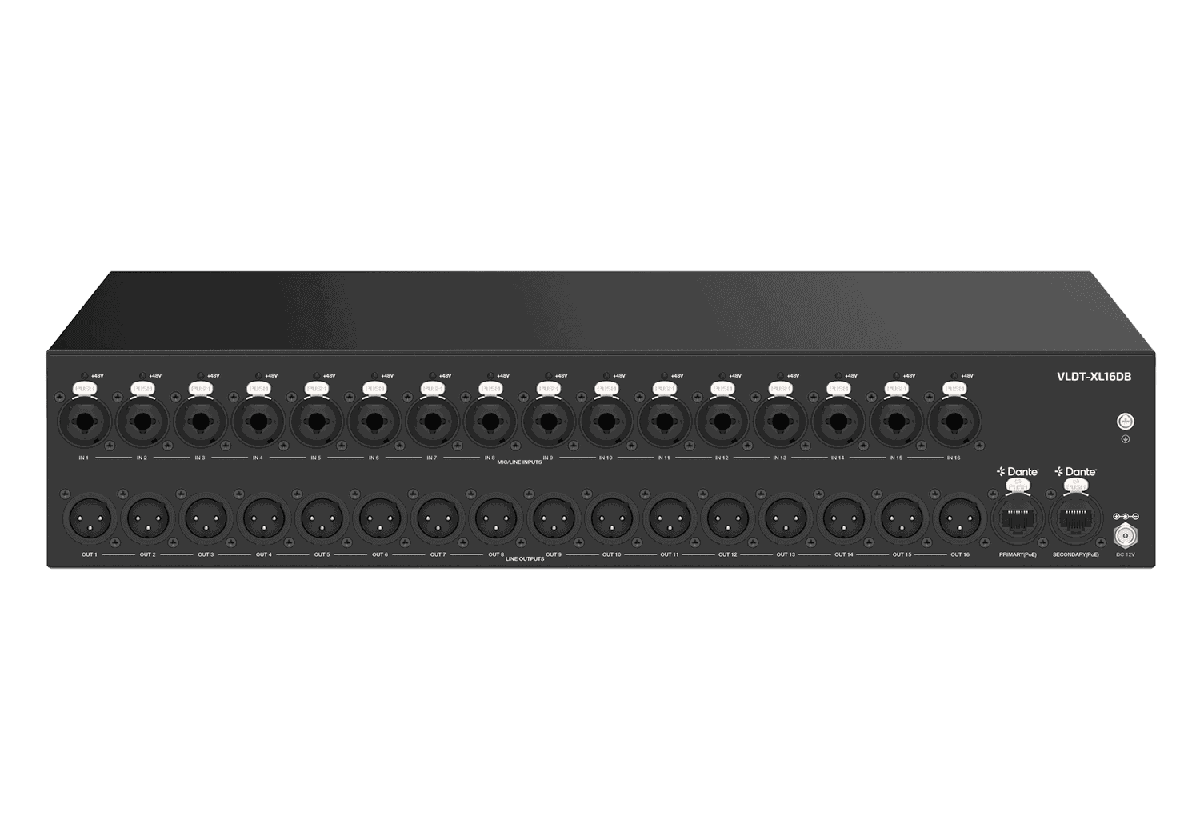

VigilLink VLDT-XL16DB 16x16 XLR Dante Audio Bridge with Dual PoE

The VLDT-XL16DB is the largest bridge in VigilLink's Dante line, connecting sixteen analog XLR or TRS sources and sixteen XLR outputs to an audio network. Microphones, mixers, and legacy analog gear stay in place and reach the rest of the system over one Ethernet run.

Every one of the sixteen channels carries gain, an 8-band parametric EQ, and delay in the on-board DSP. Dual Dante network ports provide redundancy and dual PoE+ inputs keep the unit powered through a switch failure, all in a 1U 19-inch chassis.

Network Bandwidth	Dante Network 1000M
Transmission Distance	328ft/100m (CAT6/6A/7)
Frequency Response	20Hz to 20kHz (+/-0.5dB)
Dynamic Range	≥105dB @ +4dBu, 1kHz A-weighted
Audio S/N Ratio	≥105dB @ +4dBu, 1kHz A-weighted
Audio THD+N	<0.01% at +4dBu, 1kHz
Input Level	Max 24dBu (12.28Vrms) @ balanced line audio; Max 18dBu (6.14Vrms) @ unbalanced line audio; Min -35dBV (17.78mVrms) @ balanced mic audio
Output Level	Max 20dBu (7.75Vrms) @ balanced audio; Max 14dBu (3.875Vrms) @ unbalanced audio
