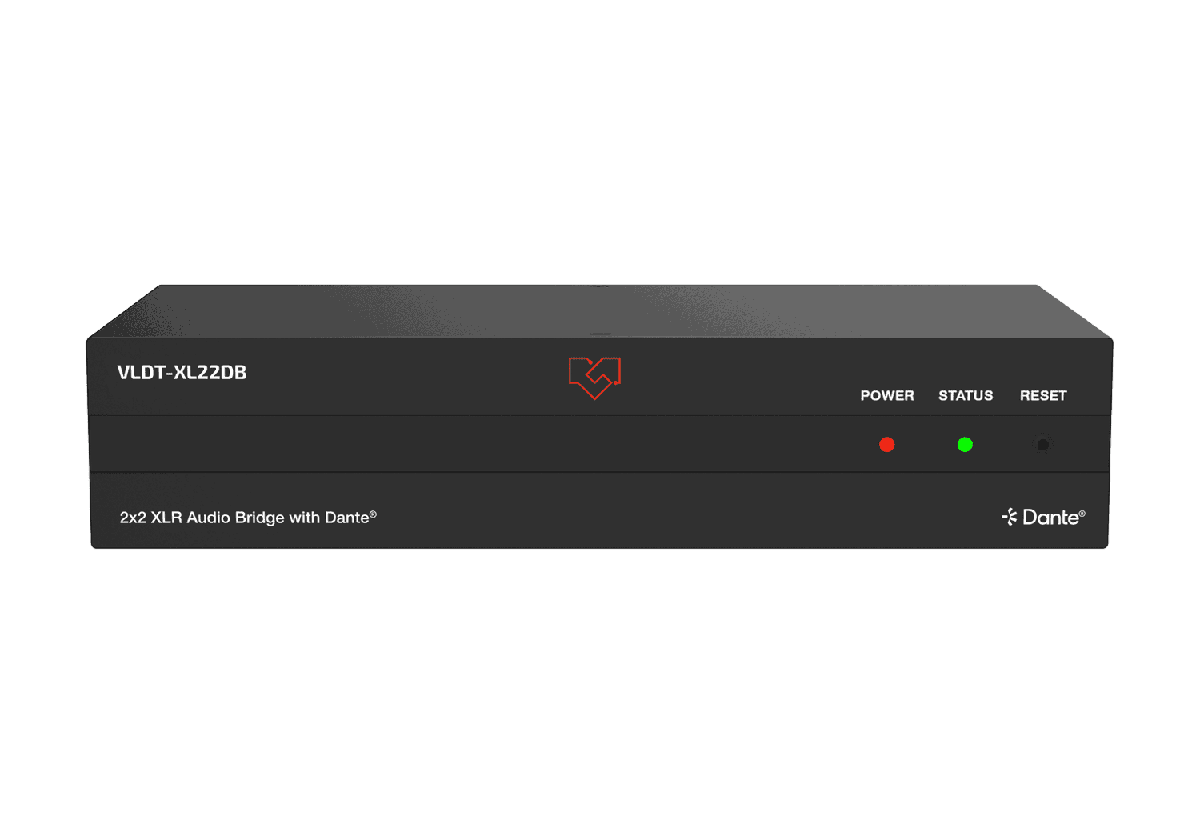

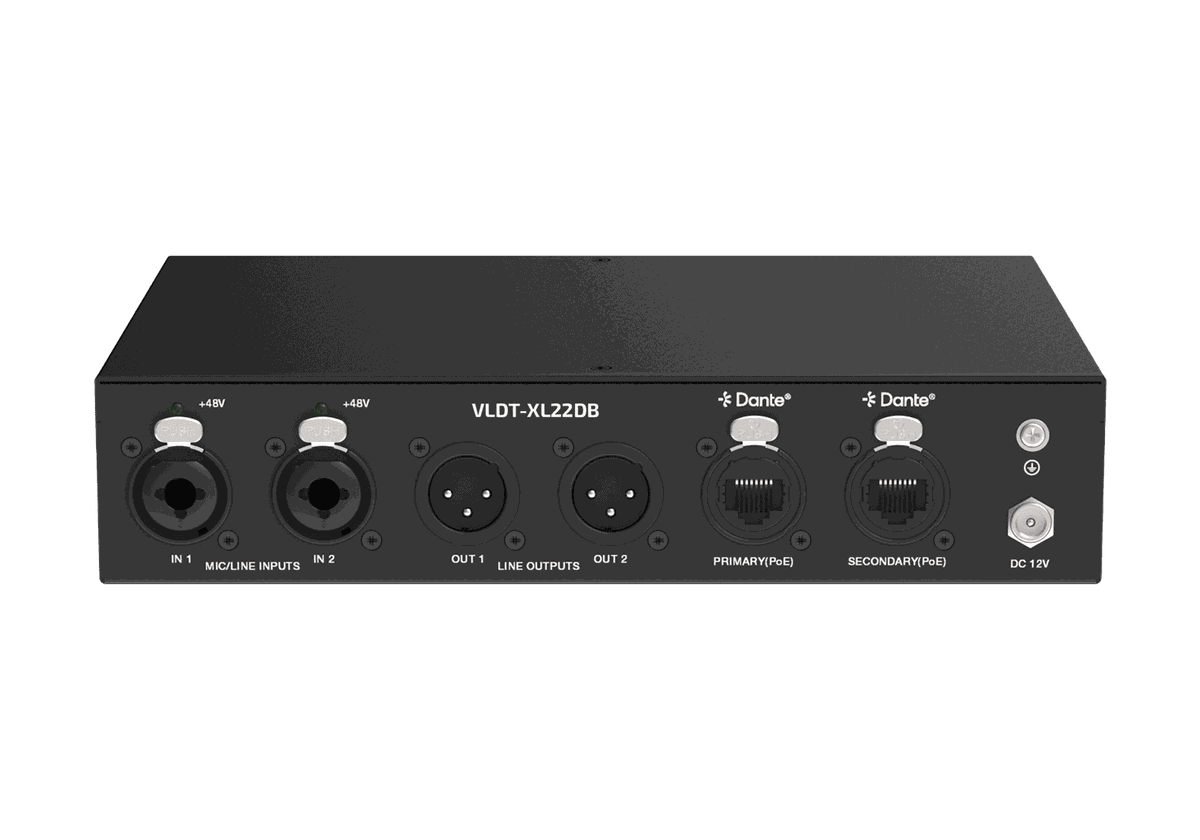

VigilLink VLDT-XL22DB 2x2 XLR Dante Audio Bridge with PoE
The VLDT-XL22DB connects a pair of analog XLR microphones or line sources to a Dante network and returns two channels to XLR outputs. It is the small end of the range, sized for a single room or a local input panel rather than a rack of channels.
Gain, an 8-band parametric EQ, and delay are available per channel from the on-board DSP. Dual Dante network support gives redundancy where it matters, and the unit runs from PoE+ or a local DC supply.
| Network Bandwidth | Dante Network 1000M |
|---|---|
| Transmission Distance | 328ft/100m (CAT6/6A/7) |
| Frequency Response | 20Hz to 20kHz (-/+0.5dB) |
| Dynamic Range | >90dB@0dBu, 1kHzA-weighted |
| Audio S/N Ratio | >90dB@0dBu, 1kHzA-weighted |
| Audio THD+N | < 0.01% at +4dBu, 1KHz |
| Input Level | Max 24dBu (12.28Vrms) @ balanced line audio; Max 18dBu (6.14Vrms) @ unbalanced line audio; Min -35dBV (17.78mVrms) @ balanced mic audio |
| Output Level | Max 20dBu (7.75Vrms) @ balanced audio; Max 14dBu (3.875Vrms) @ unbalanced audio |
