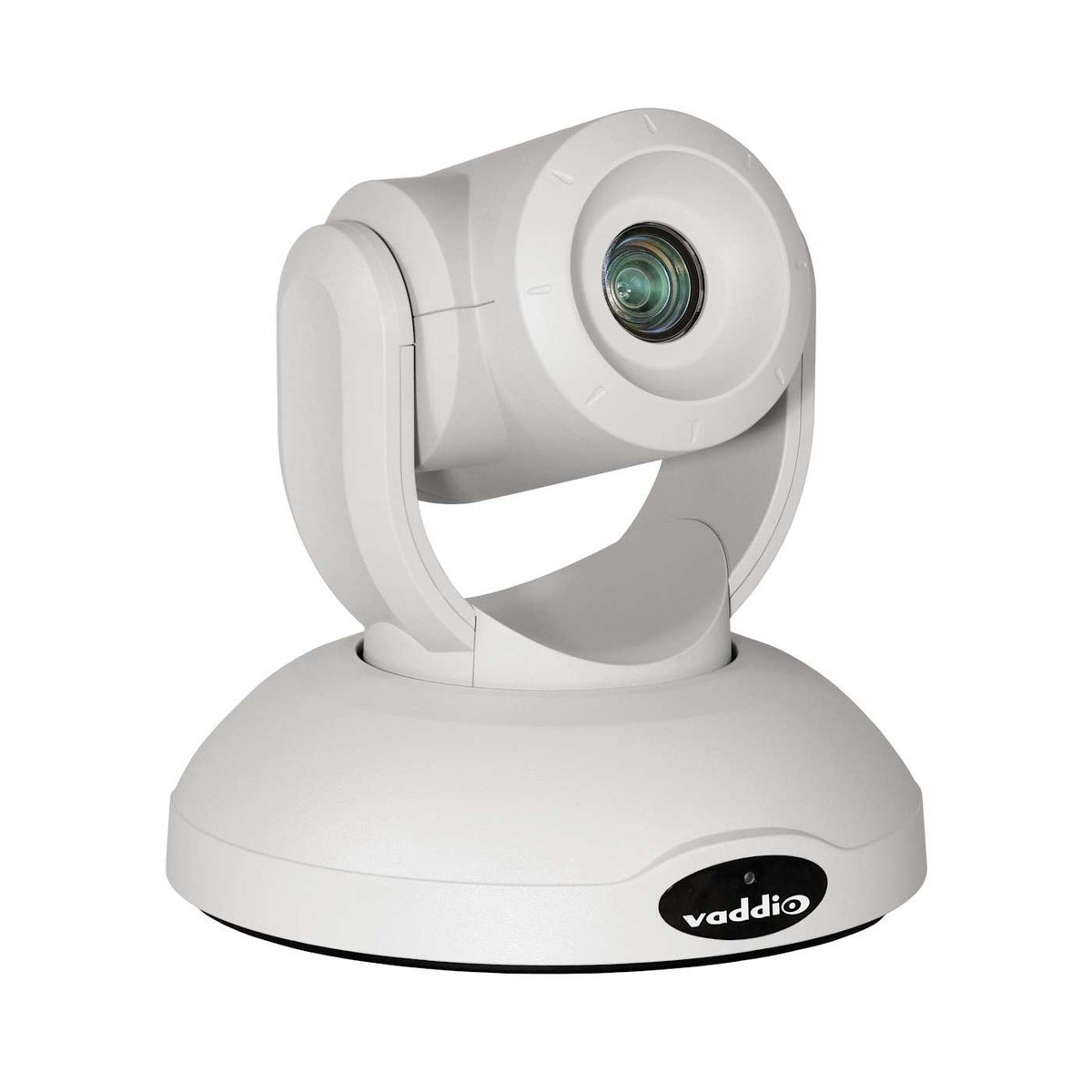

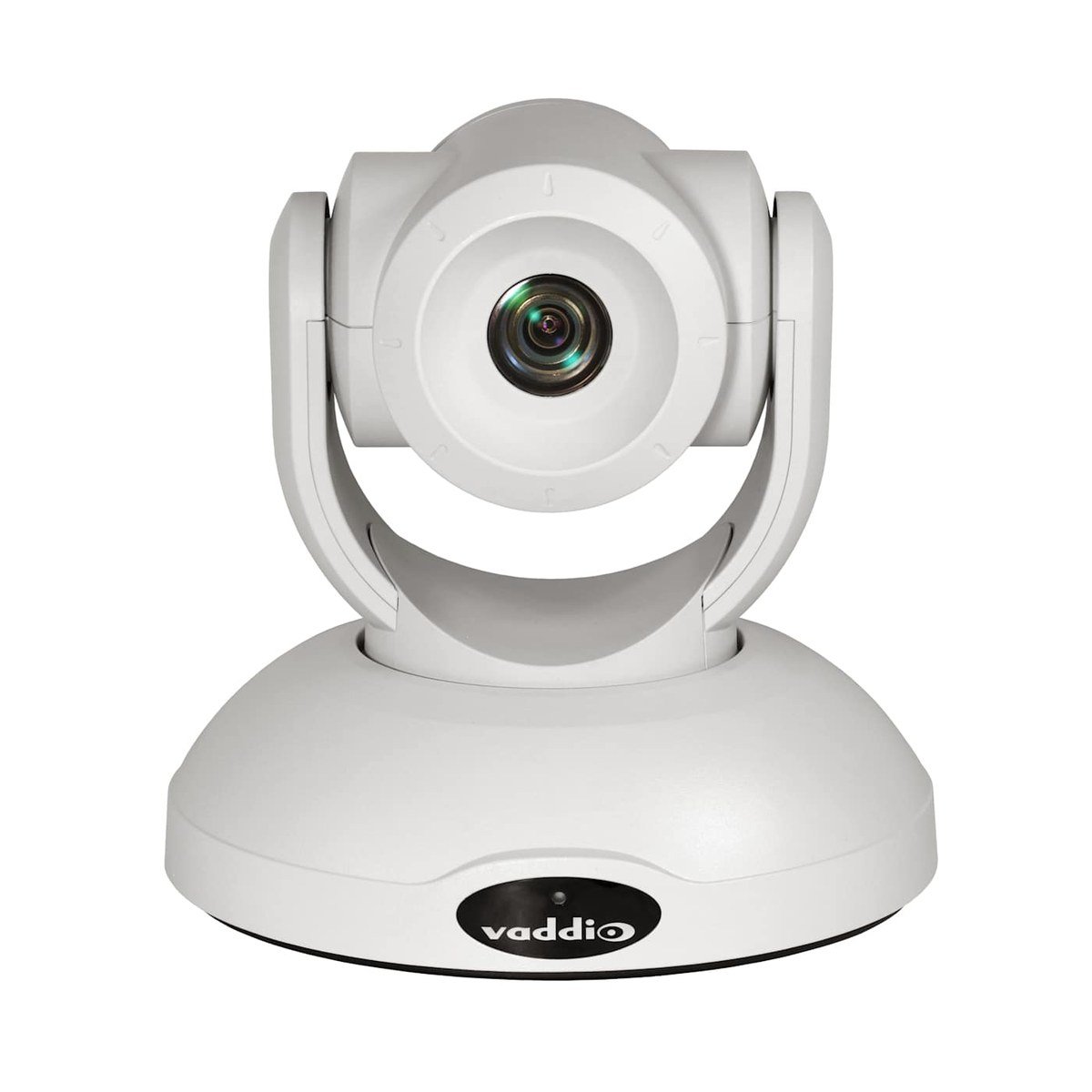

Vaddio RoboSHOT 40 UHD PTZ Camera
The white RoboSHOT 40 UHD is the same broadcast-grade PTZ camera in a finish that disappears against pale walls and ceilings. It is built around a back-illuminated 8.51-megapixel 1/2.5-type Exmor R CMOS sensor that captures native 2160p/30 UHD, with a 20x optical lens that reaches 30x lossless zoom at 4K and 40x at full HD. Enhanced Wide Dynamic Range and spotlight compensation hold detail against bright windows and stage lighting, and a genlock sync port keeps it locked to the rest of a multi-camera cut.

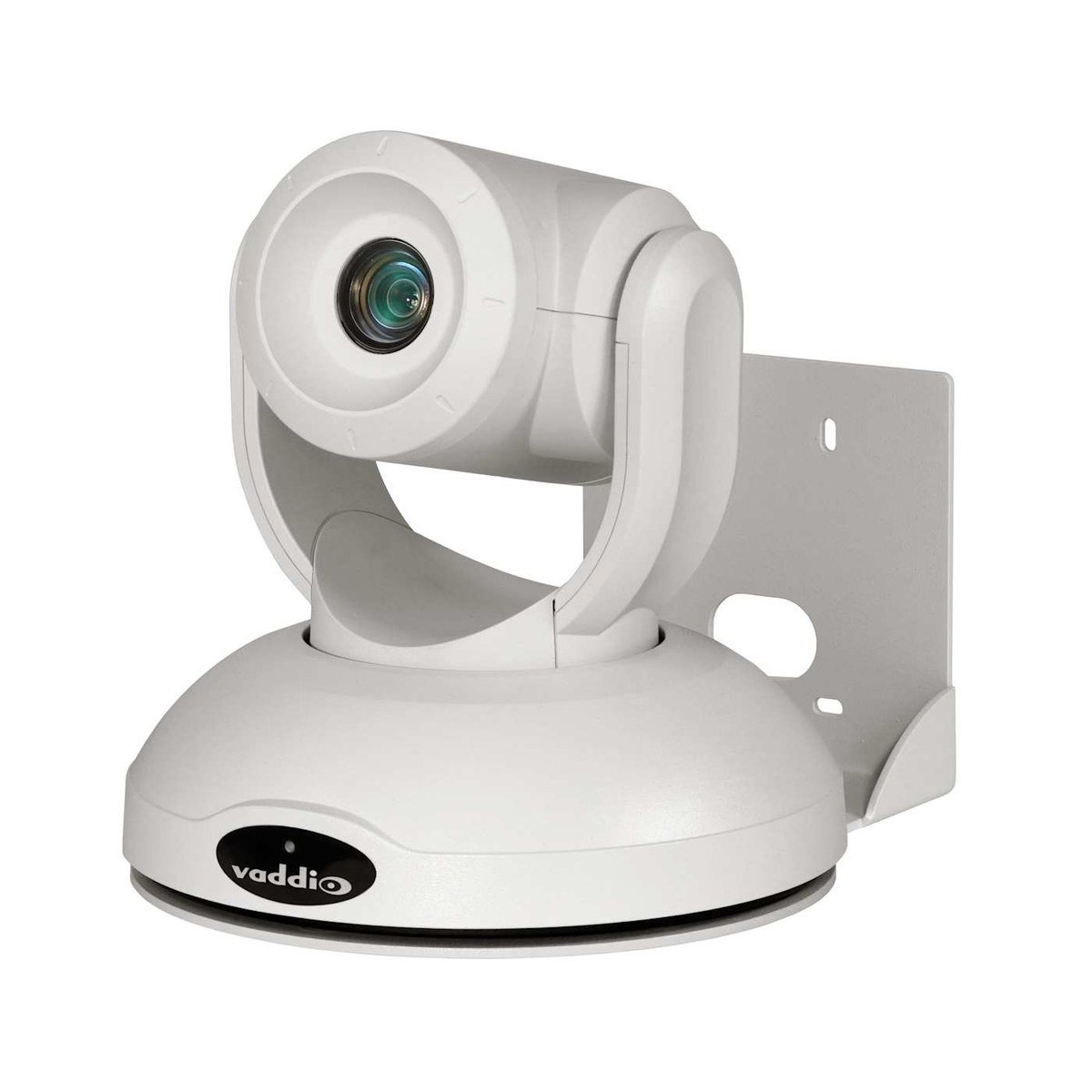

Silent direct-drive motors paired with Vaddio's Tri-Synchronous Motion move pan, tilt and zoom together with no jitter, even at full zoom. It feeds HDMI, HDBaseT, HD-SDI and IP (H.264, up to 1080p/30) outputs simultaneously, and runs on 12 VDC or LTPoE++. In the box: the RoboSHOT 40 UHD camera in white, a 12V power supply, a white Thin Profile Wall Mount with mounting hardware, the Vaddio IR Remote Commander, and an EZCamera RS-232 control adapter.
| Image Sensor | 1/2.5-type Exmor R CMOS, 8.51 megapixel |
|---|---|
| Zoom | 20x optical, 30x lossless at UHD, 40x at HD |
| Horizontal FOV | 70.2 degrees (wide) to 4.1 degrees (tele) |

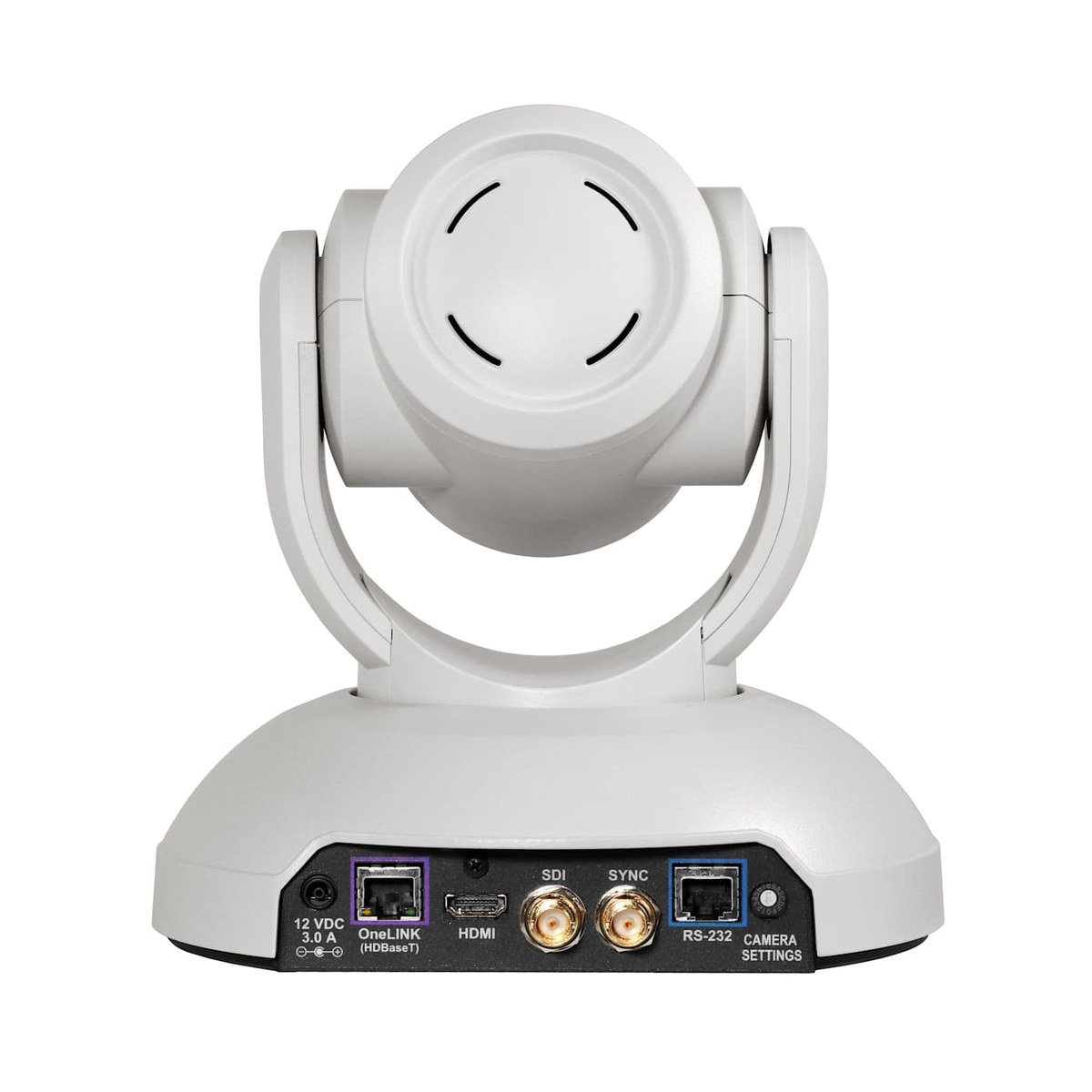

| Video Outputs | HDMI, HDBaseT, HD-SDI, IP (H.264) |
| Resolutions | Up to 2160p/29.97 UHD; 1080p/60 HD |
| Pan / Tilt | Pan +/-160 degrees, Tilt +90 / -30 degrees, 0.35 to 120 deg/sec |
| Power | 12 VDC, 3.0 A, LTPoE++ |
| Included | Camera (white), 12V PSU, white Thin Profile Wall Mount, IR remote, EZCamera RS-232 adapter |
