Vaddio RoboSHOT 40 UHD OneLINK Bridge System

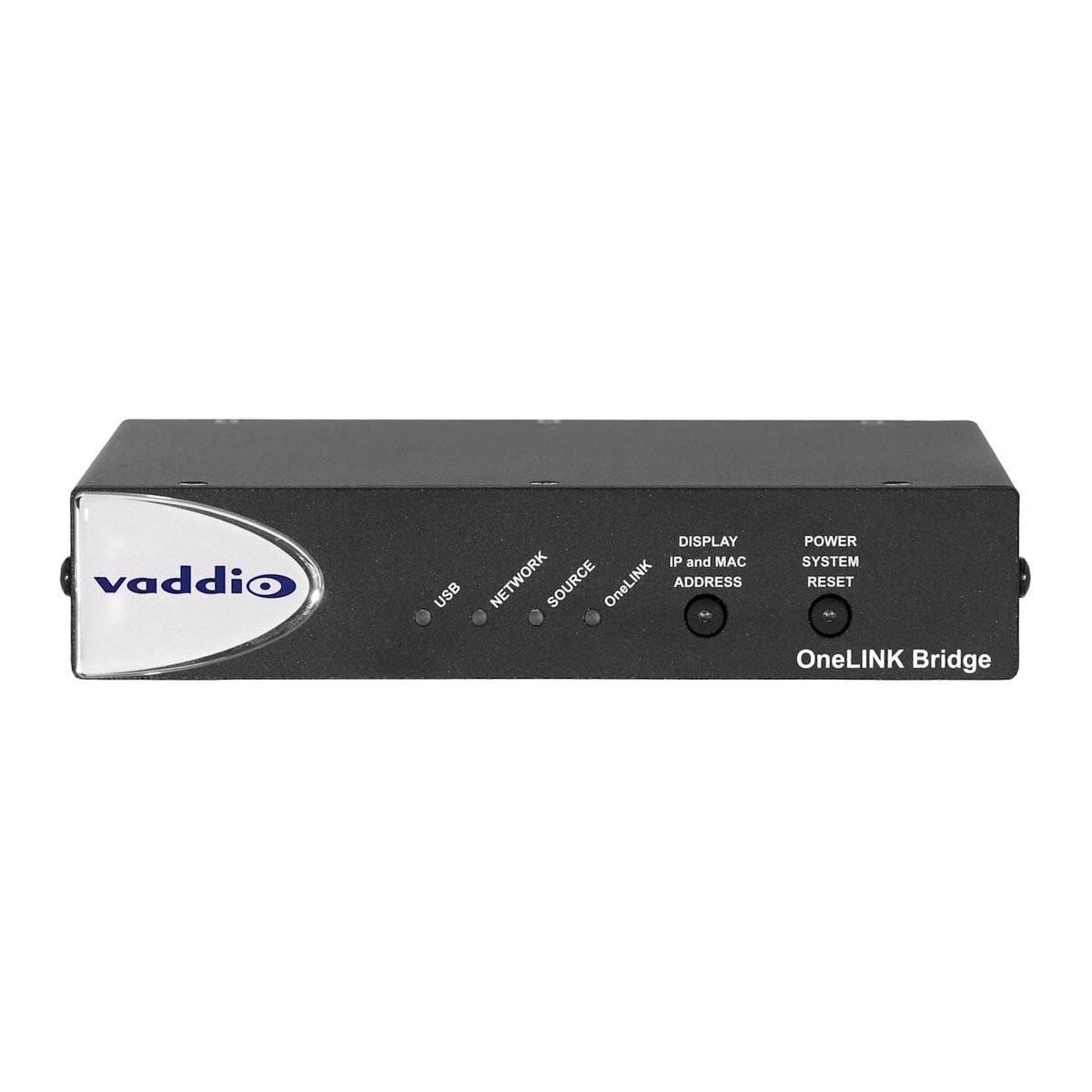

This system pairs the RoboSHOT 40 UHD with the OneLINK Bridge, which is the interface to choose when the 4K camera also has to serve a soft codec. The Bridge presents HDMI, uncompressed USB 3.0 at up to 1080p/60, an IP stream and 3G-SDI simultaneously, and carries a configurable audio matrix with acoustic echo cancellation for the room microphones.

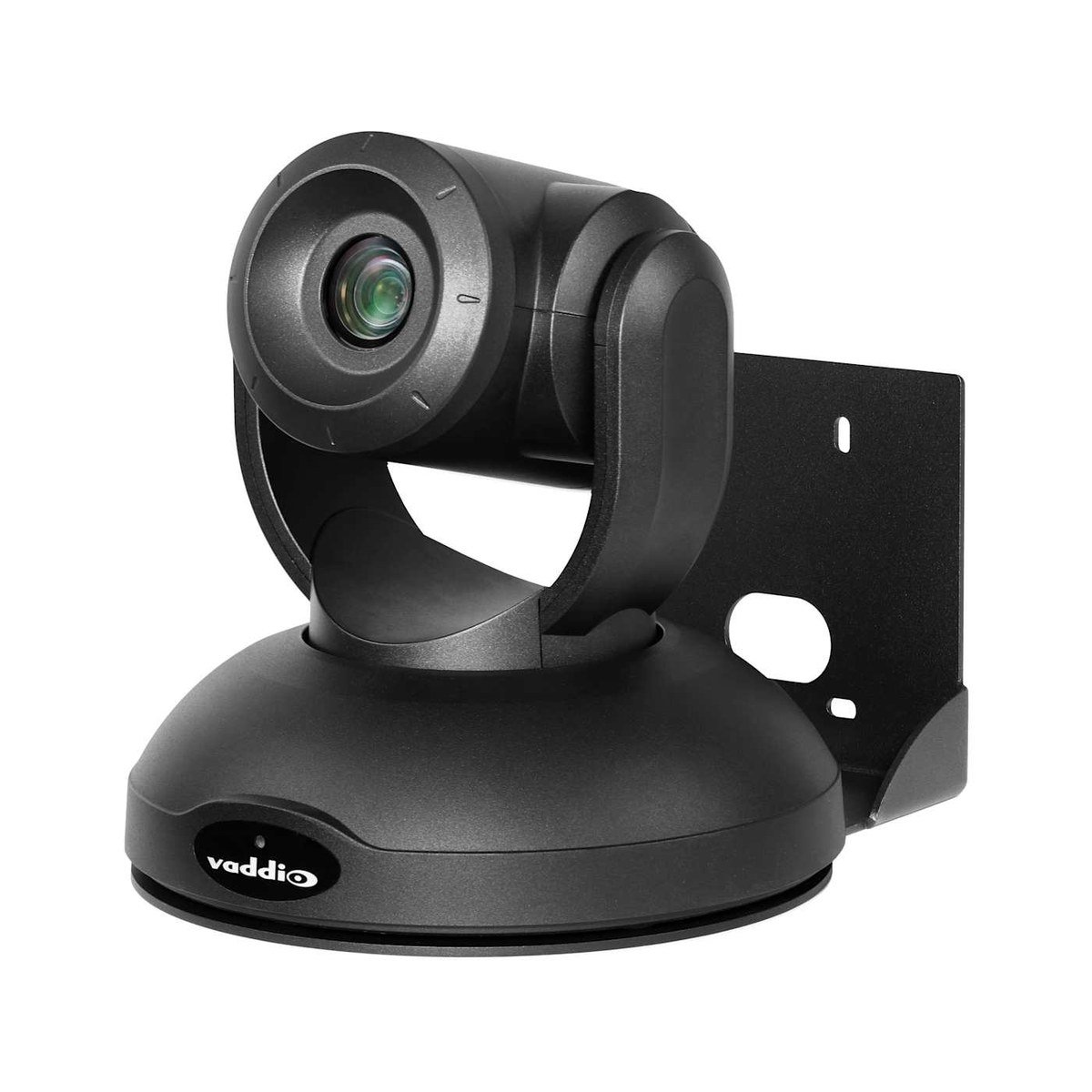

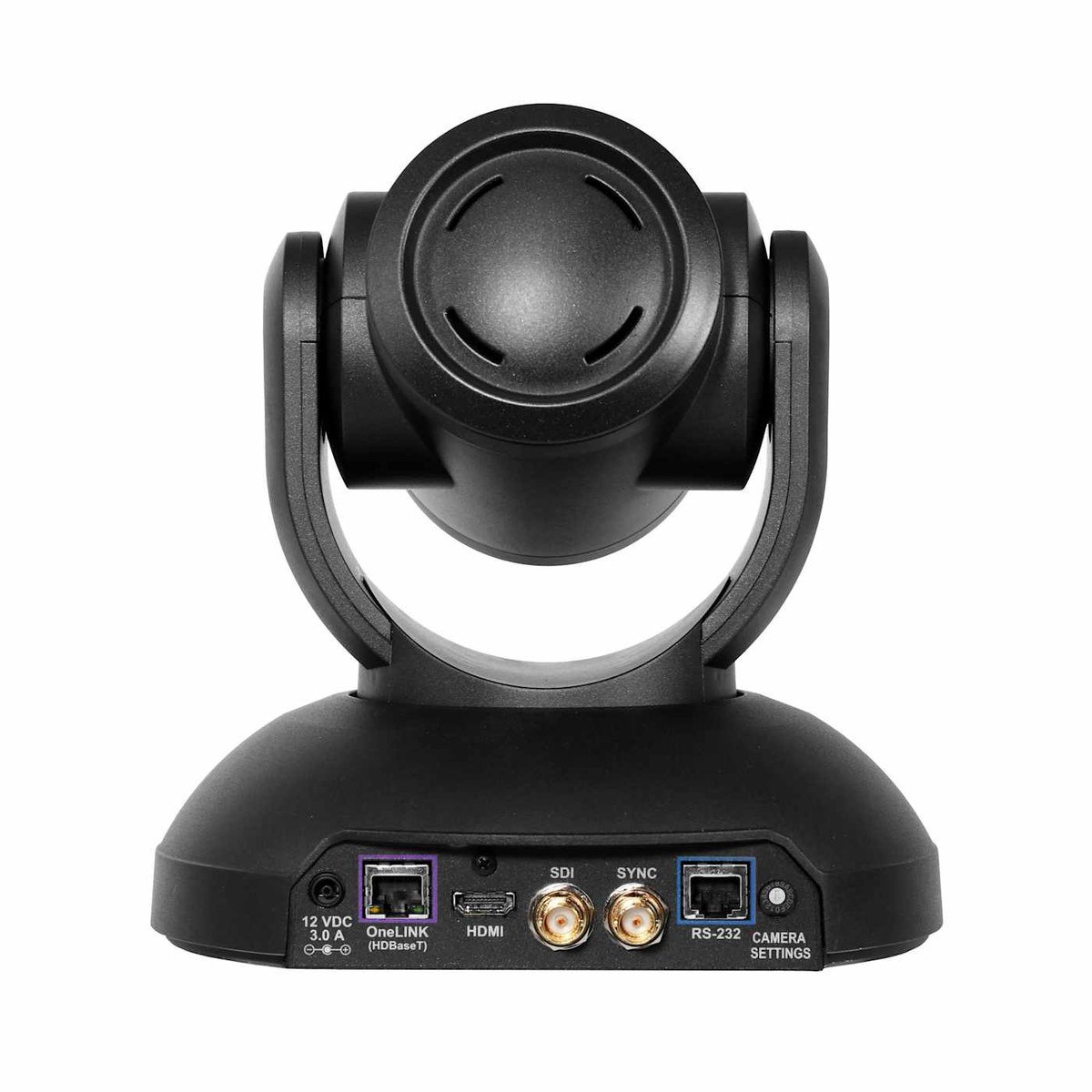

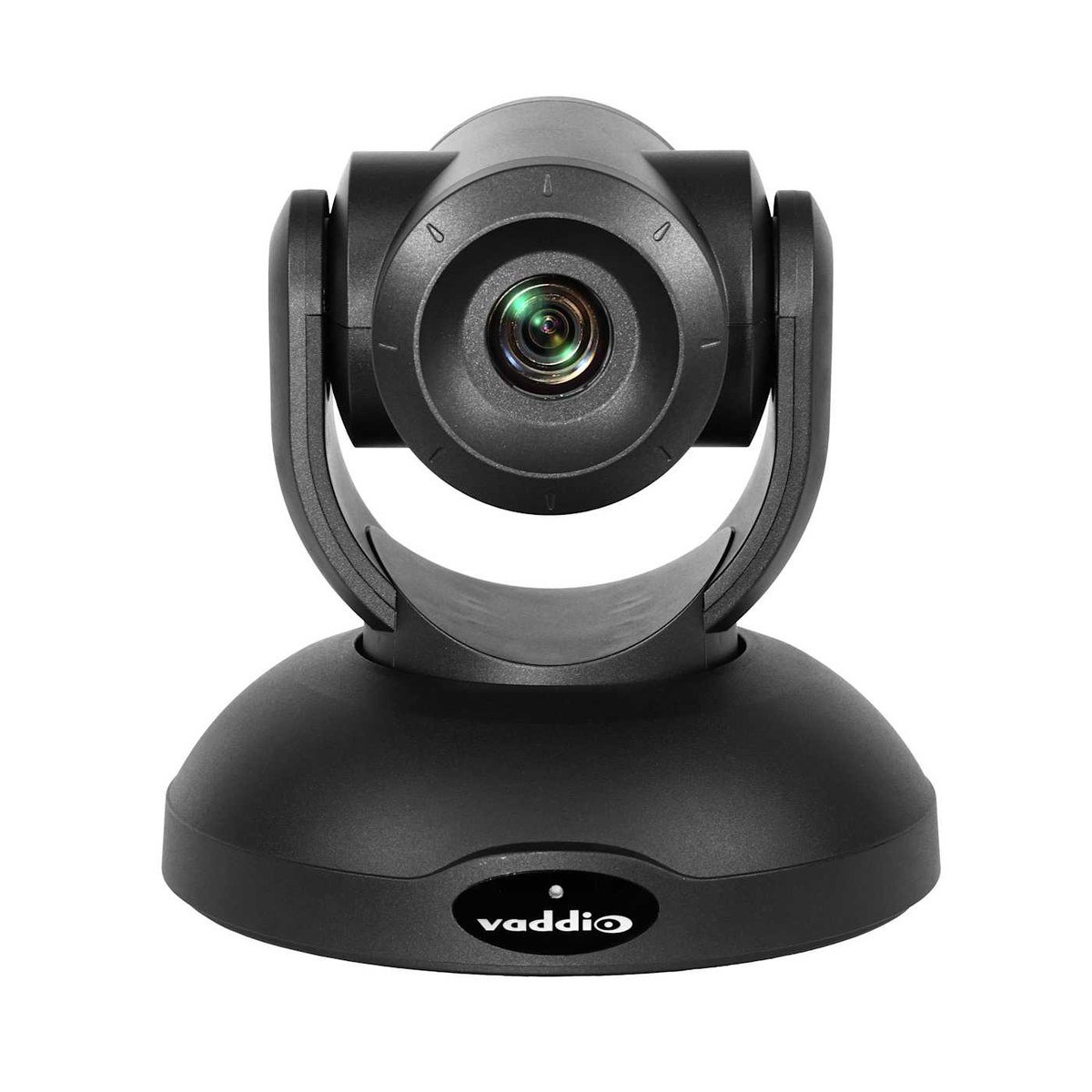

The camera is built around a back-illuminated 8.51 megapixel 1/2.5-type CMOS sensor delivering native 2160p/30 at 3840 x 2160, with 20x optical zoom, 30x lossless zoom at UHD and 40x at full HD, plus genlock for multi-camera synchronisation. Vaddio lists it for broadcast and corporate broadcast, campus news, houses of worship, live and sporting events, large auditoriums and concert halls. Power, video and control run on a single Cat-5e cable to 230 ft or Cat-6 to 328 ft. Ships with the camera, a Thin Profile Wall Mount in the matching finish with mounting hardware and the OneLINK Bridge interface.
