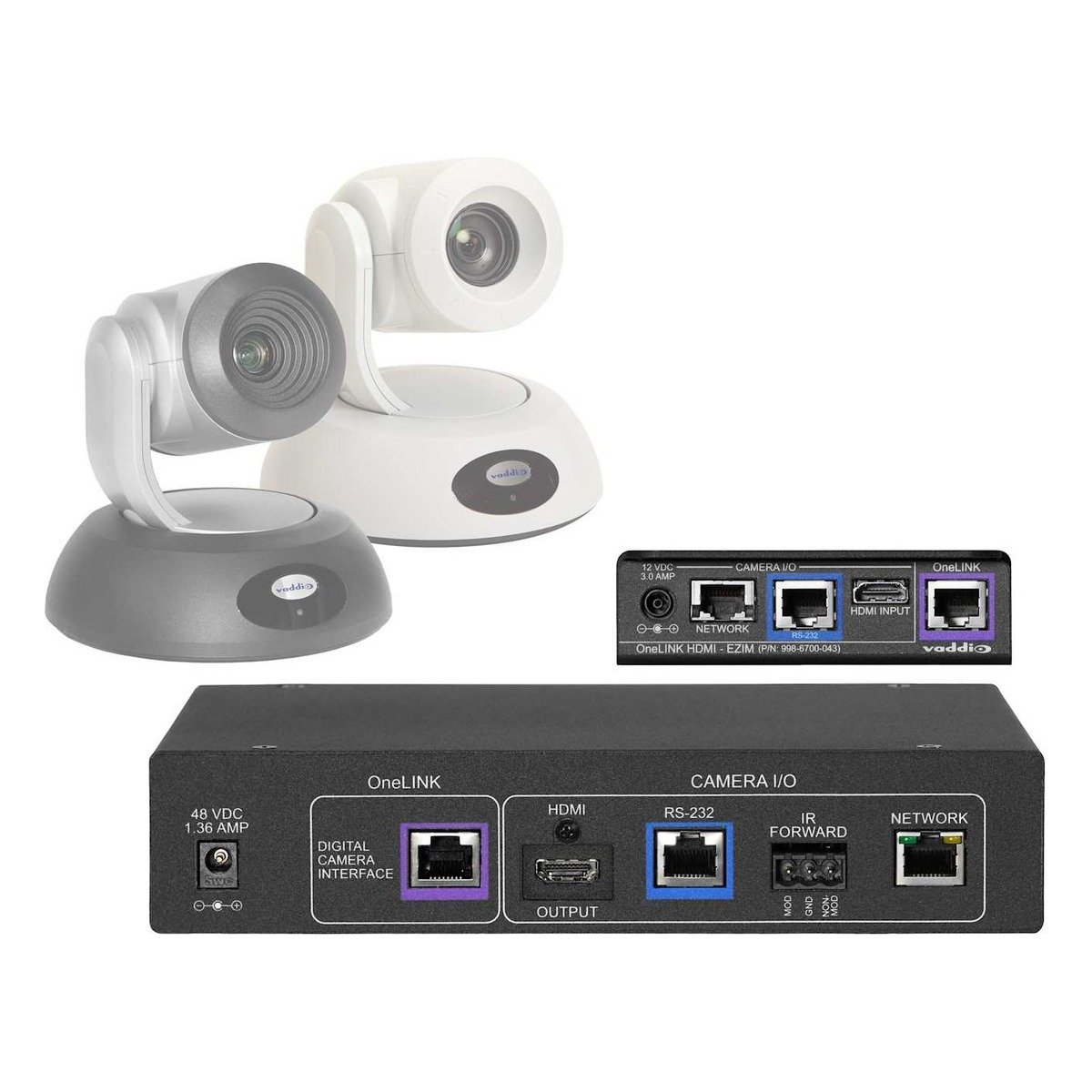

Vaddio Cisco Codec Kit for OneLINK HDMI to RoboSHOT HDMI Cameras

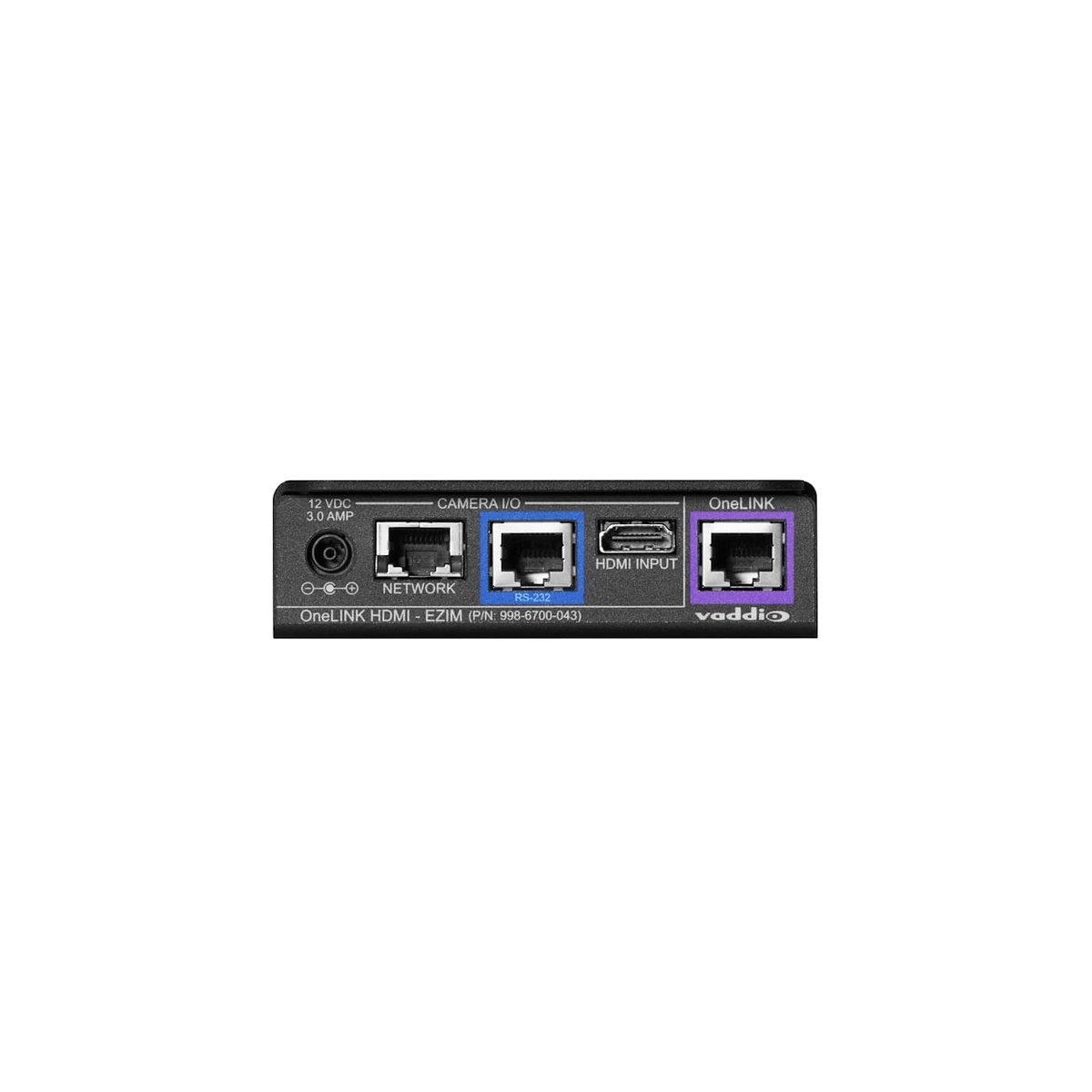

This kit builds on Vaddio's OneLINK HDMI extension system to connect a RoboSHOT HDMI camera to a Cisco codec over a single Cat-5e cable. It targets Cisco Telepresence SX20, SX80, and C-Series codecs and is compatible with the RoboSHOT 12 HDMI and RoboSHOT 30 HDMI cameras, folding camera video, power, and control into one tidy run instead of separate HDMI, power, and serial cabling. The OneLINK HDMI EZIM converts the camera's HDMI output onto the HDBaseT link, and the interface delivers HDMI video up to 1080p/60 at the codec end.

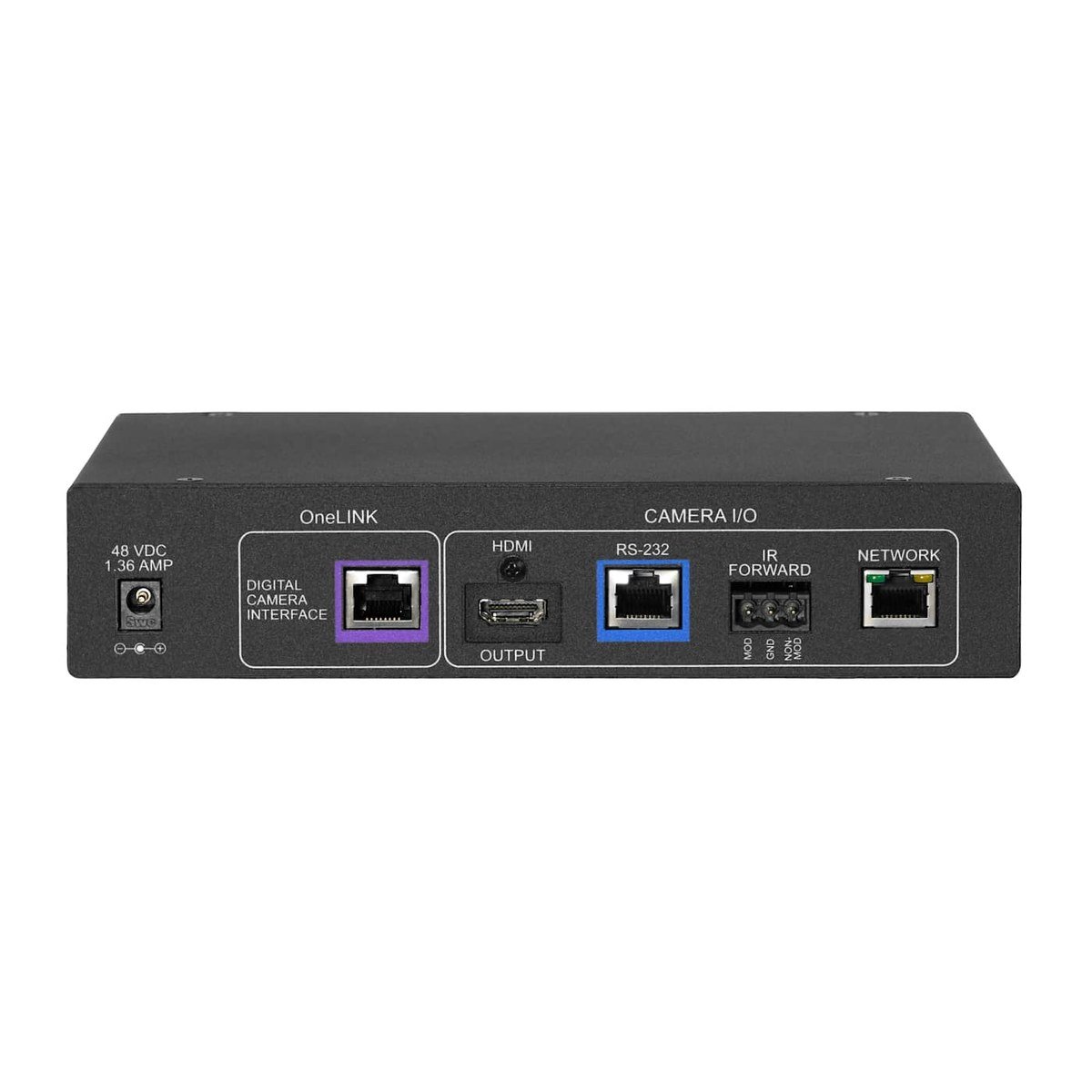

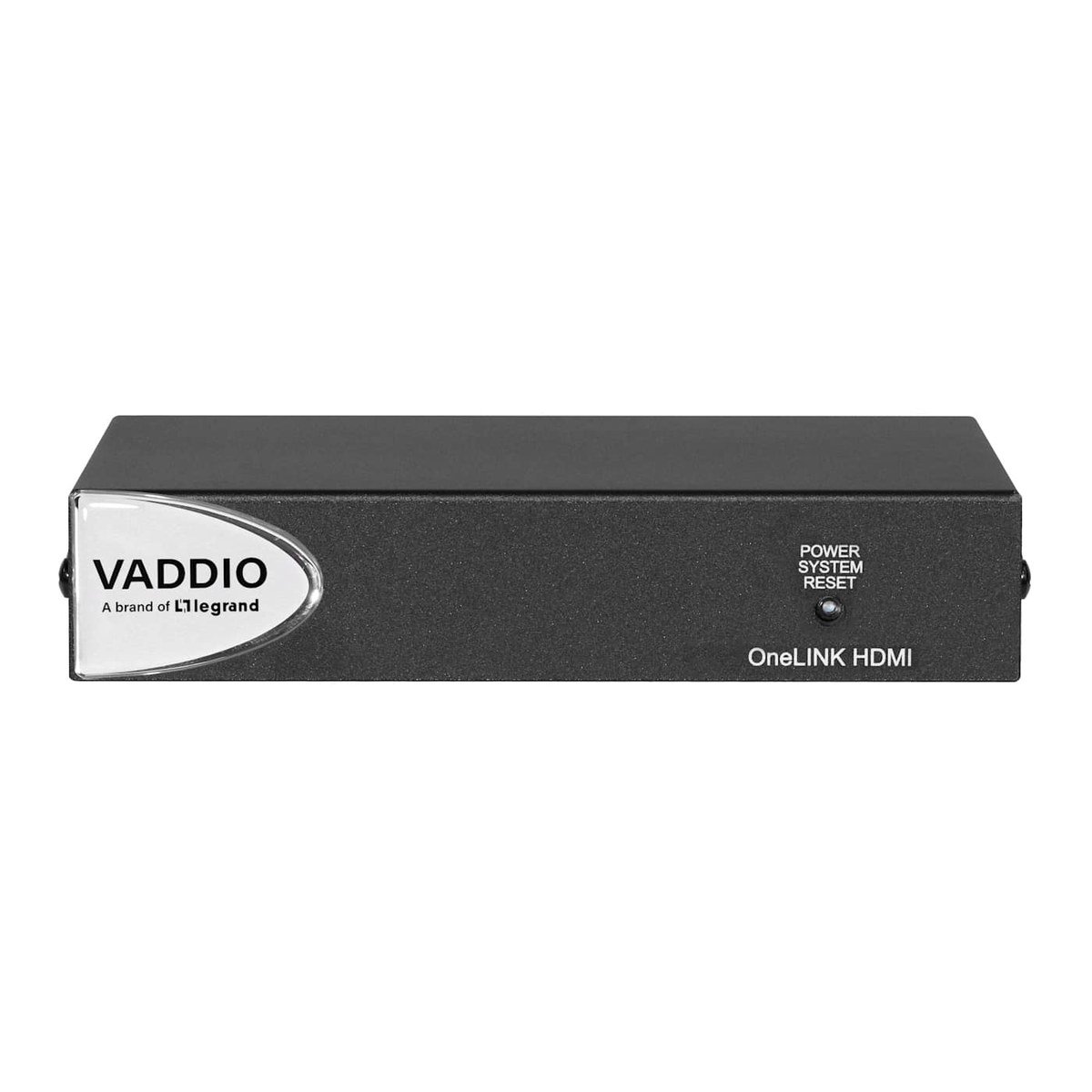

The interface reaches up to 328 feet over Cat-5e, powers the camera at the far end, and provides bidirectional RS-232 and IP control. The kit ships with the OneLINK HDMI interface, the OneLINK HDMI EZIM with mounting screws, a 48V power supply, a set of Cat-5 cables including a directional cable for the Cisco SX20, short and long HDMI cables, an EIAJ-04 camera power cable, and an EZCamera RS-232 control adapter (998-1002-232) for the Cisco codec serial ports. When connecting a Cisco SX20, a Cisco CAB-PHD4XS2-SPLIT cable must be supplied separately.
