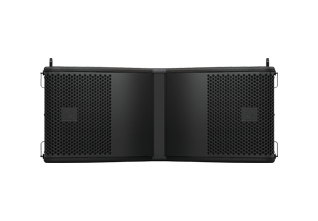

Turbosound MANCHESTER MV210-HC Dual 10" Hybrid Curve Line Array Element
The MV210-HC is the hybrid curve element of the Turbosound MANCHESTER system, a compact dual 10" box that opens to 20 degrees vertically so a short hang covers a room the long-throw elements would overshoot. It runs on Lake DSP and Lab.gruppen amplification like the rest of the line.
The bi-amped three-way design pairs two 10" low frequency drivers with a 1.4" exit large format dual compression driver, wired LF on pins 1 and MHF on pins 2 over two NLT4MP STX connectors. The enclosure is 15 mm marine birch plywood with an 18 mm front, vented and internally braced, in polyurethane black behind a powder coated steel grille, rated IP54, on a three point rigging system.
| Type | Dual 10" hybrid curve line array element, external bi-amp |
|---|---|
| Frequency response (-3 dB) | 58 Hz - 20 kHz |
| Frequency response (-10 dB) | 42 Hz - 20 kHz |
| Nominal dispersion | 100 degrees H x 20 degrees V |
| Power handling (IEC) | LF 800 W, MHF 190 W continuous |
| Maximum SPL | 144 dB |
| Impedance | LF 8 ohms, MHF 12 ohms |
| Components | 2 x 10" (250 mm) LF drivers, 1 x 1.4" (35 mm) exit large format dual compression driver |
| Connectors | 2 x speakON NLT4MP STX |
| IP rating | IP54 |
| Dimensions (H x W x D) | 295 x 715 x 545 mm (11.6" x 28.1" x 21.5") |
| Net weight | 35.5 kg (78.3 lbs) |
