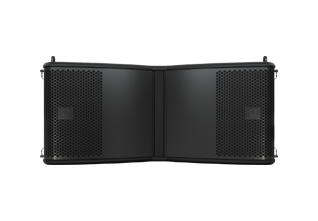

Turbosound MANCHESTER MV212 Dual 12" Line Array Element
The MV212 is the full size element of the Turbosound MANCHESTER line array, a dual 12" three-way cabinet with 5 degrees of vertical coverage for long throws in medium and large venues. It is designed around Lake DSP and Lab.gruppen amplification.
Two 12" low frequency drivers work with two 1.4" exit large format Dual Concentric coaxial compression drivers, externally bi-amped over two NLT4MP STX connectors with LF on pins 1 and MHF on pins 2. The enclosure is 15 mm marine birch plywood with an 18 mm front, vented and internally braced, in polyurethane black behind a powder coated steel grille, rated IP54, on a three point rigging system. The MAN-FG fly grid and MV212-VT are the matching accessories.
| Type | Dual 12" full size line array element, external bi-amp |
|---|---|
| Frequency response (-3 dB) | 50 Hz - 20 kHz |
| Frequency response (-10 dB) | 35 Hz - 20 kHz |
| Nominal dispersion | 100 degrees H x 5 degrees V |
| Power handling (IEC) | LF 600 W continuous 2400 W peak, MHF 380 W continuous 1520 W peak |
| Maximum SPL | 149 dB |
| Impedance | LF 8 ohms, MHF 6 ohms |
| Components | 2 x 12" (315 mm) LF drivers, 2 x 1.4" (35 mm) exit large format Dual Concentric coaxial compression drivers |
| Connectors | 2 x speakON NLT4MP STX |
| IP rating | IP54 |
| Dimensions (H x W x D) | 354 x 810 x 490 mm (13.9" x 31.9" x 19.3") |
| Net weight | 53 kg (116.85 lbs) |
