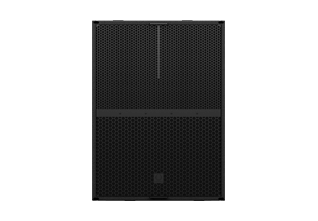

Turbosound MC15-R 15" Close Cluster Point Source Element
The MC15-R is a 15" point source element built to cluster tightly, with 30 degrees of horizontal coverage and a vertical pattern that runs from level to 30 degrees down. Several boxes on the rail-and-track rigging behave as one source across a wide seating bowl.
It is an externally bi-amped design: a 15" low frequency driver rated 800 W continuous and a 1.4" exit large format dual compression driver, wired LF on pins 1 and MHF on pins 2 across two NL4M connectors. The cabinet is 12 mm and 15 mm plywood in black textured polyurethane behind a powder coated steel grille, rated IP54. The MC15-FB fly bar, MC15-RS rigging system, MC15-RC rigging chain and MC15-WB wheel board are the matching hardware.
| Type | 15" point source close cluster array element, external bi-amp |
|---|---|
| Frequency response (-3 dB) | 55 Hz - 20 kHz |
| Frequency response (-10 dB) | 42 Hz - 20 kHz |
| Nominal dispersion (-6 dB) | 30 degrees H x 0 to -30 degrees V |
| Power handling (IEC) | LF 800 W continuous 3200 W peak, MHF 190 W continuous 380 W peak |
| Maximum SPL | 144 dB |
| Impedance | LF 8 ohms, MHF 12 ohms |
| Components | 1 x 15" (380 mm) LF driver, 1 x 1.4" (35 mm) exit large format dual compression driver |
| Connectors | 2 x NL4M |
| IP rating | IP54 |
| Dimensions (H x W x D) | 700 x 522 x 648 mm |
| Net weight | 47.2 kg (104.05 lbs) |
