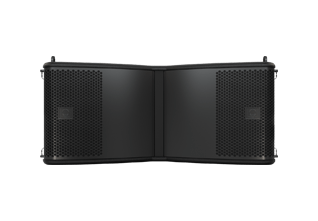

Turbosound MANCHESTER MV212-XV Dual 12" Variable Curvature Line Array Element
The MV212-XV is the variable curvature element of the Turbosound MANCHESTER line array, opening the vertical pattern to 10 degrees so the bottom of a hang can cover near seating that the 5 degree MV212 would fly past. It shares the MV212 footprint and rigging, so the two mix in one array.
Two 12" low frequency drivers work with a single 1.4" exit large format Dual Concentric coaxial compression driver, externally bi-amped over two NLT4MP STX connectors. The enclosure is 15 mm marine birch plywood with an 18 mm front, vented and internally braced, in polyurethane black behind a powder coated steel grille, rated IP54, on a three point rigging system. The MAN-FG fly grid and MV212-VT are the matching accessories.
| Type | Dual 12" variable curvature line array element, external bi-amp |
|---|---|
| Frequency response (-3 dB) | 50 Hz - 20 kHz |
| Frequency response (-10 dB) | 35 Hz - 20 kHz |
| Nominal dispersion | 100 degrees H x 10 degrees V |
| Power handling (IEC) | LF 600 W continuous 2400 W peak, MHF 190 W continuous 760 W peak |
| Maximum SPL | 143 dB |
| Impedance | LF 8 ohms, MHF 12 ohms |
| Components | 2 x 12" (315 mm) LF drivers, 1 x 1.4" (35 mm) exit large format Dual Concentric coaxial compression driver |
| Connectors | 2 x speakON NLT4MP STX |
| IP rating | IP54 |
| Dimensions (H x W x D) | 354 x 810 x 490 mm (13.9" x 31.9" x 19.3") |
| Net weight | 50 kg (110.2 lbs) |
